Item # WRC 1250 AC
Wravor WRC 1250 AC Horizontal 50" Bandsaw Sawmill - WRC 1250 AC

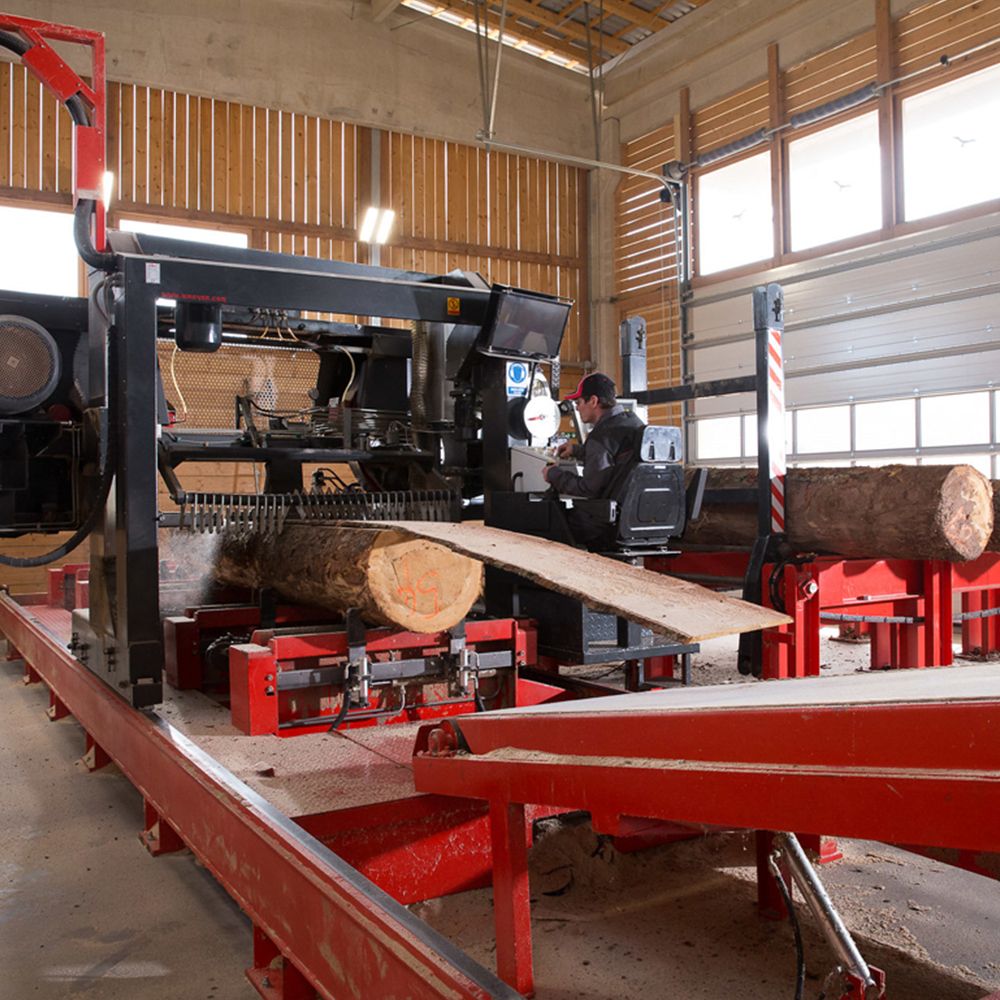

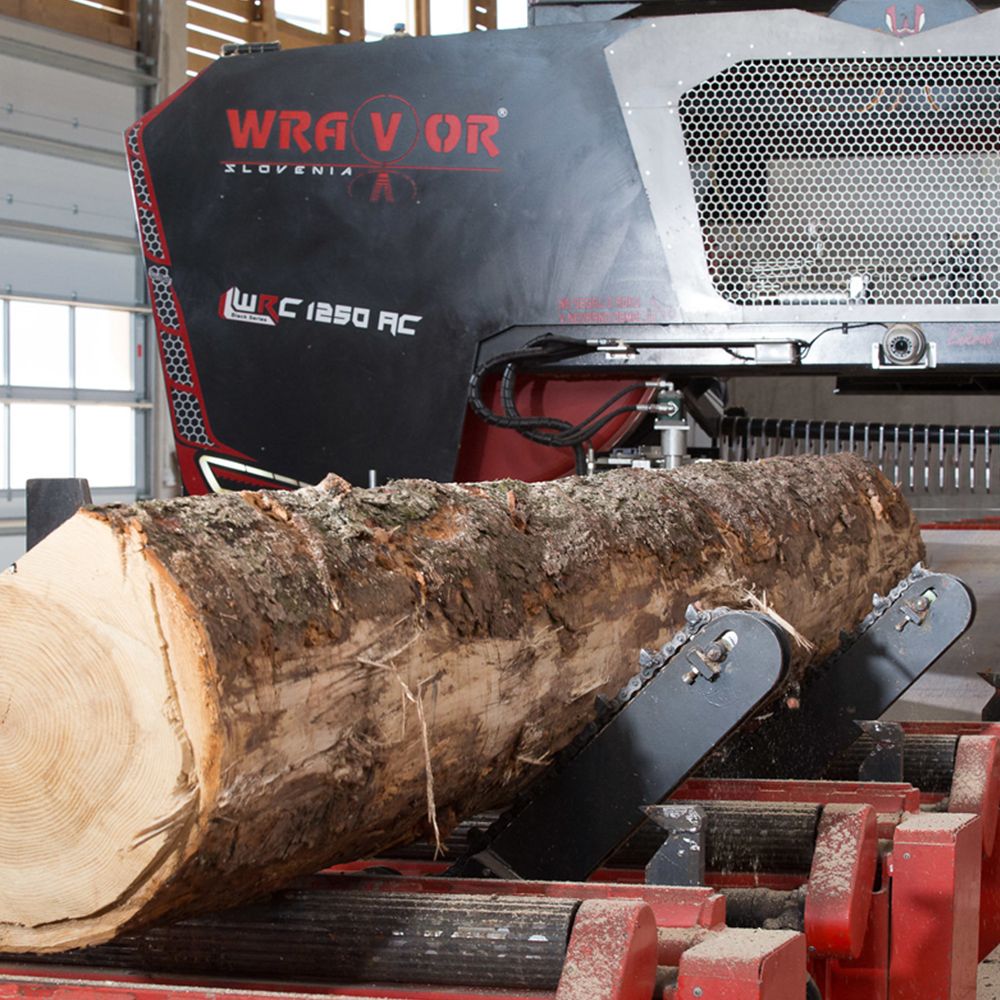

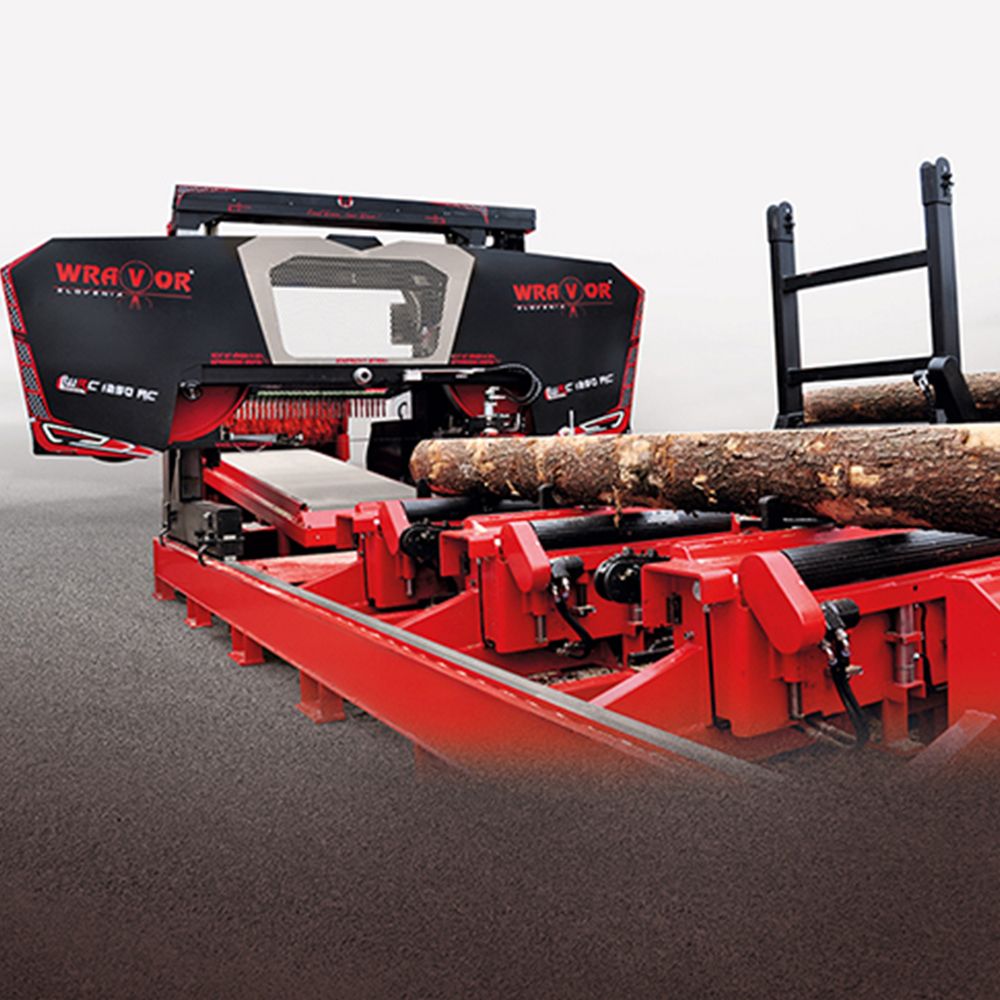

High production sawmills from Wravor. Wravor has been manufacturing sawmills since 1985, a testiment to their quality and reliability. The WRC 1225 AC horizontal bandsaw is part of the medium capacity sawmill line from Wravor. This sawmill runs a 6.3" bandsaw, capable of cutting logs up to a 49" diameter, but is recommended for logs 40" in diameter and smaller in high production settings. The headrig comes complete with computerized setworks, along with log turning hydraulics and a board feeding conveyor. This unit is usually accompanied with a chain feed log deck and multi blade edger to boost production. Made in Slovenia.
Wravor sawmills are made individually and exclusively imported to the U.S. by Bailey's. Lead times can be several months. For more information, please call our Wravor sawmill specialist Jim Haas at (530) 908-2466.
Wravor sawmills are made individually and exclusively imported to the U.S. by Bailey's. Lead times can be several months. For more information, please call our Wravor sawmill specialist Jim Haas at (530) 908-2466.
Recommended Log Diameter: Up to 40" (1,000mm)
Maximum Log Diameter: 49" (1,250mm)
Recommened Log Length: Up to 24ft (8m)
Bandsaw Size: 6.3" (160mm) Wide x 356" (9,045mm) Length
Bandsaw Teeth: Stellite with 0.11" (2.8mm) Kerf
Bandsaw Wheel Size: 5.3" (135mm) Wide x 49" (1,250mm) Diameter
Standard Main Motor Size: 74 hp (55 kW)
Electrical Supply: Main 3-Phase 460V, 150 Amps, Electronics 1-Phase 220V, 60 Hz
Typical Cutting Production: Up to 23,000 Board Feet (55 Cubic Meters) of 5/4 per 8 hour shift
Maximum Log Diameter: 49" (1,250mm)
Recommened Log Length: Up to 24ft (8m)
Bandsaw Size: 6.3" (160mm) Wide x 356" (9,045mm) Length
Bandsaw Teeth: Stellite with 0.11" (2.8mm) Kerf
Bandsaw Wheel Size: 5.3" (135mm) Wide x 49" (1,250mm) Diameter
Standard Main Motor Size: 74 hp (55 kW)
Electrical Supply: Main 3-Phase 460V, 150 Amps, Electronics 1-Phase 220V, 60 Hz
Typical Cutting Production: Up to 23,000 Board Feet (55 Cubic Meters) of 5/4 per 8 hour shift
Specs
Recommended Log Diameter: Up to 40" (1,000mm)
Maximum Log Diameter: 49" (1,250mm)
Recommened Log Length: Up to 24ft (8m)
Bandsaw Size: 6.3" (160mm) Wide x 356" (9,045mm) Length
Bandsaw Teeth: Stellite with 0.11" (2.8mm) Kerf
Bandsaw Wheel Size: 5.3" (135mm) Wide x 49" (1,250mm) Diameter
Standard Main Motor Size: 74 hp (55 kW)
Electrical Supply: Main 3-Phase 460V, 150 Amps, Electronics 1-Phase 220V, 60 Hz
Typical Cutting Production: Up to 23,000 Board Feet (55 Cubic Meters) of 5/4 per 8 hour shift
Maximum Log Diameter: 49" (1,250mm)
Recommened Log Length: Up to 24ft (8m)
Bandsaw Size: 6.3" (160mm) Wide x 356" (9,045mm) Length
Bandsaw Teeth: Stellite with 0.11" (2.8mm) Kerf
Bandsaw Wheel Size: 5.3" (135mm) Wide x 49" (1,250mm) Diameter
Standard Main Motor Size: 74 hp (55 kW)
Electrical Supply: Main 3-Phase 460V, 150 Amps, Electronics 1-Phase 220V, 60 Hz
Typical Cutting Production: Up to 23,000 Board Feet (55 Cubic Meters) of 5/4 per 8 hour shift
