Item # WRC 1225 AC

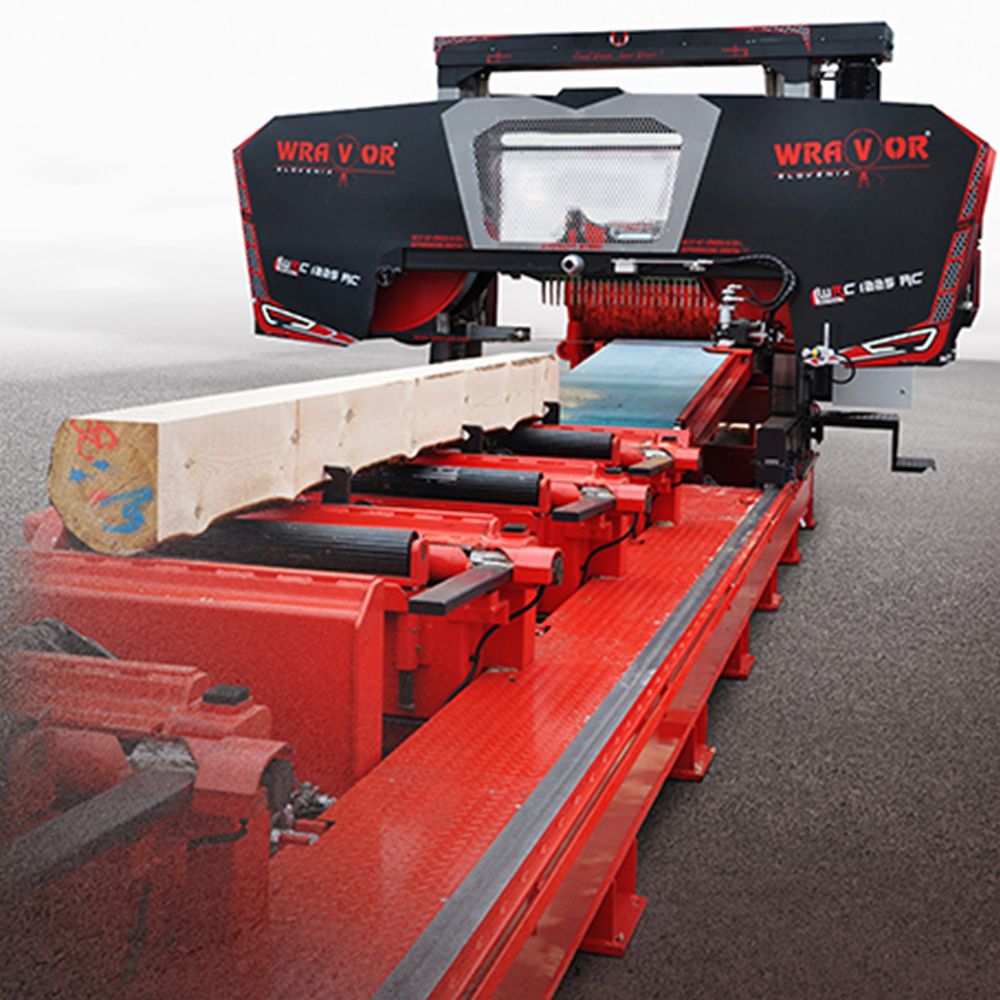

Wravor WRC 1225 AC Horizontal 50" Bandsaw Sawmill
High production sawmills from Wravor. Wravor has been manufacturing sawmills since 1985, a testiment to their quality and reliability. The model 1050 horizontal bandsaw is one of the smallest sawmill made by Wravor. This sawmill runs a 5" bandsaw, capable of cutting logs up to a 36" diameter and 24' long. The headrig comes complete with computerized setworks, along with log turning hydraulics and a board feeding conveyor. Accessories such as a chain feed log deck and edger are easily attached to the sawmill for additional production. Made in Slovenia.
Wravor sawmills are made individually and exclusively imported to the west coast by Bailey's. Lead times can be several months. For more information, please call our Wravor sawmill specialist Jim Haas at (530) 908-2466.
Wravor sawmills are made individually and exclusively imported to the west coast by Bailey's. Lead times can be several months. For more information, please call our Wravor sawmill specialist Jim Haas at (530) 908-2466.
Recommended Log Diameter: Up to 40" (1,000mm)
Maximum Log Diameter: 49" (1,250mm)
Recommened Log Length: Up to 24ft (8m)
Bandsaw Size: 5.9" (150mm) Wide x 342" (8,685mm) Length
Bandsaw Teeth: Stellite with 0.11" (2.8mm) Kerf
Bandsaw Wheel Size: 4.9" (125mm) Wide x 47" (1,200mm) Diameter
Standard Main Motor Size: 60 hp (45 kW)
Electrical Supply: Main 3-Phase 460V, 100 Amps, Electronics 1-Phase 220V, 60 Hz
Typical Cutting Production: Up to 18,000 Board Feet (43 Cubic Meters) of 4/4 per 8 hour shift
Maximum Log Diameter: 49" (1,250mm)
Recommened Log Length: Up to 24ft (8m)
Bandsaw Size: 5.9" (150mm) Wide x 342" (8,685mm) Length
Bandsaw Teeth: Stellite with 0.11" (2.8mm) Kerf
Bandsaw Wheel Size: 4.9" (125mm) Wide x 47" (1,200mm) Diameter
Standard Main Motor Size: 60 hp (45 kW)
Electrical Supply: Main 3-Phase 460V, 100 Amps, Electronics 1-Phase 220V, 60 Hz
Typical Cutting Production: Up to 18,000 Board Feet (43 Cubic Meters) of 4/4 per 8 hour shift
Specs
Recommended Log Diameter: Up to 40" (1,000mm)
Maximum Log Diameter: 49" (1,250mm)
Recommened Log Length: Up to 24ft (8m)
Bandsaw Size: 5.9" (150mm) Wide x 342" (8,685mm) Length
Bandsaw Teeth: Stellite with 0.11" (2.8mm) Kerf
Bandsaw Wheel Size: 4.9" (125mm) Wide x 47" (1,200mm) Diameter
Standard Main Motor Size: 60 hp (45 kW)
Electrical Supply: Main 3-Phase 460V, 100 Amps, Electronics 1-Phase 220V, 60 Hz
Typical Cutting Production: Up to 18,000 Board Feet (43 Cubic Meters) of 4/4 per 8 hour shift
Maximum Log Diameter: 49" (1,250mm)
Recommened Log Length: Up to 24ft (8m)
Bandsaw Size: 5.9" (150mm) Wide x 342" (8,685mm) Length
Bandsaw Teeth: Stellite with 0.11" (2.8mm) Kerf
Bandsaw Wheel Size: 4.9" (125mm) Wide x 47" (1,200mm) Diameter
Standard Main Motor Size: 60 hp (45 kW)
Electrical Supply: Main 3-Phase 460V, 100 Amps, Electronics 1-Phase 220V, 60 Hz
Typical Cutting Production: Up to 18,000 Board Feet (43 Cubic Meters) of 4/4 per 8 hour shift
