Item # WBE 750 20 160
Wravor Multiple Blade 6" Board Edger

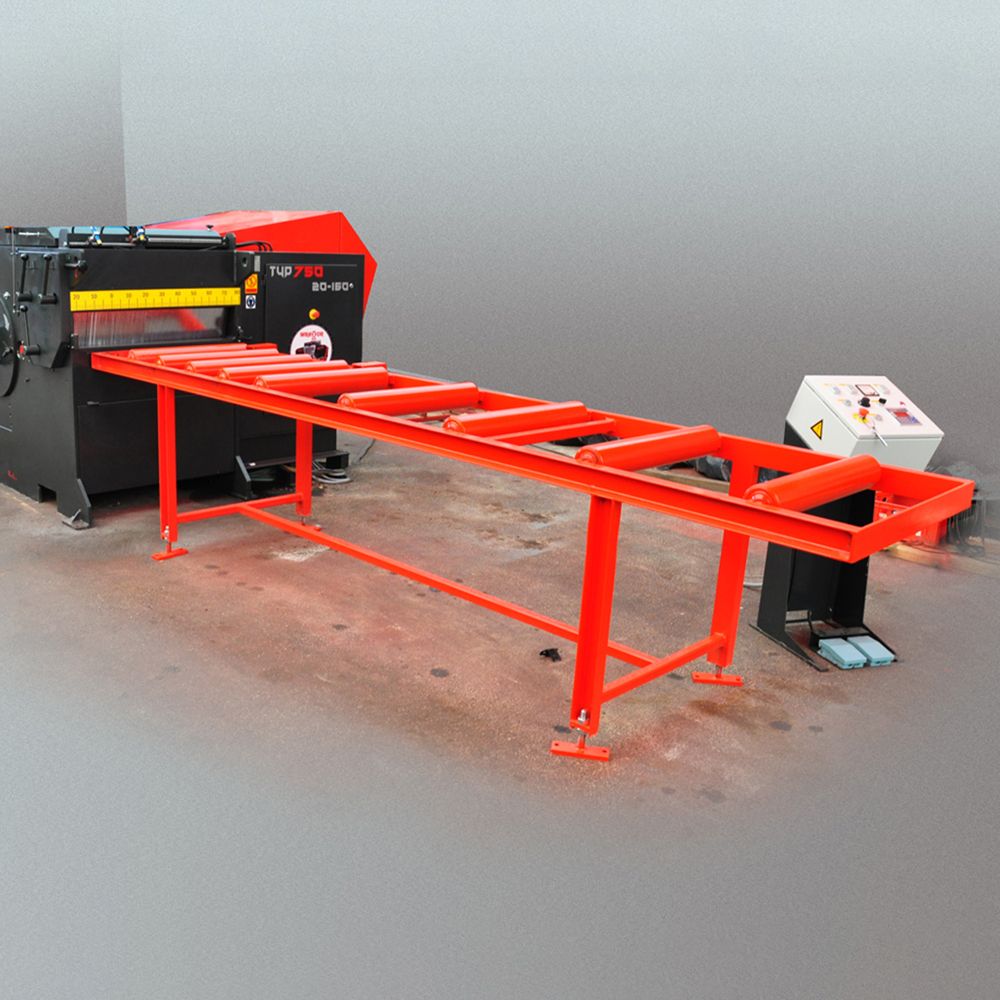

High production multi-rip edgers from Wravor. Wravor has been manufacturing sawmills and edgers since 1985, a testiment to their quality and reliability. The model 750-20-160 board edger is the largest single arbor edger made by Wravor. This edger is capable of ripping up to 6.3" thick lumber, and comes with one fixed blade and up to 4 moveable blades. You can also stack 4 other fixed blades on the arbor. Accessories such as computer setworks, laser guides, sawdust conveyor and board brushes can greatly improve production and clean-up. Made in Slovenia.
Wravor sawmills and edgers are made individually and exclusively imported to the U.S. by Bailey's. Lead times can be several months. For more information, please call our Wravor sawmill specialist Jim Haas at (530) 908-2466.
Wravor sawmills and edgers are made individually and exclusively imported to the U.S. by Bailey's. Lead times can be several months. For more information, please call our Wravor sawmill specialist Jim Haas at (530) 908-2466.
Maximum Lumber Thickness: 6.3" (160mm)
Minimum Lumber Thickness: 3/4" (20mm)
Maximum Lumber Width: 35.4-39-49" (900-1,000-1,250mm)
Circular Saw Size: 19.7" (500mm) Wide x 3.5" (90mm) Arbor
Circular Saw Teeth: Carbide with 0.16" (4.0mm) Kerf
Standard Main Motor Size: 60 hp (45 kW)
Electrical Supply: Main 3-Phase 460V, 100 Amps, Electronics 1-Phase 220V, 60 Hz
Minimum Lumber Thickness: 3/4" (20mm)
Maximum Lumber Width: 35.4-39-49" (900-1,000-1,250mm)
Circular Saw Size: 19.7" (500mm) Wide x 3.5" (90mm) Arbor
Circular Saw Teeth: Carbide with 0.16" (4.0mm) Kerf
Standard Main Motor Size: 60 hp (45 kW)
Electrical Supply: Main 3-Phase 460V, 100 Amps, Electronics 1-Phase 220V, 60 Hz
Specs
Maximum Lumber Thickness: 6.3" (160mm)
Minimum Lumber Thickness: 3/4" (20mm)
Maximum Lumber Width: 35.4-39-49" (900-1,000-1,250mm)
Circular Saw Size: 19.7" (500mm) Wide x 3.5" (90mm) Arbor
Circular Saw Teeth: Carbide with 0.16" (4.0mm) Kerf
Standard Main Motor Size: 60 hp (45 kW)
Electrical Supply: Main 3-Phase 460V, 100 Amps, Electronics 1-Phase 220V, 60 Hz
Minimum Lumber Thickness: 3/4" (20mm)
Maximum Lumber Width: 35.4-39-49" (900-1,000-1,250mm)
Circular Saw Size: 19.7" (500mm) Wide x 3.5" (90mm) Arbor
Circular Saw Teeth: Carbide with 0.16" (4.0mm) Kerf
Standard Main Motor Size: 60 hp (45 kW)
Electrical Supply: Main 3-Phase 460V, 100 Amps, Electronics 1-Phase 220V, 60 Hz
