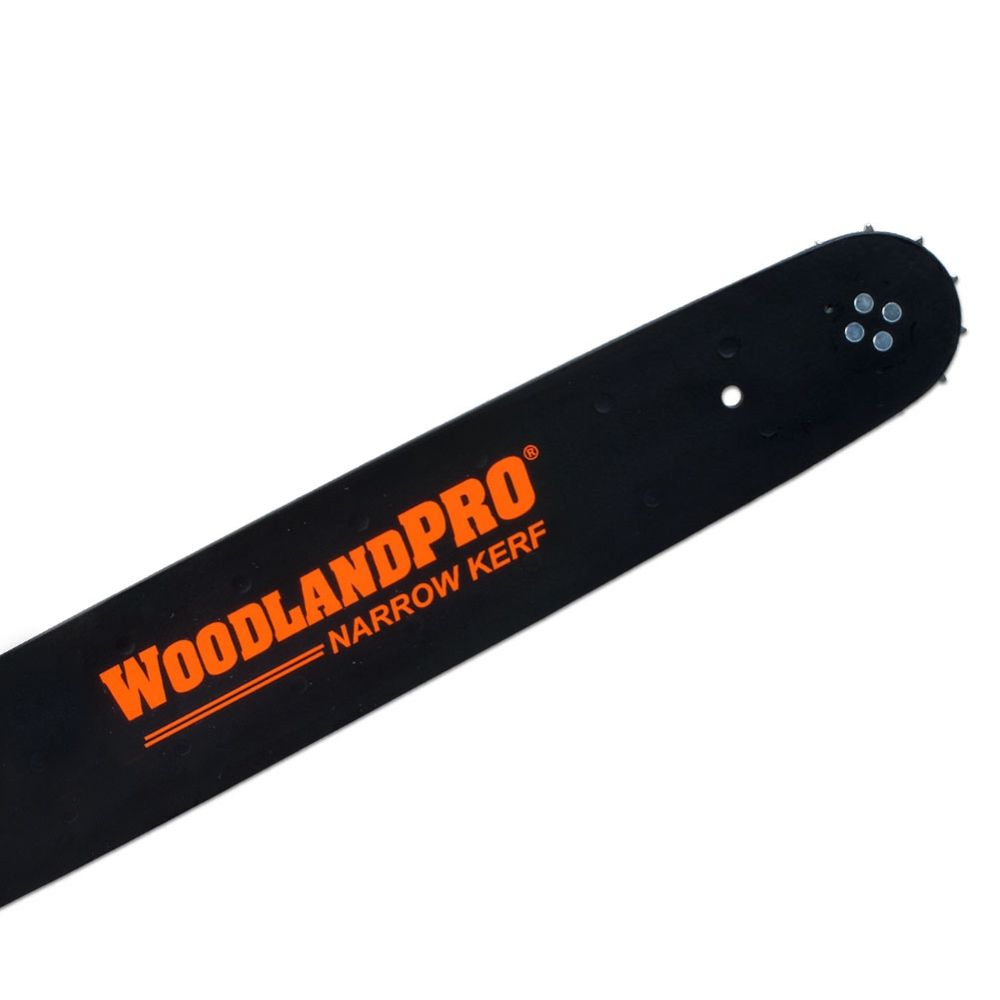

WoodlandPRO 18" Narrow Kerf Chainsaw Bar (72 DL) WPNK 18 UM50

SKU

WPNK 18 UM50

WoodlandPRO Narrow Kerf chainsaw bars are designed to take advantage of .325" pitch narrow kerf technology, which will give your chainsaw additional cutting performance as compared to a standard bar and chain. The bars are slightly thinner than standard chainsaw bars to match WoodlandPRO narrow kerf saw chain. It takes less power from the saw to make the same length of cut with a narrow-kerf bar/chain cutting system than with a standard bar and chain. These bars are made of three silicon manganese alloy steel plates that are electrically welded together. The center plate has been hollowed out to reduce weight. Rails are induction hardened for a long life. Sprocket nose tip contains high quality Swiss bearings and is held in place with 4 sturdy rivets.

$39.99

Specifications

More Information
Length	18" (45cm)
Pitch	.325"
Gauge	.050" (1.3mm) Narrow Kerf
Drive Link Count	72 Drive Links
Tooth Count	10 Teeth
Bar Mount	UM

Weight 1.50 lbs (0.7kg)
WARNING: This saw chain may be capable of kickback that could result in serious injury to the chainsaw operator or bystanders. Do not use this chain unless you have experience and specialized training for dealing with kickback. Saw chain with reduced kickback potential is available.

Fitment

This Item Fits the Following:

Dolmar	PS-5100, PS- 5100 S (.325" Pitch), PS-5105, PS-5105 H (.325" Pitch), PS-510 (.325" Pitch), PS-460 (.325" Pitch), PS-6100 (.325" Pitch)
Efco	147, 152, 962, 156 (.325" Pitch)
Fairmount Hydraulic	38568, 43177, 43178, HCS513, HCS516, HCS520, HPS513, Limblopper
Hitachi	CS40EA
Homelite	130, 150, 290, 300, 340, 150A0, CS50, d3350b
Husqvarna	33, 444, 140, 133, 137, 136, 142, 141, 260, 154, 238, 234, 261, 235, 240, 246, 242, 257, 254, 262 XP, 336, 340, 345, 346 XP, 350, 353, 351, 36, 38, 40, 41, 44, 42, 435, 440, 445, 45, 450, 450 Rancher, 49, 455, 455 Rancher, 50, 51, 55, 55 Rancher, 555, 560, 545, 550 XP, 339 XP, 543 XP
JohnDeere	CS46, CS52, CS56, CS62
Jonsered	45, 49, 50, 51, 52, 370, 410, 420, 425, 450, 451, 490, 510, 521, 525, 535, 590, 941, 2036 (.325 Pitch), 2040 (.325 Pitch), 2051 (.325 Pitch), 2054 (.325 Pitch), 2055 (.325 Pitch), 2063 (.325 Pitch), 2150 (.325 Pitch), 2159 (.325 Pitch), 2163 (.325 Pitch), 2050 (.325 Pitch), 2149 (.325 Pitch), CS 2153 (.325 Pitch), 435, 440 (.325 Pitch), 520SP, CS 2152 (.325 Pitch), 2045 (.325 Pitch), 2145 (.325 Pitch), 2141 (.325 Pitch), 2041 (.325 Pitch), CS 2040 (.325 Pitch), CS 2150 (.325 Pitch), CS 2147 (.325 Pitch), CS 2156 (.325 Pitch), CS 2159 (.325 Pitch), CS 2163 (.325 Pitch), CS 2250 (.325 Pitch), CS 2252 (.325 Pitch), CS 2253 (.325 Pitch), CS 2255 (.325 Pitch), CS 2258 (.325 Pitch), CS 2260 (.325 Pitch), CS 2240 (.325 Pitch), CS 2245 (.325 Pitch)
Makita	DCS430, DCS431, DCS520i, DCS6000i
Maruyama	D176-PL11, D176-PS11
McCulloch	46, 4700, 4900, 5000, 5500, 2046AV, 2049AV, MS1849, MS1850, MS2046, MS2049, MS2050, PM1845AV, ProMac 40, Silver Eagle 2818, Silver Eagle 3020, TimberBear20
Olympyk (Oleo‑Mac)	941, 945, 950, 951
Partner	410, 540, P-360, P-400, P-450, P-500, P-5000, PS-510 (.325)
Pioneer	1074, P-21, P-26, P-28
Poulan/PoulanPRO	325, 525, 235, 240 (.325 Pitch), S35
RedMax	G390, G450AVS, G455AVS
Sears/Craftsman	35084, 35201
Shindawa (SDK)	5000
Solo	613, 614, 631, 632, 638, 639, 641, 644, 645, 647, 650, 651, 651SP (.325" Pitch), 652 (.325" Pitch), 654 (.325" Pitch), 656 (.325" Pitch), 651SP
Stanley	CS05, CS06
Stihl	023, 025, MS 250, MS 241, MS 211, MS 231, MS 210, MS 230, MS 251
Tanaka	ECS-4000, ECS-4000B, ECS-415, ECS-4501, ECV-4501, ECV-5601, TCS 40EA
Troy Bilt	TB4620, TB4920, TB5018, TB5020
Echo	CS-400EVL (.325" Pitch), CS-440, CS-440EVL, CS-450, CS-450P, CS-500P (.325" Pitch), CS-520, CS-530, CS-550P (.325" Pitch)
