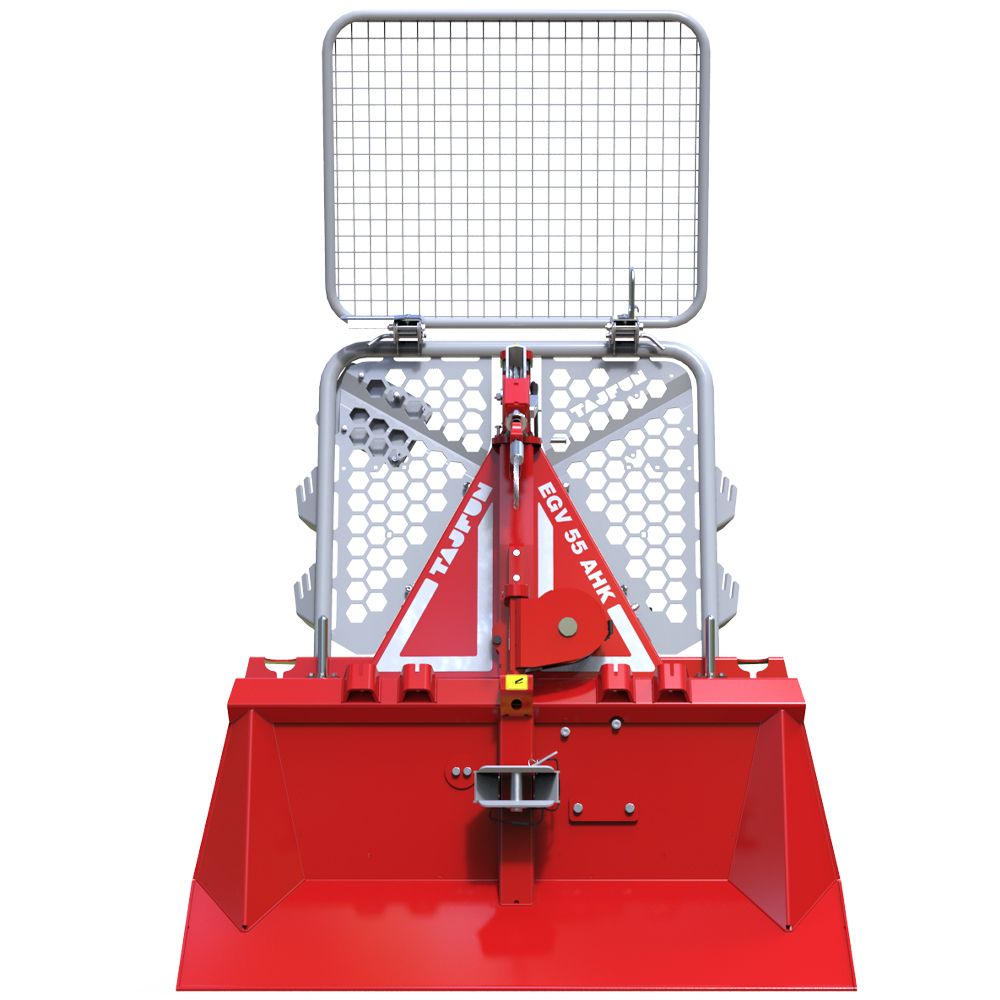

Tajfun EGV 55AHK Single Drum (12,250 lb) Hydraulic Logging Winch

SKU
TAF EGV 55AHK
Tajfun started developing and producing logging winches in 1979, and since then they have been constantly updating, upgrading, and developing new winches and parts. They have reliable and easy hydraulic (Type AHK winches) or Mechanical Control (Type A winches) Simple and fast installation to tractors three point mounting system. Robotic welded stable and robust construction. Made of high-quality steel, laser cut and powder coated stable drive with double bearing and double reduction gear (Winches from 45 to 100 kN) Highly efficient clutch Aativation, even with mechanical winches - short pull, low activation power.
Shipping Weight 785.0 lbs.

Please contact our Industrial Sales Group at 1-888-465-8227 for ordering and shipping information.

Pulling Power 12,250 lbs
Brake Power 15,500 lbs
Gear Ratio 1:8.89
Rope Velocity (at 540 min-1) 21.25"- 42.5"/s
Required Tractor Capacity 35 - 70 HP
Weight Without Wire Rope 785 lbs
Mounting I, II
Width 60"
Length 23"
Transport Height 61"
Overall Height 91"
Bottom Pulley Standard
Coupling Standard
Differential Brake Band Standard
