Item # TAF EGV 45AHK

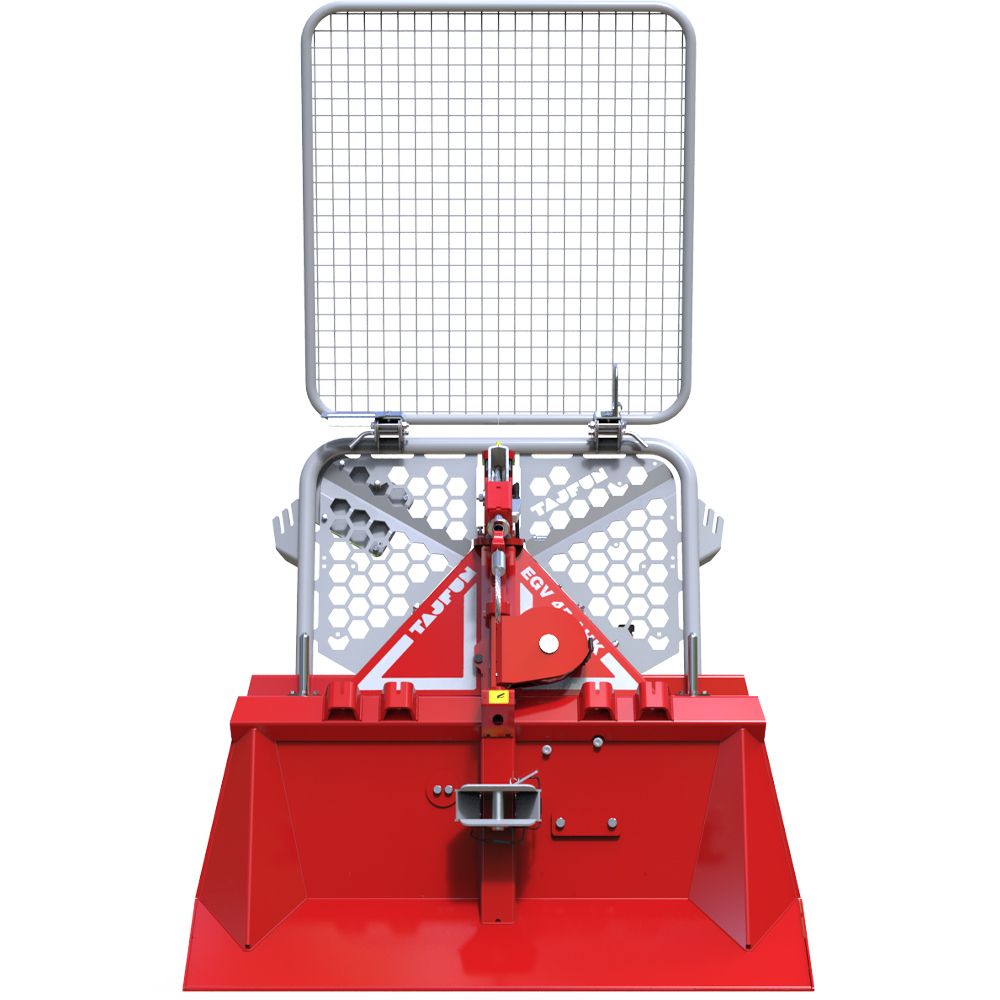

Tajfun EGV 45AHK Single Drum (10,000 lb) Hydraulic Logging Winch
Tajfun started developing and producing logging winches in 1979, and since then they have been constantly updating, upgrading, and developing new winches and parts. They have reliable and easy hydraulic (Type AHK winches) or Mechanical Control (Type A winches)
Simple and fast installation to tractors three point mounting system. Robotic welded stable and robust construction. Made of high-quality steel, laser cut and powder coated stable drive with double bearing and double reduction gear (Winches from 45 to 100 kN) Highly efficient clutch Aativation, even with mechanical winches - short pull, low activation power.
Pulling Power 10,000 lbs
Brake Power 12,500 lbs
Gear Ratio 1:8.89
Rope Velocity (at 540 min-1) 21.25"- 42.5"/s
Required Tractor Capacity 20-50 HP
Weight Without Wire Rope 772 lbs
Mounting I, II
Width 55"
Length 21"
Transport Height 54"
Overall Height 91"
Bottom Pulley Standard
Coupling Standard
Differential Brake Band Standard
Brake Power 12,500 lbs
Gear Ratio 1:8.89
Rope Velocity (at 540 min-1) 21.25"- 42.5"/s
Required Tractor Capacity 20-50 HP
Weight Without Wire Rope 772 lbs
Mounting I, II
Width 55"
Length 21"
Transport Height 54"
Overall Height 91"
Bottom Pulley Standard
Coupling Standard
Differential Brake Band Standard
