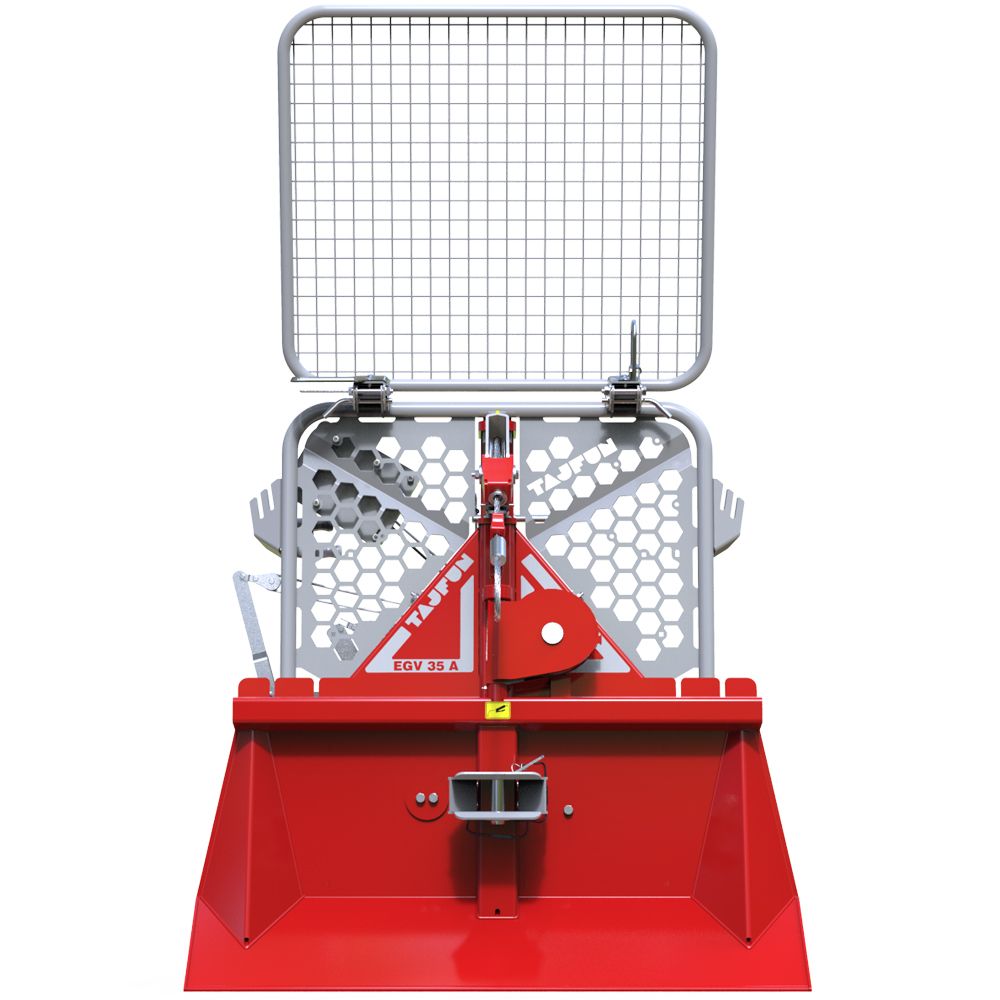

Tajfun EGV 35A Single Drum (7,900 lb) Mechanical Logging Winch
Item # TAF EGV 35A

Tajfun EGV 35A Single Drum (7,900 lb) Mechanical Logging Winch

Tajfun started developing and producing logging winches in 1979, and since then they have been constantly updating, upgrading, and developing new winches and parts. They have reliable and easy hydraulic (Type AHK winches) or Mechanical Control (Type A winches) Simple and fast installation to tractors three point mounting system. Robotic welded stable and robust construction. Made of high-quality steel, laser cut and powder coated stable drive with double bearing and double reduction gear (Winches from 45 to 100 kN) Highly efficient clutch Aativation, even with mechanical winches - short pull, low activation power.

    Pulling Power 7,900 lbs
    Brake Power 9,900 lbs
    Gear Ratio 1:7.5
    Rope Velocity (at 540 min-1) 24.75"- 46.5"/s
    Required Tractor Capacity 15 - 35 HP
    Weight Without Wire Rope 530 lbs
    Mounting I, II
    Width 48"
    Length 19.25"
    Transport Height 50"
    Overall Height 79"
    Bottom Pulley Standard
    Coupling Standard
    Differential Brake Band Standard

    Pulling Power 7,900 lbs
    Brake Power 9,900 lbs
    Gear Ratio 1:7.5
    Rope Velocity (at 540 min-1) 24.75"- 46.5"/s
    Required Tractor Capacity 15 - 35 HP
    Weight Without Wire Rope 530 lbs
    Mounting I, II
    Width 48"
    Length 19.25"
    Transport Height 50"
    Overall Height 79"
    Bottom Pulley Standard
    Coupling Standard
    Differential Brake Band Standard
