Item # QS 1129 640 2050

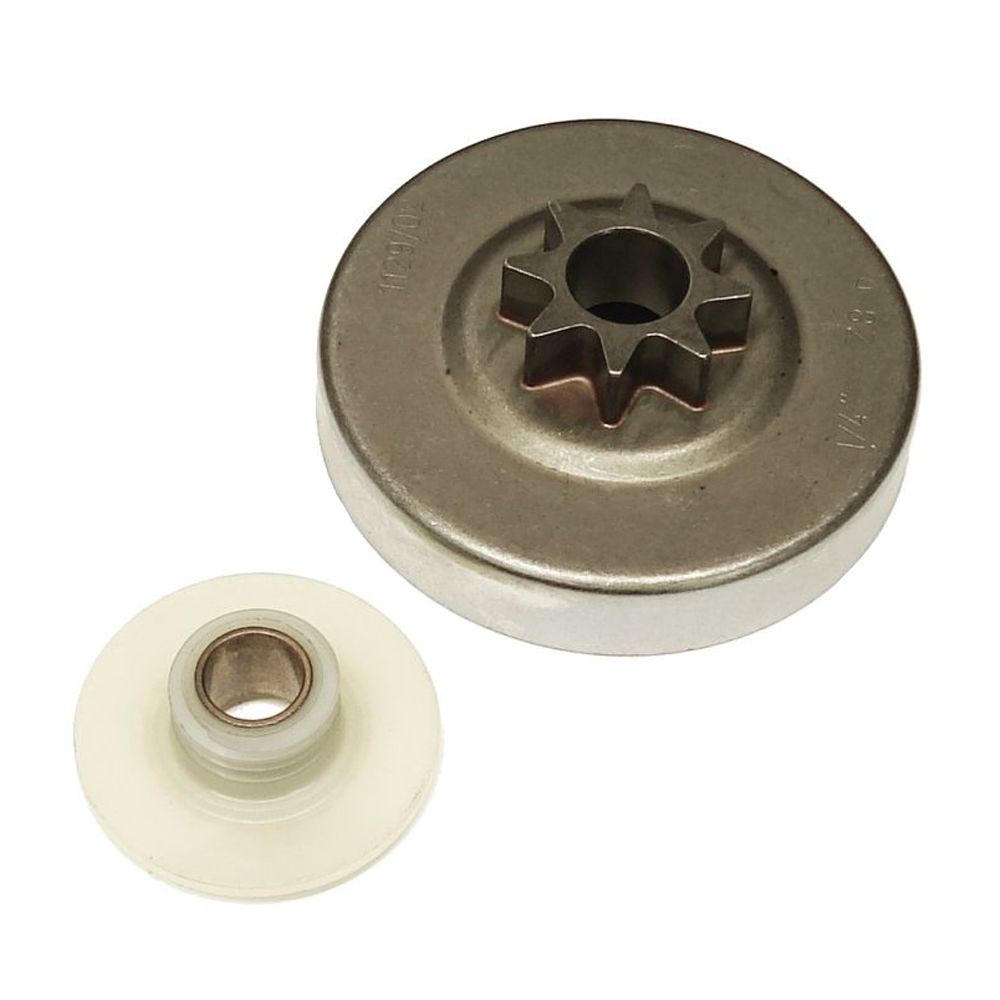

Stihl Spur Sprocket & Worm Gear (3/8" Low Profile x 7) for 020, 020T, MS200, MS200T Chainsaws
$42.99
OEM Spur Sprocket from Stihl. Spur chain sprockets are durable, economical, simple to use, and very popular. The chain driving portion of the sprocket and the clutch cup are fused together, so when it wears out, you need to replace the whole component. The economic design makes it popular for consumer chainsaws. Spur sprockets do not come with bearings, and we recommend replacing the bearing for every two spur sprocket replacements.
Fits the Following Chainsaw
Stihl 020*, 020T*, MC200*, MS200*, MS200T*
Note *These saws have an oiler worm gear that must match the spur sprocket. So if you are changing the pitch or teeth count of the sprocket, you must also change the worm gear.
Pitch 3/8" Low Profile (Picco)
Teeth 7
Bore 13mm (0.5118")
Bearing 10mm x 13mm x 13mm
Stihl 020*, 020T*, MC200*, MS200*, MS200T*
Note *These saws have an oiler worm gear that must match the spur sprocket. So if you are changing the pitch or teeth count of the sprocket, you must also change the worm gear.
Pitch 3/8" Low Profile (Picco)
Teeth 7
Bore 13mm (0.5118")
Bearing 10mm x 13mm x 13mm
Specs
Fits the Following Chainsaw
Stihl 020*, 020T*, MC200*, MS200*, MS200T*
Note *These saws have an oiler worm gear that must match the spur sprocket. So if you are changing the pitch or teeth count of the sprocket, you must also change the worm gear.
Pitch 3/8" Low Profile (Picco)
Teeth 7
Bore 13mm (0.5118")
Bearing 10mm x 13mm x 13mm
Stihl 020*, 020T*, MC200*, MS200*, MS200T*
Note *These saws have an oiler worm gear that must match the spur sprocket. So if you are changing the pitch or teeth count of the sprocket, you must also change the worm gear.
Pitch 3/8" Low Profile (Picco)
Teeth 7
Bore 13mm (0.5118")
Bearing 10mm x 13mm x 13mm
