Item # QS 0000 642 1236

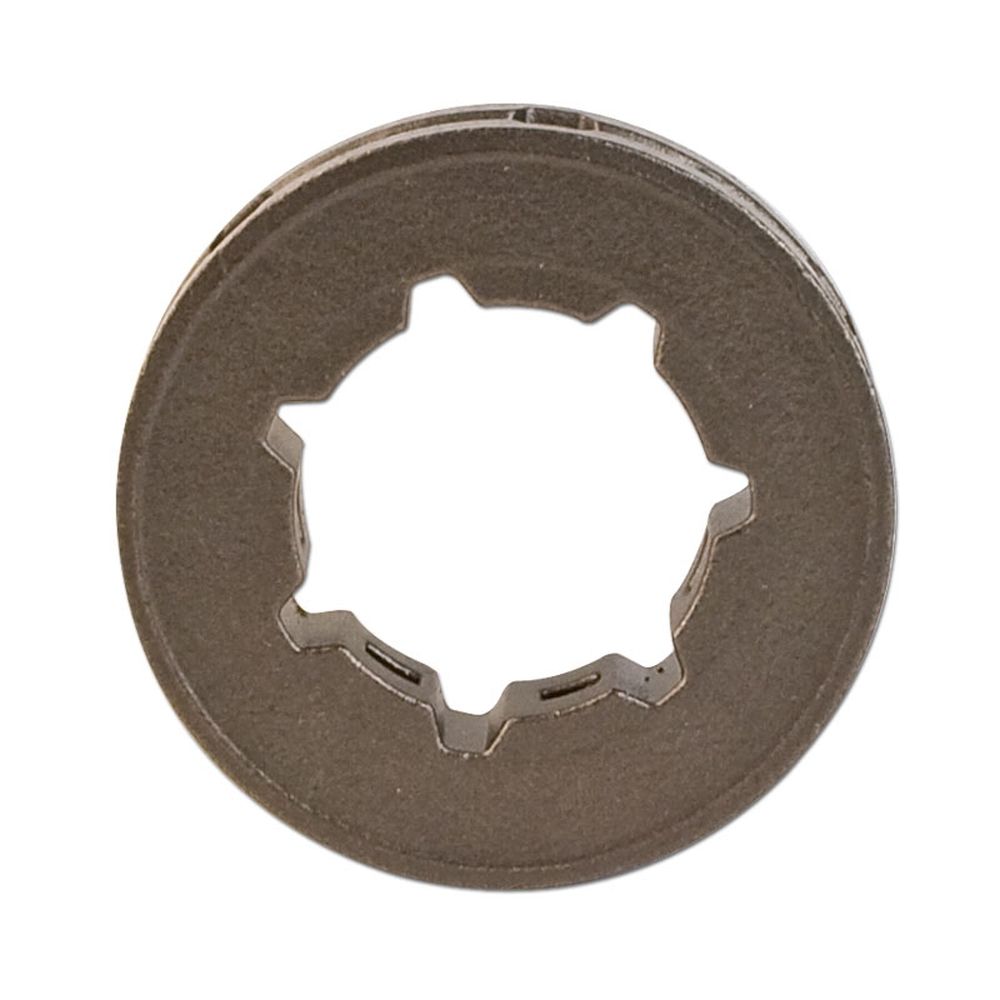

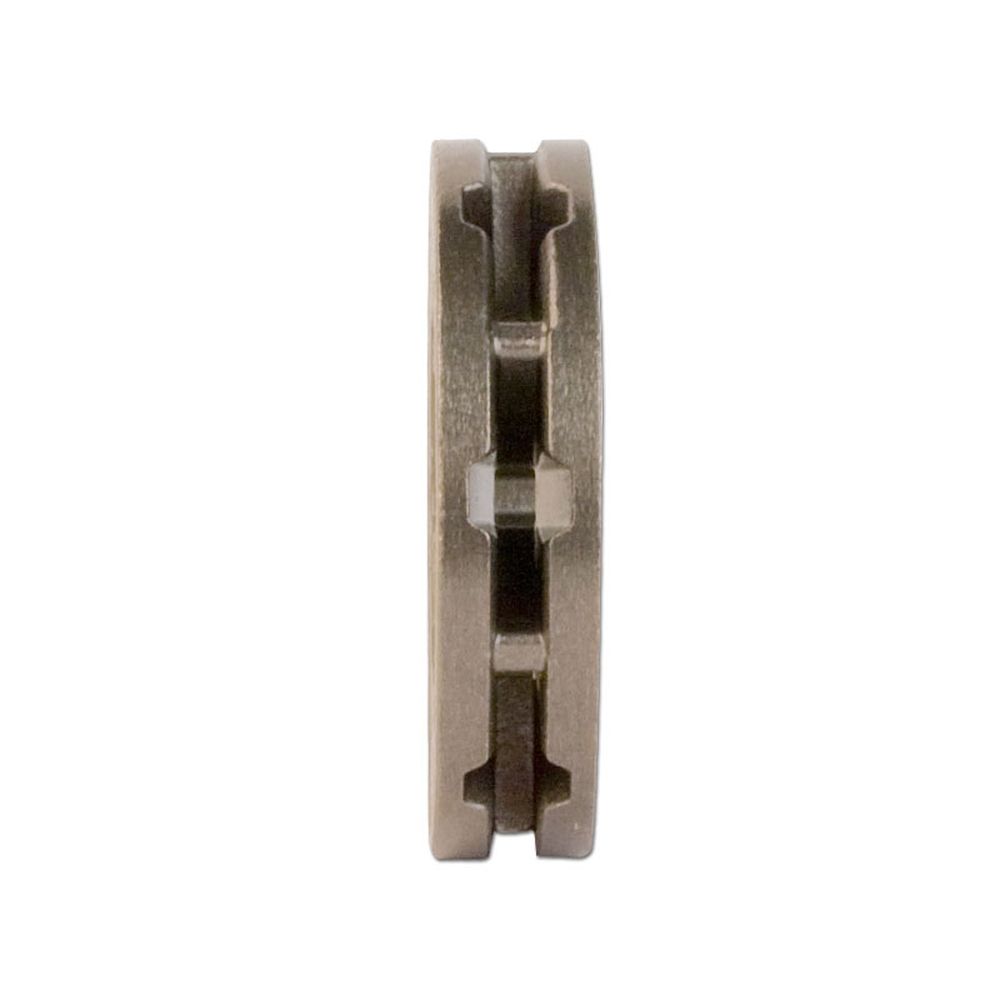

Stihl Chainsaw Rim Sprocket (.325" x 7 Tooth) Mini 7 Spline 0000 642 1236
$12.99
In Stock
OEM Rim Sprocket from Stihl. Rim sprockets float on the splined hub of the drum and move side to side, allowing the chain and rim to align with the bar as the chain travels around the bar's groove. The rim gets most of the sprocket wear, and by being replaceable, it extends the overall life and value of the sprocket system.
Fits the Following Chainsaw
Stihl 021, 023, 025, 026, 028, 029, 036, 039, MS210, MS210C, MS230, MS230C, MS231, MS231C, MS240, MS241C, MS250, MS250C, MS251, MS251C, MS260, MS260C, MS261, MS261C ,MS270, MS270C, MS280, MS280C, MS290, MS310, MS311, MS390, MS391
Pitch .325"
Teeth 7
Spline Size Mini 7 Spline (MS7)*
Bore 17mm (11/16")
Diameter 32mm (1-1/4")
Note *MS7 Mini 7 Spline Rims have an interior diameter of approximately 11/16" (less the splines) and will only fit clutch drums with that diameter bore. Please check before ordering.
Stihl 021, 023, 025, 026, 028, 029, 036, 039, MS210, MS210C, MS230, MS230C, MS231, MS231C, MS240, MS241C, MS250, MS250C, MS251, MS251C, MS260, MS260C, MS261, MS261C ,MS270, MS270C, MS280, MS280C, MS290, MS310, MS311, MS390, MS391
Pitch .325"
Teeth 7
Spline Size Mini 7 Spline (MS7)*
Bore 17mm (11/16")
Diameter 32mm (1-1/4")
Note *MS7 Mini 7 Spline Rims have an interior diameter of approximately 11/16" (less the splines) and will only fit clutch drums with that diameter bore. Please check before ordering.
