Stihl Piston & Cylinder Assembly (52mm) for MS461 Chainsaws 1128 020 1250
Stihl Piston & Cylinder Assembly (52mm) for MS461 Chainsaws 1128 020 1250
Stihl Piston & Cylinder Assembly (52mm) for MS461 Chainsaws 1128 020 1250
Stihl Piston & Cylinder Assembly (52mm) for MS461 Chainsaws 1128 020 1250
Item # QS 1128 020 1250

Stihl Piston & Cylinder Assembly (52mm) for MS461 Chainsaws 1128 020 1250

$361.99
In Stock

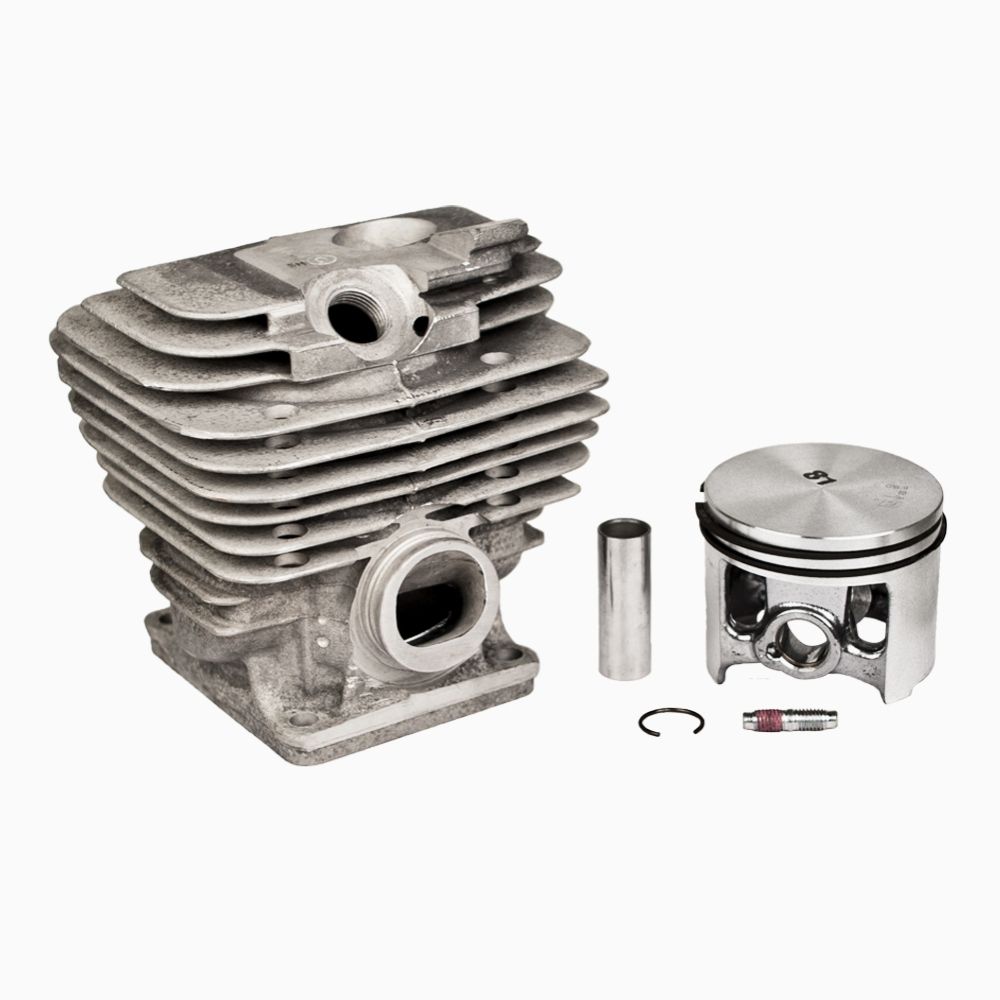

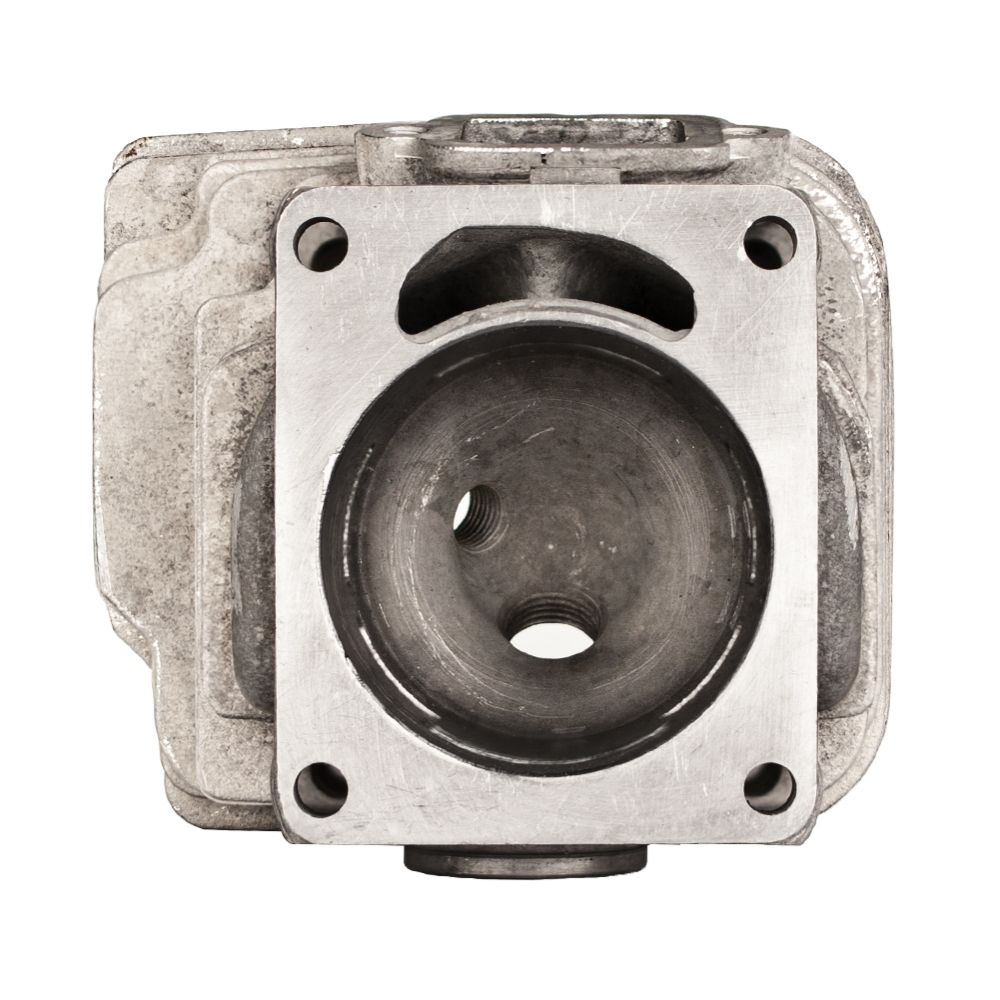

OEM cylinder assembly from Stihl. Includes a piston (QS 1128 030 2051), 2 rings (QS 1122 034 3000), piston pin (QS 1128 034 1501), circlips (QS 9463 650 1200), stud (QS 0000 953 0807) and cylinder. Gasket (QS 1125 149 0601) and compression valve (QS 1128 020 9400) are sold separately. We recommend using a piston ring clamp set when changing cylinders.

    Fits the Following Chainsaws & Concrete Cutters
    Stihl MS46, GS461
    Replaces Part Number 1128 020 1250
    Bore 52mm
    Stroke 36mm
    Displacement 76.5cc
    Rings 52mm x 1.2mm

    Fits the Following Chainsaws & Concrete Cutters
    Stihl MS46, GS461
    Replaces Part Number 1128 020 1250
    Bore 52mm
    Stroke 36mm
    Displacement 76.5cc
    Rings 52mm x 1.2mm
