Item # QS 1128 020 1227

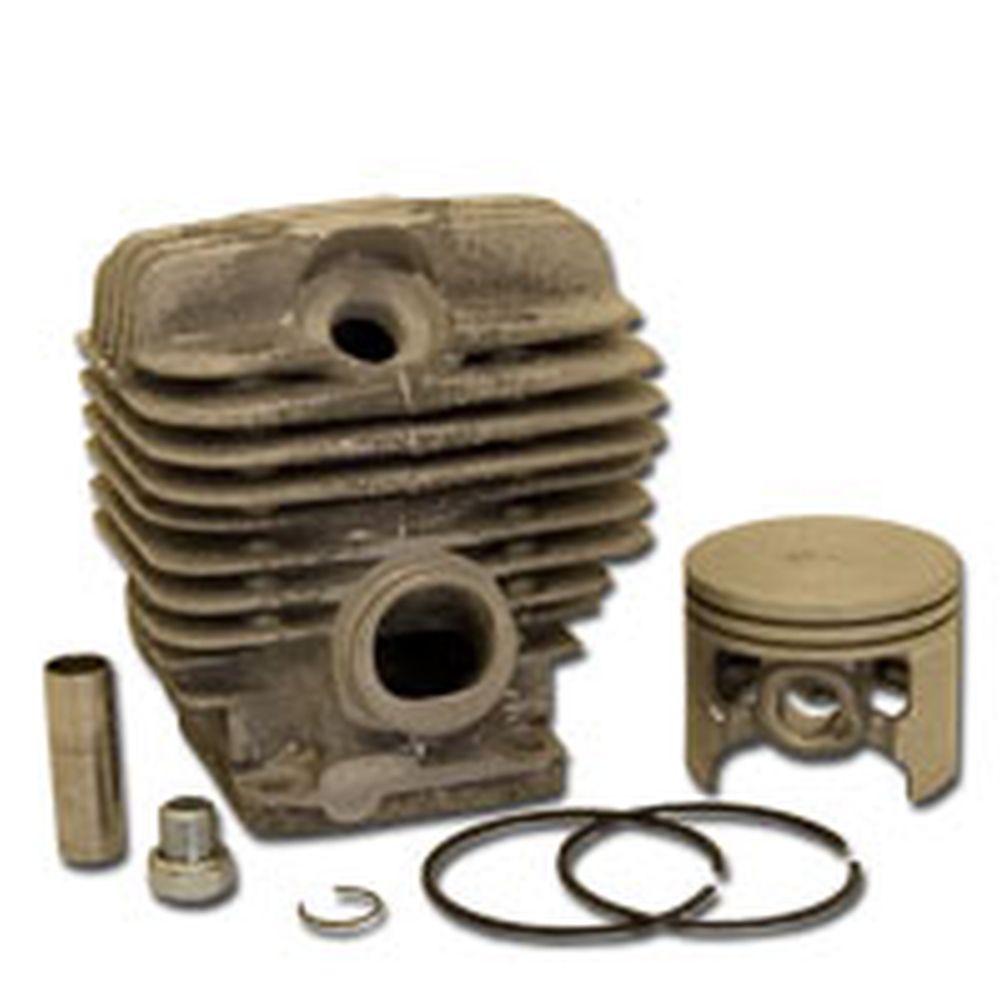

Stihl Piston & Cylinder Assembly (50mm) for 044, MS440 Chainsaws 1128 020 1227
$349.99
In Stock
OEM Cylinder Assembly from Stihl. Includes a piston, rings, piston pin, compression release plug, circlips and cylinder. Gaskets and compression valve are sold separately. We recommend using a piston ring clamp set when changing cylinders.
Fits the Following Chainsaws
Stihl 044 (After Serial # X 29 382 283) MS440
Note This will not fit older 044 chainsaws made before serial # 29 382 283 that have a 10mm wrist pin. Be sure to check your serial # before ordering. For the 10mm kit see CKN 044.
Replaces Part Number 0000 120 1654
Bore 50mm
Stroke 36mm
Displacement 70.7cc
Rings 50mm x 1.2mm
Stihl 044 (After Serial # X 29 382 283) MS440
Note This will not fit older 044 chainsaws made before serial # 29 382 283 that have a 10mm wrist pin. Be sure to check your serial # before ordering. For the 10mm kit see CKN 044.
Replaces Part Number 0000 120 1654
Bore 50mm
Stroke 36mm
Displacement 70.7cc
Rings 50mm x 1.2mm
