Item # M1K404T

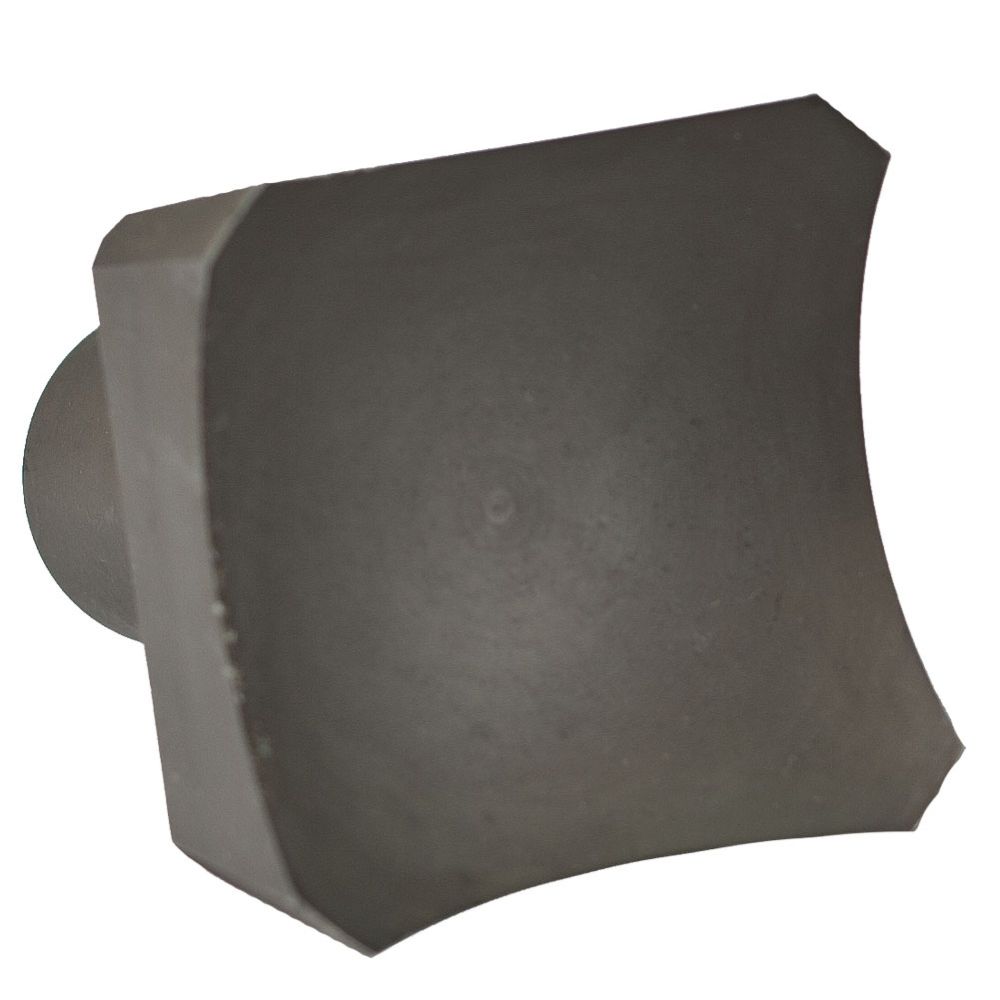

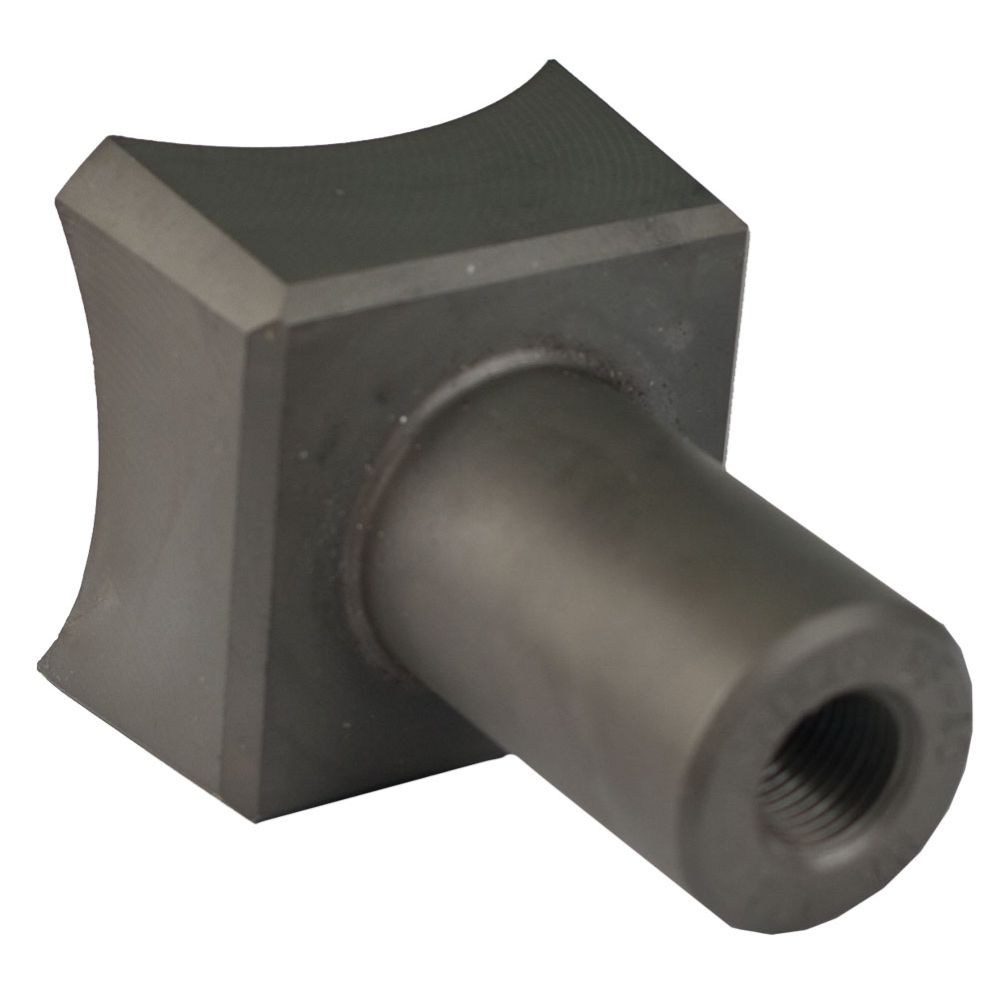

Quadco 2-5/16" Hot Saw Cutter Tooth (Concave)
$29.99
In Stock
Quadco saw teeth have become the industry standard around the world. Quadco saw teeth are made from high grade alloy steel, heat treated to the highest Rockwell rating on the market without becoming brittle. Concave saw teeth are very efficient in non-impact harvesting applications (no rocks or gravel). This is a single piece saw tooth, so the shank is built into the tooth. Quadco Saw Teeth are only available in the USA.

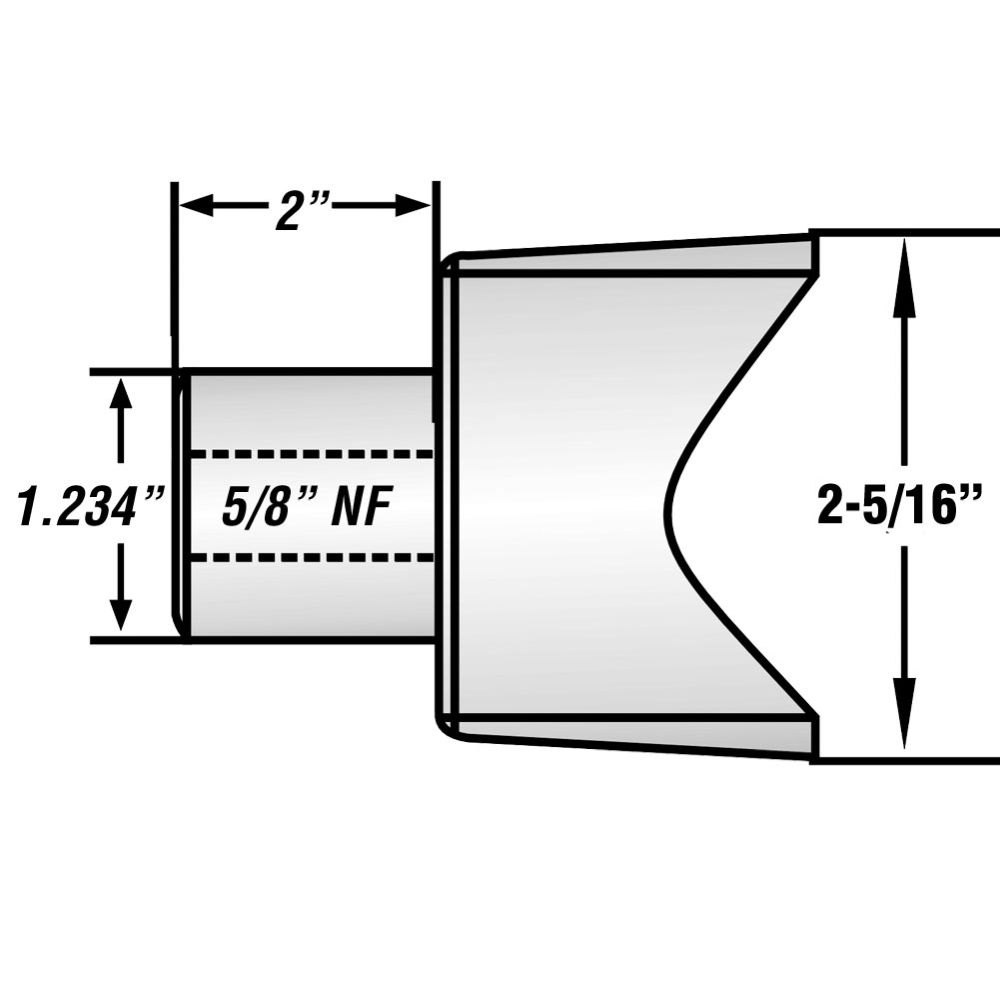

Tooth Type Concave (Single Piece)
Tooth Kerf 2-5/16" (58.7mm)
Shank Diameter 1.234" (31.3mm)
Shank Length 2" (50.8mm)
Bolt Diameter 5/8" (NF Thread)
Thread Length 1-1/2" (NF Thread)
Bolt Torque Settings 150 ft/lbs
Standard Bolt Size* 5/8" x 2-1/4" (NF Thread)
*Standard bolt sizes are stated for Koehring and John Deere holders and discs. Bolt sizes may vary for other holders and manufactures, due to different holder specifications.
Tooth Kerf 2-5/16" (58.7mm)
Shank Diameter 1.234" (31.3mm)
Shank Length 2" (50.8mm)
Bolt Diameter 5/8" (NF Thread)
Thread Length 1-1/2" (NF Thread)
Bolt Torque Settings 150 ft/lbs
Standard Bolt Size* 5/8" x 2-1/4" (NF Thread)
*Standard bolt sizes are stated for Koehring and John Deere holders and discs. Bolt sizes may vary for other holders and manufactures, due to different holder specifications.
