Item # Q10001T

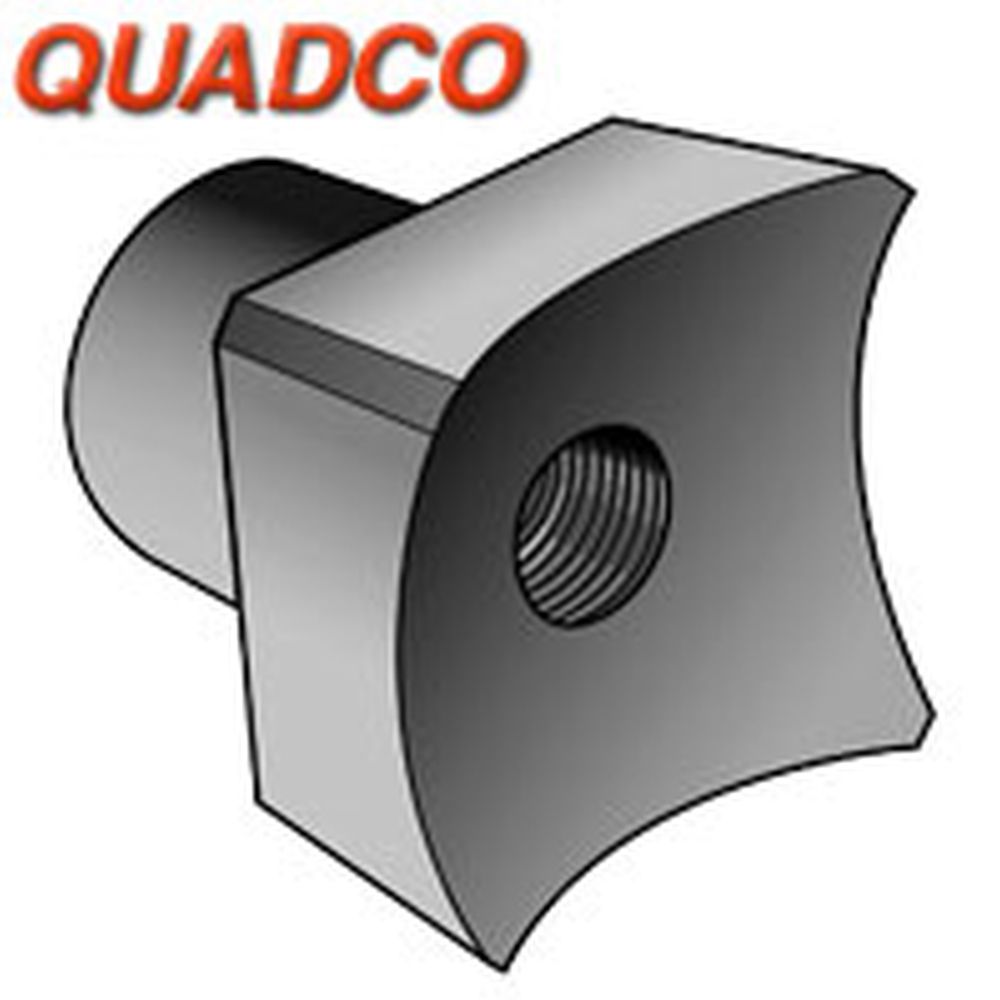

Quadco 2-1/4" Hot Saw Cutter Tooth (Concave) Q10001T
$26.99
Quadco saw teeth have become the industry standard around the world. Quadco saw teeth are made from high grade alloy steel, heat treated to the highest Rockwell rating on the market without becoming brittle. Concave saw teeth are very efficient in non-impact harvesting applications (no rocks or gravel). This is a single piece saw tooth, so the shank is built into the tooth.
Quadco Saw Teeth are only available in the U.S.A.
Quadco Saw Teeth are only available in the U.S.A.

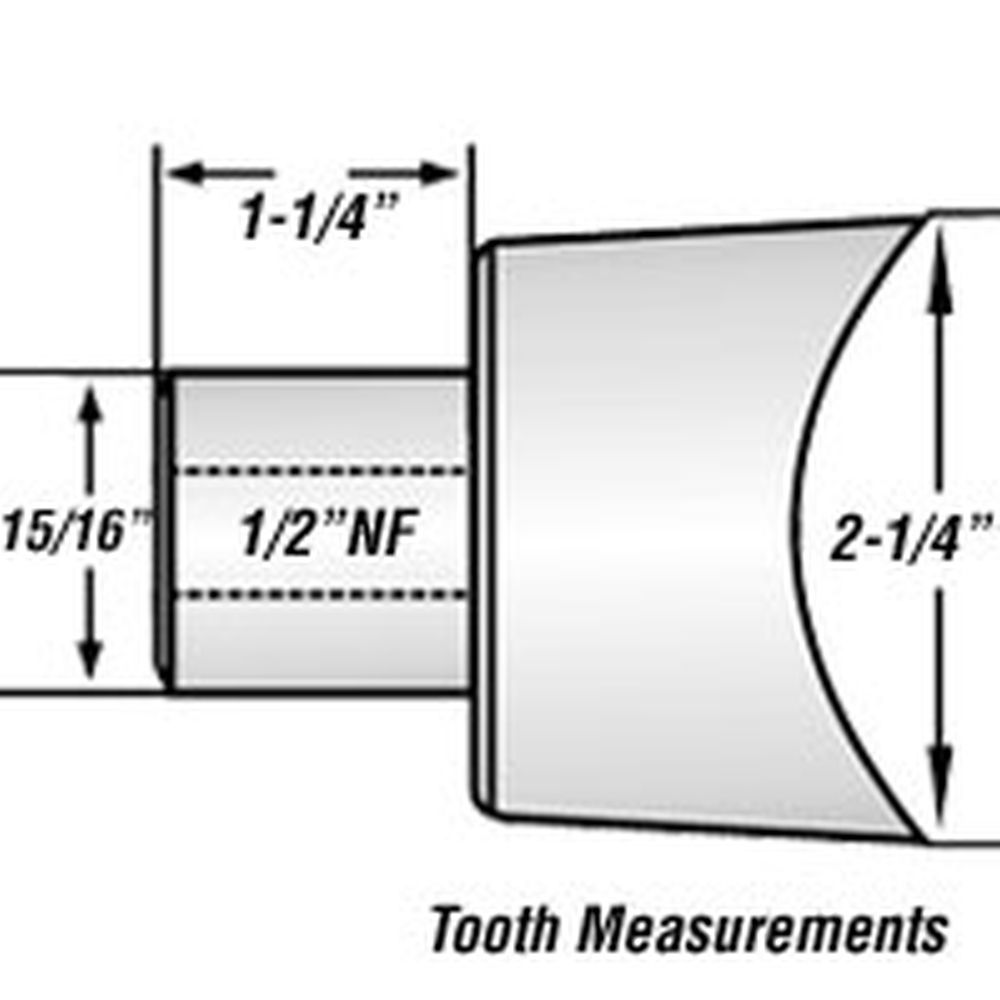

Tooth Type Concave (Single Piece)
Tooth Kerf 2-1/4" (57.2mm)
Shank Diameter 1-1/4" (31.8mm)
Shank Length 15/16" (23.8mm)
Bolt Diameter 1/2" (NF Thread)
Thread Length 1-3/8" (NF Thread)
Bolt Torque Settings 90 ft/lbs
Standard Bolt Size* 1/2" x 3" (NF Thread)
*Standard bolt sizes are stated for Quadco holders and discs. Bolt sizes may vary for other holders and manufactures, due to different holder specifications.
Tooth Kerf 2-1/4" (57.2mm)
Shank Diameter 1-1/4" (31.8mm)
Shank Length 15/16" (23.8mm)
Bolt Diameter 1/2" (NF Thread)
Thread Length 1-3/8" (NF Thread)
Bolt Torque Settings 90 ft/lbs
Standard Bolt Size* 1/2" x 3" (NF Thread)
*Standard bolt sizes are stated for Quadco holders and discs. Bolt sizes may vary for other holders and manufactures, due to different holder specifications.
Specs
Tooth Type Concave (Single Piece)
Tooth Kerf 2-1/4" (57.2mm)
Shank Diameter 1-1/4" (31.8mm)
Shank Length 15/16" (23.8mm)
Bolt Diameter 1/2" (NF Thread)
Thread Length 1-3/8" (NF Thread)
Bolt Torque Settings 90 ft/lbs
Standard Bolt Size* 1/2" x 3" (NF Thread)
*Standard bolt sizes are stated for Quadco holders and discs. Bolt sizes may vary for other holders and manufactures, due to different holder specifications.
