Item # PCW4000A
Portable Gas Powered Capstan Pulling Winch GXH50 PCW4000 w/Accessories
$1,989.99
The PCW4000 features a centrifugal clutch that activates when you pull the rope. The more you pull, the more throttle you give. When the tension on the rope is released, the drum stops spinning and the Progress Capture System (PCS) holds the load flawlessly in position. A simple lateral movement is all it takes to disengage the rope, making it easy to secure and easy to release.
This model is powered by the 360° inclinable Honda GX50 4-stroke engine, 49-state compliant, delivering smooth performance and reliability with a remarkable pulling force of 2,200 lb (1,000 kg). By adding a pulley system with two double pulleys, the pulling capacity can be increased up to five times, for a total of 11,000 lb (5,000 kg).
Like all Portable Winch capstan winches, the PCW4000 offers unlimited pulling distance thanks to the capstan principle.
It operates on unleaded gasoline (86 octane or higher) and features a centrifugal clutch with a 76 mm drum diameter. Proudly made in Canada.
Note: The PCS cannot be installed on other pulling winches because those models do not feature a centrifugal clutch. On the PCW4000, the PCS also functions as the throttle, a design that cannot be replicated on direct-shaft winches.
California Notice: As per California Assembly Bill 1346, small gas-powered equipment is restricted in California. EPA CoC #SHNXPHHEQ36A-025.
This model is powered by the 360° inclinable Honda GX50 4-stroke engine, 49-state compliant, delivering smooth performance and reliability with a remarkable pulling force of 2,200 lb (1,000 kg). By adding a pulley system with two double pulleys, the pulling capacity can be increased up to five times, for a total of 11,000 lb (5,000 kg).
Like all Portable Winch capstan winches, the PCW4000 offers unlimited pulling distance thanks to the capstan principle.
It operates on unleaded gasoline (86 octane or higher) and features a centrifugal clutch with a 76 mm drum diameter. Proudly made in Canada.
Note: The PCS cannot be installed on other pulling winches because those models do not feature a centrifugal clutch. On the PCW4000, the PCS also functions as the throttle, a design that cannot be replicated on direct-shaft winches.
California Notice: As per California Assembly Bill 1346, small gas-powered equipment is restricted in California. EPA CoC #SHNXPHHEQ36A-025.

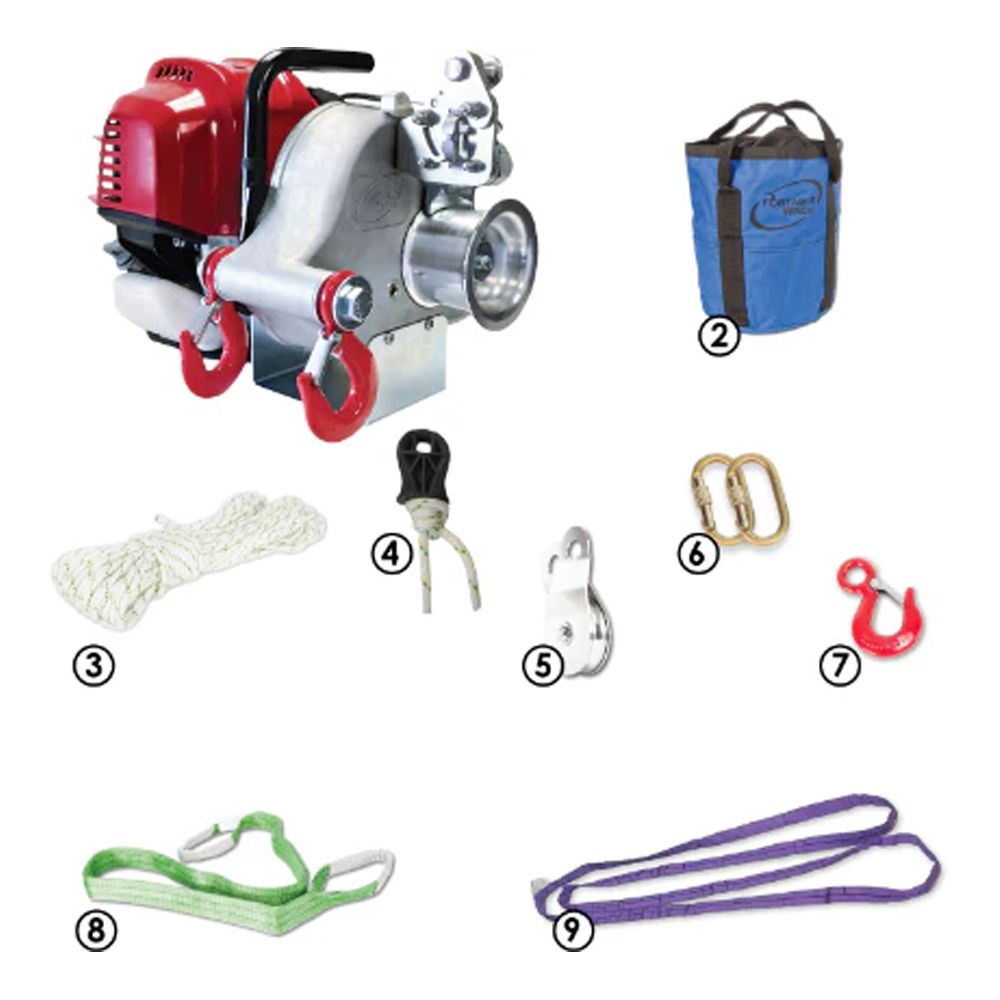

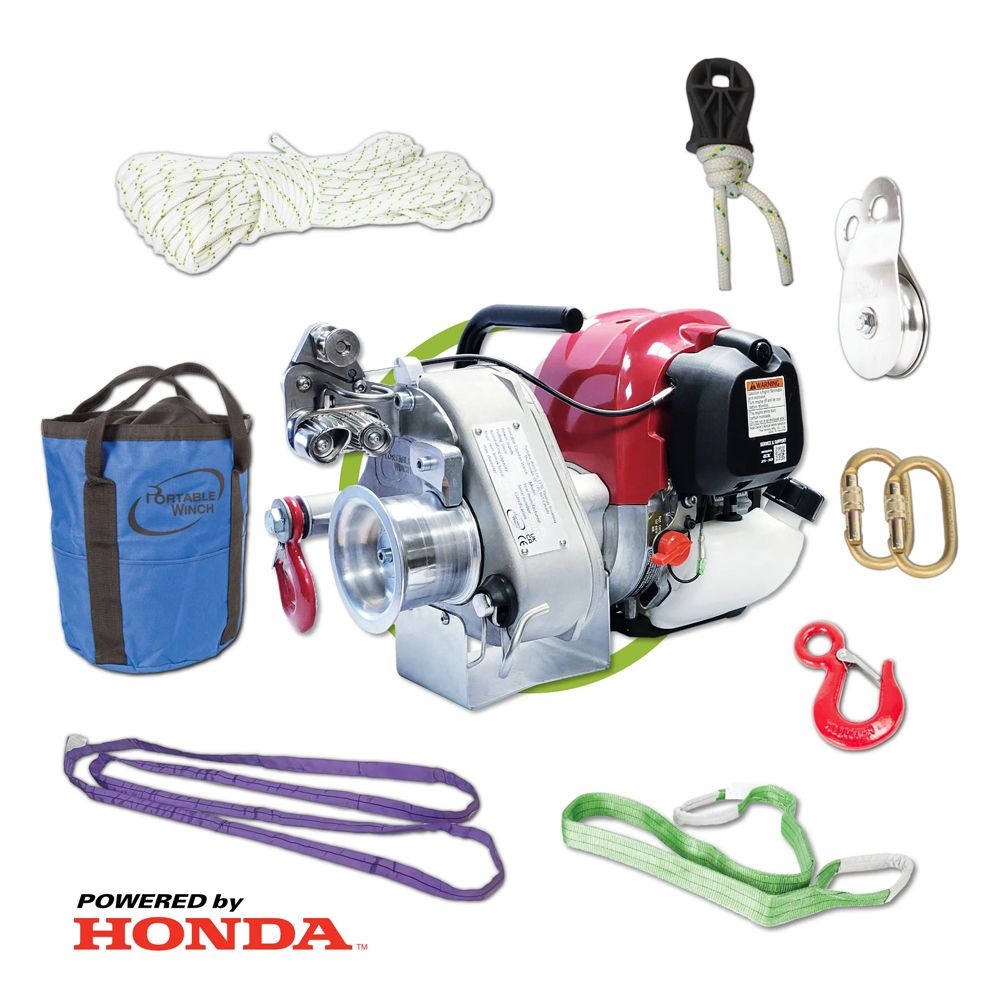

- Rope bag to store and carry your rope
- 50 m (164 ft) rope for smooth pulling operations
- RopeWizer™ - The Easy Splice to retain nearly 100% of the capacity of your rope and easily attach the carabiner
- Single pulley to either deviate the pull angle or double the power of the winch
- 2 steel locking carabiners; one to link the pulley to the sling and one for the end of your rope
- Safety hook with latch to place at the end of the rope for easy attachment to the load
- 2 m (6½ ft) polyester sling to attach the pulley to a tree or anchor point
- 2.5 m (8¼ ft) round polyester sling to anchor the winch wherever needed
The PCW4000 kit includes the following accessories:
Specs
- Rope bag to store and carry your rope
- 50 m (164 ft) rope for smooth pulling operations
- RopeWizer™ - The Easy Splice to retain nearly 100% of the capacity of your rope and easily attach the carabiner
- Single pulley to either deviate the pull angle or double the power of the winch
- 2 steel locking carabiners; one to link the pulley to the sling and one for the end of your rope
- Safety hook with latch to place at the end of the rope for easy attachment to the load
- 2 m (6½ ft) polyester sling to attach the pulley to a tree or anchor point
- 2.5 m (8¼ ft) round polyester sling to anchor the winch wherever needed
The PCW4000 kit includes the following accessories:
