Item # ORF 11892

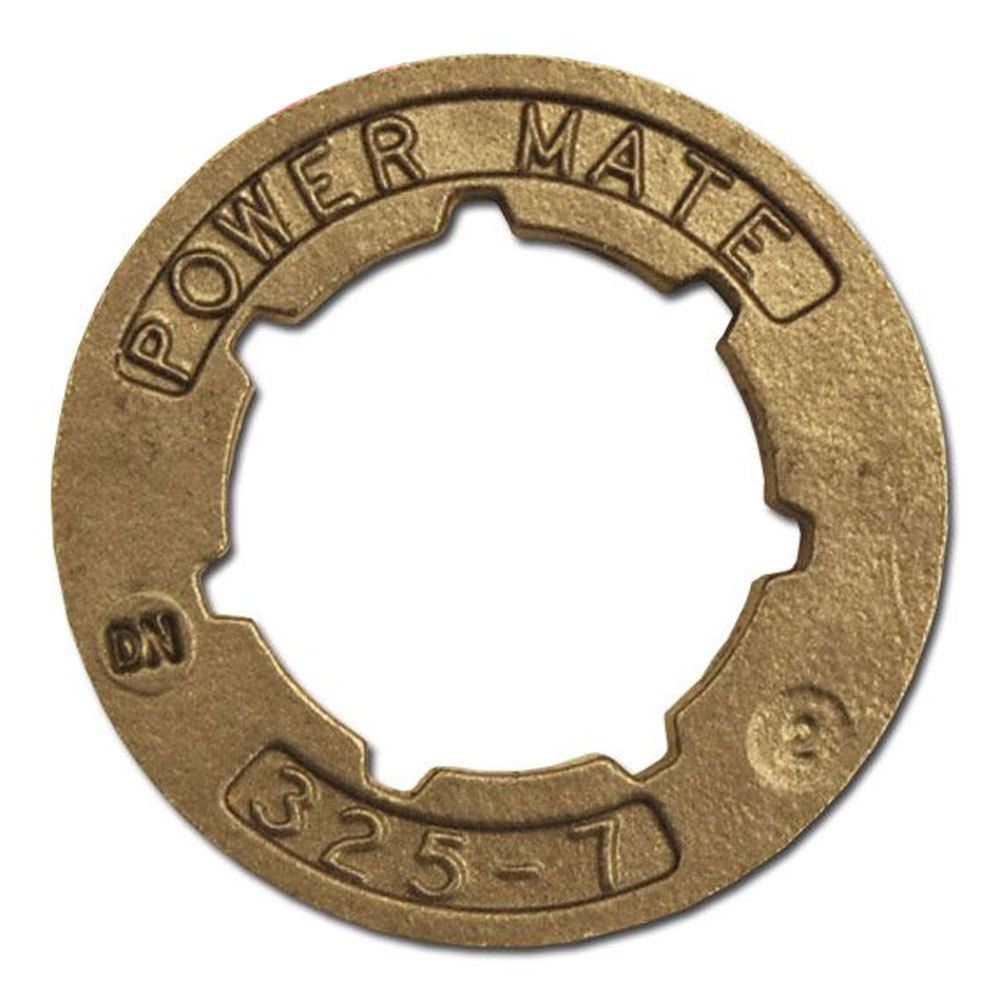

Oregon Power Mate Rim Sprocket (.325" x 7 Tooth) Small Spline 11892
$8.99
Oregon Power Mate rim sprockets for chainsaws. Rims float on the splined hub of the drum and move side to side, allowing the chain and rim to align with the bar as the chain travels around the bar's groove. The rim gets most of the sprockets wear, and by being replaceable, it extends the overall life and value of the sprocket system. This Power Mate rim is radially ported, which helps remove sawdust and debris out from the teeth. It also has wear depth indicators which tell you when to replace your rim. Standard splined rims have a sprocket bore of approximately 3/4". This rim is a .325 x 7 tooth configuration.
Fits the Following Chainsaws
Husqvarna 36, 39, 41, 42, 44, 45, 49, 50, 51, 55, 133, 136, 140, 141, 142, 154, 234, 235E, 238, 240, 240E, 242, 254, 262, 340, 345, 346, 346XP, 350, 351, 353, 355, 357, 359, 444, 455, 460
Jonsered 410, 420, 425, 435, 490, 590, 2041, 2045, 2050, 2145, 2149, 2150, 2151, 2159
Stihl 017, 018, 019, 021, 023, 025, MS210, MS250, MS250C
Echo CS400EVL, CS440EVL, CS510, CS3600, CS3900, CS4400, CS5100, CS4000, CS4500, CS4600, CS5000, CS5500
Poulan 255, 285, 295, 305, 325, 330, 335, 336, 2500, 2600, 2700, 2750, 2775, 2800, 2900, 3050, 3000, 3300, 3350, 3450, 3500, 3700, P600
Husqvarna 36, 39, 41, 42, 44, 45, 49, 50, 51, 55, 133, 136, 140, 141, 142, 154, 234, 235E, 238, 240, 240E, 242, 254, 262, 340, 345, 346, 346XP, 350, 351, 353, 355, 357, 359, 444, 455, 460
Jonsered 410, 420, 425, 435, 490, 590, 2041, 2045, 2050, 2145, 2149, 2150, 2151, 2159
Stihl 017, 018, 019, 021, 023, 025, MS210, MS250, MS250C
Echo CS400EVL, CS440EVL, CS510, CS3600, CS3900, CS4400, CS5100, CS4000, CS4500, CS4600, CS5000, CS5500
Poulan 255, 285, 295, 305, 325, 330, 335, 336, 2500, 2600, 2700, 2750, 2775, 2800, 2900, 3050, 3000, 3300, 3350, 3450, 3500, 3700, P600
