Item # ORF 22273

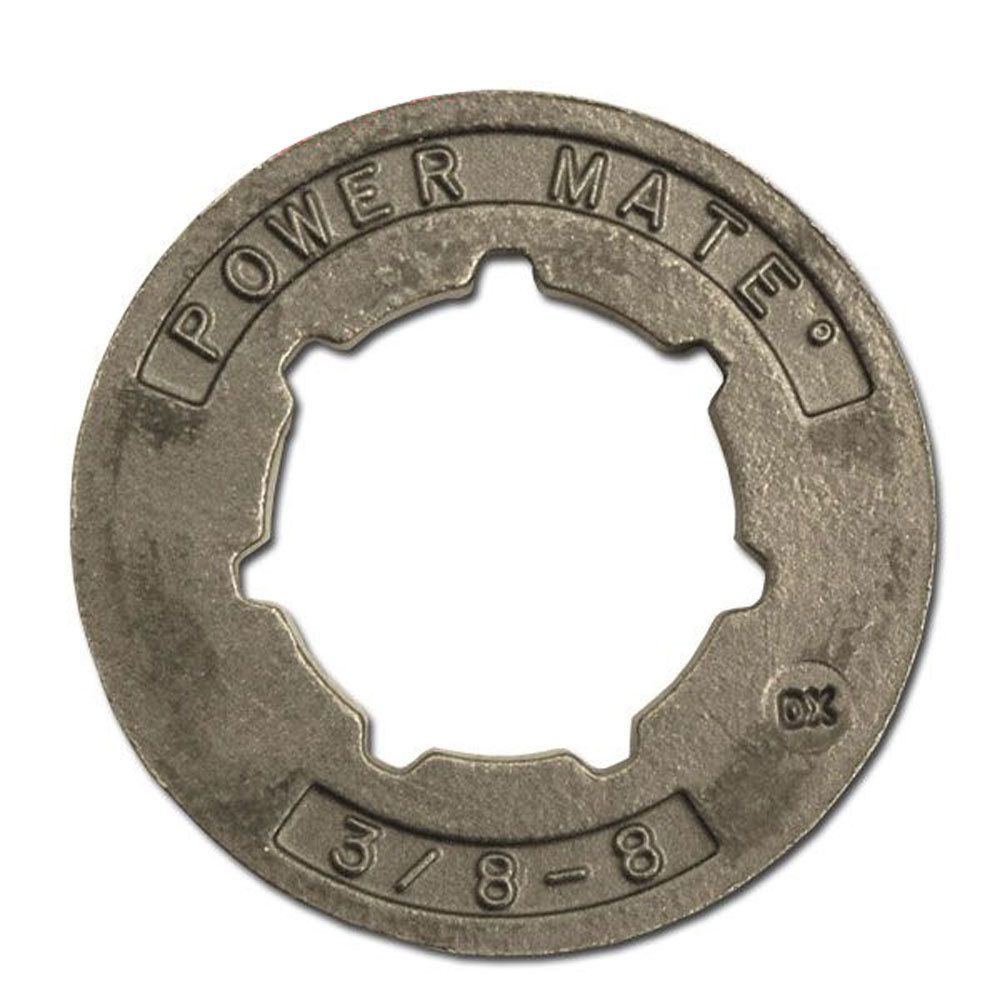

Oregon Power Mate Rim Sprocket (3/8" x 8 Tooth) Standard Spline 22273
$8.99
In Stock
Oregon Power Mate rim sprockets for chainsaws. Rims float on the splined hub of the drum and move side to side, allowing the chain and rim to align with the bar as the chain travels around the bar"s groove. The rim gets most of the sprockets wear, and by being replaceable, it extends the overall life and value of the sprocket system. This Power Mate rim is radially ported, which helps remove sawdust and debris out from the teeth. It also has wear depth indicators which tell you when to replace your rim. Standard splined rims have an inside sprocket bore of approximately 7/8".
Fits the Following Chainsaws
Stihl 050, 051, 075, 076
Jonsered 820, 830, 910, 920, 930
Dolmar 122, 123, 133, 143
Spline Size Standard 7 Spline (SD7)*
Bore 22.25mm (7/8")
Diameter 40mm (1-5/8")
Replaces Stihl Part Number 0000 642 1216
Note *SD7 Standard 7 Spline Rims have an interior diameter of approximately 7/8" (less the splines) and will only fit clutch drums with that diameter bore. Please check before ordering.
Stihl 050, 051, 075, 076
Jonsered 820, 830, 910, 920, 930
Dolmar 122, 123, 133, 143
Spline Size Standard 7 Spline (SD7)*
Bore 22.25mm (7/8")
Diameter 40mm (1-5/8")
Replaces Stihl Part Number 0000 642 1216
Note *SD7 Standard 7 Spline Rims have an interior diameter of approximately 7/8" (less the splines) and will only fit clutch drums with that diameter bore. Please check before ordering.
Specs
Fits the Following Chainsaws
Stihl 050, 051, 075, 076
Jonsered 820, 830, 910, 920, 930
Dolmar 122, 123, 133, 143
Spline Size Standard 7 Spline (SD7)*
Bore 22.25mm (7/8")
Diameter 40mm (1-5/8")
Replaces Stihl Part Number 0000 642 1216
Note *SD7 Standard 7 Spline Rims have an interior diameter of approximately 7/8" (less the splines) and will only fit clutch drums with that diameter bore. Please check before ordering.
Stihl 050, 051, 075, 076
Jonsered 820, 830, 910, 920, 930
Dolmar 122, 123, 133, 143
Spline Size Standard 7 Spline (SD7)*
Bore 22.25mm (7/8")
Diameter 40mm (1-5/8")
Replaces Stihl Part Number 0000 642 1216
Note *SD7 Standard 7 Spline Rims have an interior diameter of approximately 7/8" (less the splines) and will only fit clutch drums with that diameter bore. Please check before ordering.
