Item # ORF 100791X

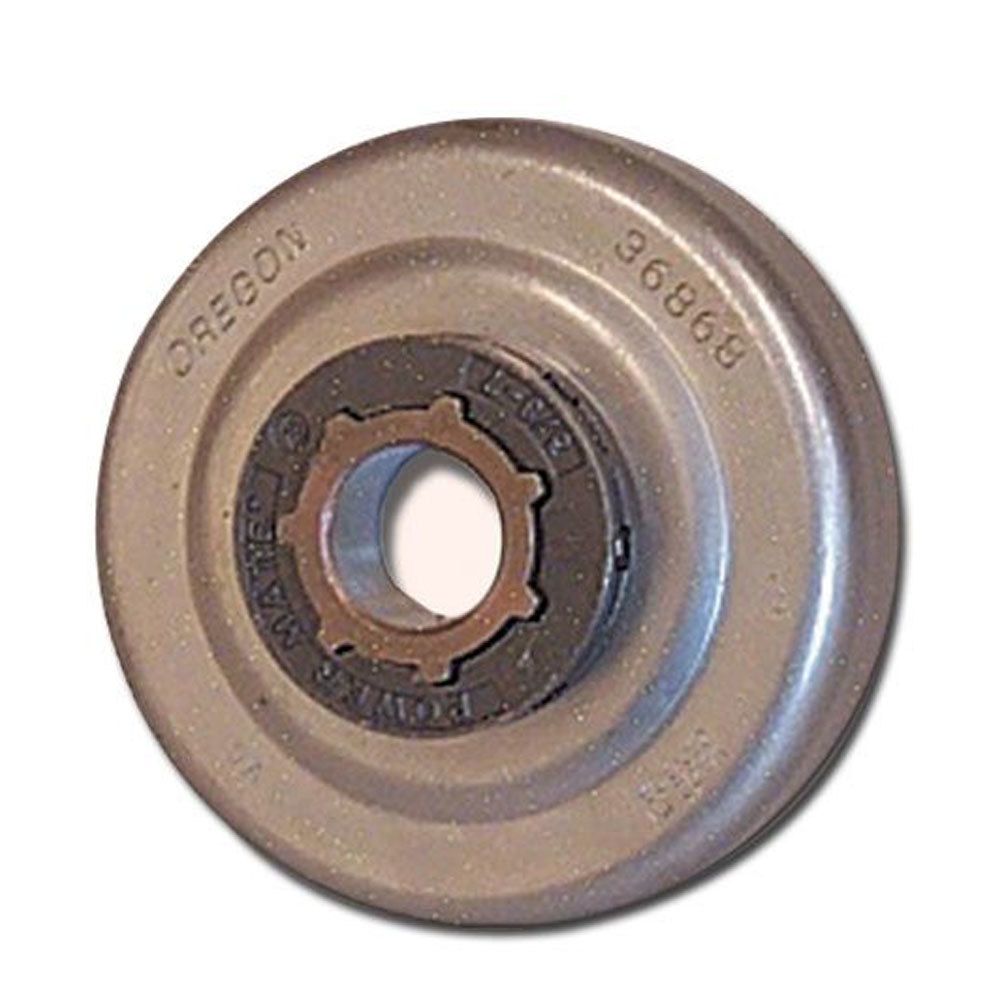

Oregon Power Mate Rim & Drum System (.325" x 7) for Stihl 026, MS240, MS260, MS270, MS280 Chainsaws
$24.99
In Stock
This professional drive system includes a splined drum (clutch cup) with a replaceable rim. The rim floats freely on the spline, allowing the saw chain to align with the groove of the bar. Comes complete with .325" x 7 tooth rim sprocket. Drive sprocket bearing sold separately.
Fits the Following Chainsaws
Stihl 024, 026 (After Serial Number 25809074), MS240, MS260, MS270, MS280
Replaces Part Number 1121 007 1037, 1121 007 1038
Fits Crankshaft Diameter .3937 (10mm)
Drive Sprocket Bearing ORF 37325 (10x13x10)
Rim Spline Size Small 7 Tooth (RSS)
Note This system is designed for the newer style adjustable oil system. The clutch drum has a small slot on the radius. See part number ORF 32457 for the older style system.
Stihl 024, 026 (After Serial Number 25809074), MS240, MS260, MS270, MS280
Replaces Part Number 1121 007 1037, 1121 007 1038
Fits Crankshaft Diameter .3937 (10mm)
Drive Sprocket Bearing ORF 37325 (10x13x10)
Rim Spline Size Small 7 Tooth (RSS)
Note This system is designed for the newer style adjustable oil system. The clutch drum has a small slot on the radius. See part number ORF 32457 for the older style system.
Specs
Fits the Following Chainsaws
Stihl 024, 026 (After Serial Number 25809074), MS240, MS260, MS270, MS280
Replaces Part Number 1121 007 1037, 1121 007 1038
Fits Crankshaft Diameter .3937 (10mm)
Drive Sprocket Bearing ORF 37325 (10x13x10)
Rim Spline Size Small 7 Tooth (RSS)
Note This system is designed for the newer style adjustable oil system. The clutch drum has a small slot on the radius. See part number ORF 32457 for the older style system.
Stihl 024, 026 (After Serial Number 25809074), MS240, MS260, MS270, MS280
Replaces Part Number 1121 007 1037, 1121 007 1038
Fits Crankshaft Diameter .3937 (10mm)
Drive Sprocket Bearing ORF 37325 (10x13x10)
Rim Spline Size Small 7 Tooth (RSS)
Note This system is designed for the newer style adjustable oil system. The clutch drum has a small slot on the radius. See part number ORF 32457 for the older style system.
