Item # ORH 18HX093

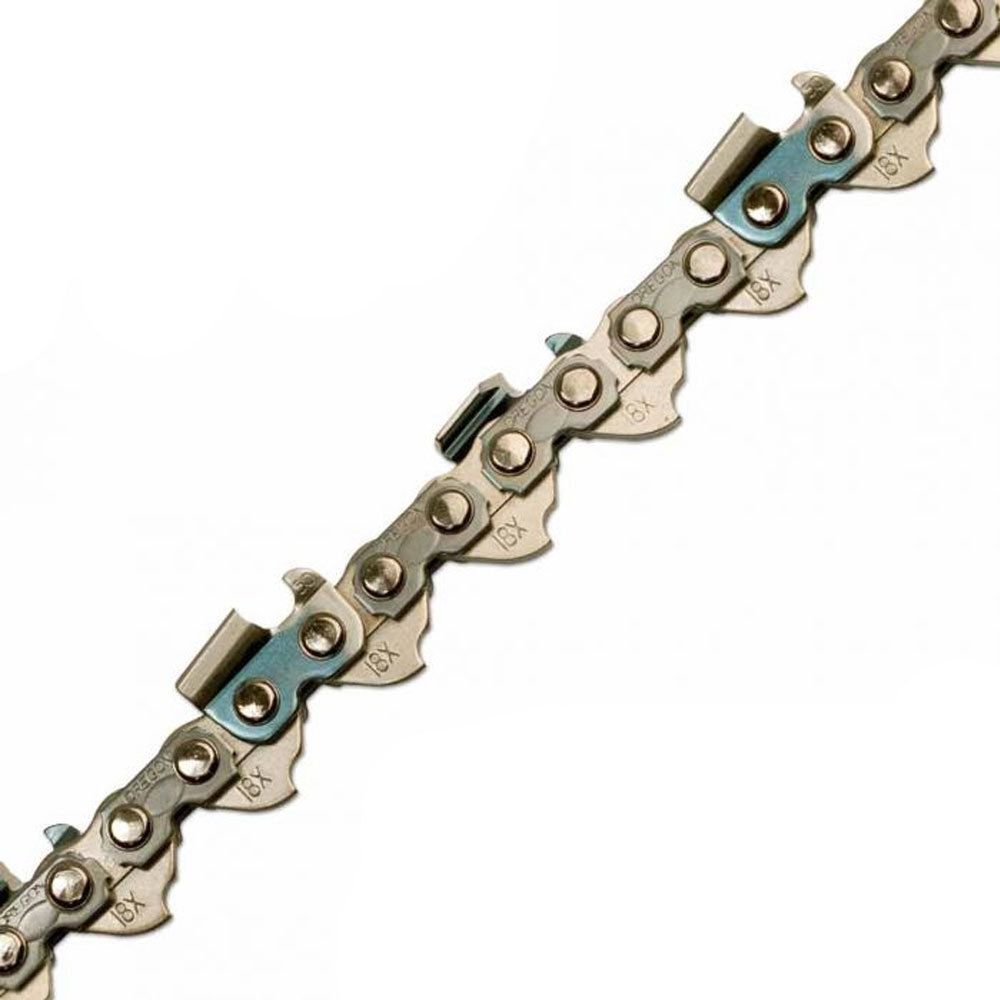

Oregon 82cm Harvester Chain Loop (18HX 93 Drive Links) 18HX093E
$39.99
In Stock
Oregon 18HX is specifically designed for use on today's mechanical harvesting machines. 18HX is the upgraded version of 18H, built with heavier parts to better withstand the high stress of mechanical harvesting. The chain chassis has been thickened and burnished, which makes it tougher to break than 18H. Micro-Chisel cutters have small-radius working corners for excellent performance, resistance to wear, and easy sharpening. Like most Oregon chainsaw chain 18HX has the LubriTec oiling system to help keep both the bar and chain well lubricated.
- Length82cm (32")
- Pitch.404"
- Gauge.080" (2.0mm)
- Chain Size93 Drive Links
- Drive Link Count93 Drive Links
- Cutter TypeMicro-Chisel
Sequence Standard (Full Compliment)
Recommended File Size 7/32"(5.5mm)
Recommended Grinding Wheel Size 3/16"(4.0mm)
Replaces Stihl Part Numbers 40RMH, 40RMHS
Replaces Oregon Part Number 18H
Replaces Carlton Part Number B5H, B5M
WARNING: All harvester chain is intended for use on mechanized harvesting equipment only and should never be used on hand-held chainsaws. Depth-gauge settings, grind angles and other features on harvester chain is more aggressive in order to obtain maximum productivity from mechanized saws; these features can cause high levels of kickback, or increase other risk factors which can lead to a greater danger of injury to the operator or bystanders. DO NOT install harvester chain on hand-held chainsaws.
Recommended File Size 7/32"(5.5mm)
Recommended Grinding Wheel Size 3/16"(4.0mm)
Replaces Stihl Part Numbers 40RMH, 40RMHS
Replaces Oregon Part Number 18H
Replaces Carlton Part Number B5H, B5M
WARNING: All harvester chain is intended for use on mechanized harvesting equipment only and should never be used on hand-held chainsaws. Depth-gauge settings, grind angles and other features on harvester chain is more aggressive in order to obtain maximum productivity from mechanized saws; these features can cause high levels of kickback, or increase other risk factors which can lead to a greater danger of injury to the operator or bystanders. DO NOT install harvester chain on hand-held chainsaws.
Specs
- Length82cm (32")
- Pitch.404"
- Gauge.080" (2.0mm)
- Chain Size93 Drive Links
- Drive Link Count93 Drive Links
- Cutter TypeMicro-Chisel
Sequence Standard (Full Compliment)
Recommended File Size 7/32"(5.5mm)
Recommended Grinding Wheel Size 3/16"(4.0mm)
Replaces Stihl Part Numbers 40RMH, 40RMHS
Replaces Oregon Part Number 18H
Replaces Carlton Part Number B5H, B5M
WARNING: All harvester chain is intended for use on mechanized harvesting equipment only and should never be used on hand-held chainsaws. Depth-gauge settings, grind angles and other features on harvester chain is more aggressive in order to obtain maximum productivity from mechanized saws; these features can cause high levels of kickback, or increase other risk factors which can lead to a greater danger of injury to the operator or bystanders. DO NOT install harvester chain on hand-held chainsaws.
Recommended File Size 7/32"(5.5mm)
Recommended Grinding Wheel Size 3/16"(4.0mm)
Replaces Stihl Part Numbers 40RMH, 40RMHS
Replaces Oregon Part Number 18H
Replaces Carlton Part Number B5H, B5M
WARNING: All harvester chain is intended for use on mechanized harvesting equipment only and should never be used on hand-held chainsaws. Depth-gauge settings, grind angles and other features on harvester chain is more aggressive in order to obtain maximum productivity from mechanized saws; these features can cause high levels of kickback, or increase other risk factors which can lead to a greater danger of injury to the operator or bystanders. DO NOT install harvester chain on hand-held chainsaws.
