Item # ORH ORA14404XL

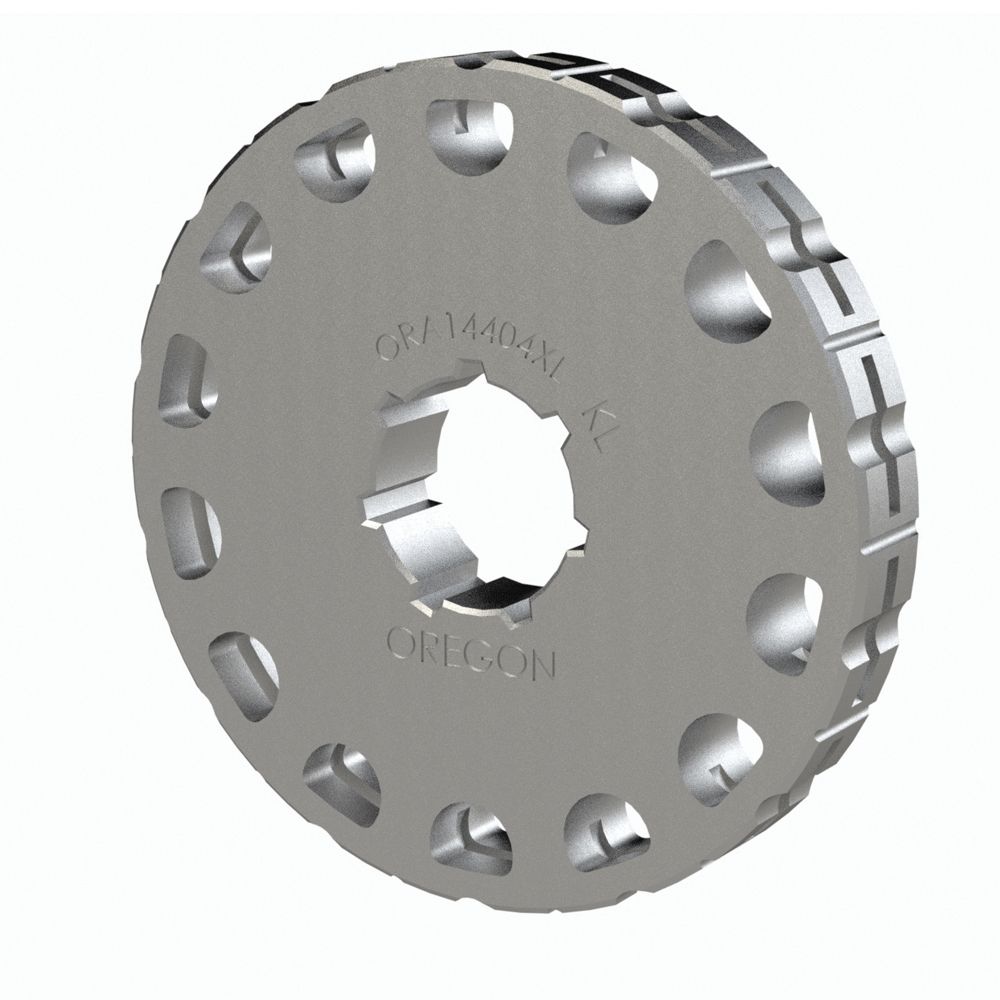

Oregon .404" Pitch Harvester Sprocket (14 Tooth) ORA14404XL
$94.99
Oregon rim style harvester drive sprockets are made from high quality heat treated steel. These drive sprockets are specifically designed to fit the hydraulic motors on harvester machines. The new XL design comes complete with patented wear marks, so you know when the sprocket needs to be replaces. The chip ejection port design allows the sprocket to be mounted from either side. Oregon .404" pitch drive sprockets are designed to work with 18HX, and 19HX harvester chain, but they will fit any .404 pitch chain. Sprocket teeth slots accept both .063 (1.6mm) and .080 (2.0mm) gauge chain.
- Pitch.404"
- Gauge.080" (2.0mm)
- Tooth Count14 Teeth
- Bore 7/8" (22.55mm) for Splined Shaft
- Diameter 3-1/4" (80mm)
- Width 1/2" (12mm)
- Teeth 14
Drive Sprocket Specifications:
WARNING: All harvester chain is intended for use on mechanized harvesting equipment only and should never be used on hand-held chainsaws. Depth-gauge settings, grind angles and other features on harvester chain is more aggressive in order to obtain maximum productivity from mechanized saws; these features can cause high levels of kickback, or increase other risk factors which can lead to a greater danger of injury to the operator or bystanders. DO NOT install harvester chain on hand-held chainsaws.
WARNING: All harvester chain is intended for use on mechanized harvesting equipment only and should never be used on hand-held chainsaws. Depth-gauge settings, grind angles and other features on harvester chain is more aggressive in order to obtain maximum productivity from mechanized saws; these features can cause high levels of kickback, or increase other risk factors which can lead to a greater danger of injury to the operator or bystanders. DO NOT install harvester chain on hand-held chainsaws.
Specs
- Pitch.404"
- Gauge.080" (2.0mm)
- Tooth Count14 Teeth
- Bore 7/8" (22.55mm) for Splined Shaft
- Diameter 3-1/4" (80mm)
- Width 1/2" (12mm)
- Teeth 14
Drive Sprocket Specifications:
WARNING: All harvester chain is intended for use on mechanized harvesting equipment only and should never be used on hand-held chainsaws. Depth-gauge settings, grind angles and other features on harvester chain is more aggressive in order to obtain maximum productivity from mechanized saws; these features can cause high levels of kickback, or increase other risk factors which can lead to a greater danger of injury to the operator or bystanders. DO NOT install harvester chain on hand-held chainsaws.
WARNING: All harvester chain is intended for use on mechanized harvesting equipment only and should never be used on hand-held chainsaws. Depth-gauge settings, grind angles and other features on harvester chain is more aggressive in order to obtain maximum productivity from mechanized saws; these features can cause high levels of kickback, or increase other risk factors which can lead to a greater danger of injury to the operator or bystanders. DO NOT install harvester chain on hand-held chainsaws.
