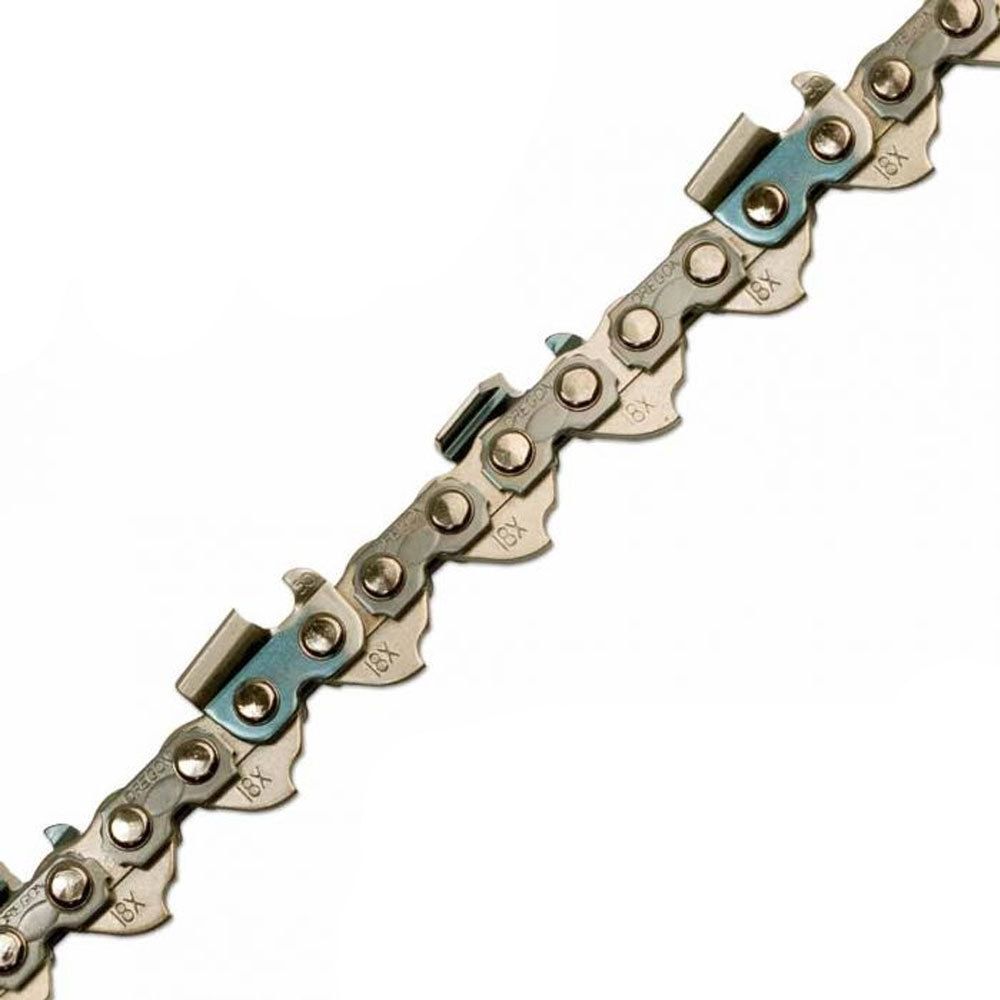

Oregon 18HX (.404" Pitch) Harvester Chain
SKU
ORH 18HXP
SKU
ORH 18HX
SKU
ORH 18HX025RL
SKU
ORH 18HX065
SKU
ORH 18HX068
SKU
ORH 18HX070
SKU
ORH 18HX072
SKU
ORH 18HX073
SKU
ORH 18HX074
SKU
ORH 18HX075
SKU
ORH 18HX076
SKU
ORH 18HX077
SKU
ORH 18HX078
SKU
ORH 18HX085
SKU
ORH 18HX086
SKU
ORH 18HX087
SKU
ORH 18HX088
SKU
ORH 18HX089
SKU
ORH 18HX090
SKU
ORH 18HX091
SKU
ORH 18HX092
SKU
ORH 18HX093
SKU
ORH 18HX094
SKU
ORH 18HX095
SKU
ORH 18HX099
SKU
ORH 18HX100
SKU
ORH 18HX100RL
SKU
ORH 18HX105
Oregon 18HX is specifically designed for use on today's mechanical harvesting machines. 18HX is the upgraded version of 18H, built with heavier parts to better withstand the high stress of mechanical harvesting. The chain chassis has been thickened and burnished, which makes it tougher to break than 18H. Micro-Chisel cutters have small-radius working corners for excellent performance, resistance to wear, and easy sharpening. Like most Oregon chainsaw chain 18HX has the LubriTec oiling system to help keep both the bar and chain well lubricated.
| Pitch | .404" |
|---|---|
| Gauge | .080" (2.0mm) |
| Drive Link Count | 68 Drive Links |
| Cutter Type | Micro-Chisel |
|
Sequence Standard (Full Compliment) Recommended File Size 7/32"(5.5mm) Recommended Grinding Wheel Size 3/16"(4.0mm) Replaces Stihl Part Numbers 40RMH, 40RMHS Replaces Oregon Part Number 18H Replaces Carlton Part Number B5H, B5M |
| WARNING: All harvester chain is intended for use on mechanized harvesting equipment only and should never be used on hand-held chainsaws. Depth-gauge settings, grind angles and other features on harvester chain is more aggressive in order to obtain maximum productivity from mechanized saws; these features can cause high levels of kickback, or increase other risk factors which can lead to a greater danger of injury to the operator or bystanders. DO NOT install harvester chain on hand-held chainsaws. |
