Item # CKN 044
NWP Piston & Cylinder Assembly (50mm) for Stihl 044, MS440 Chainsaws (Replaces 1128 020 1227)
$134.99
In Stock

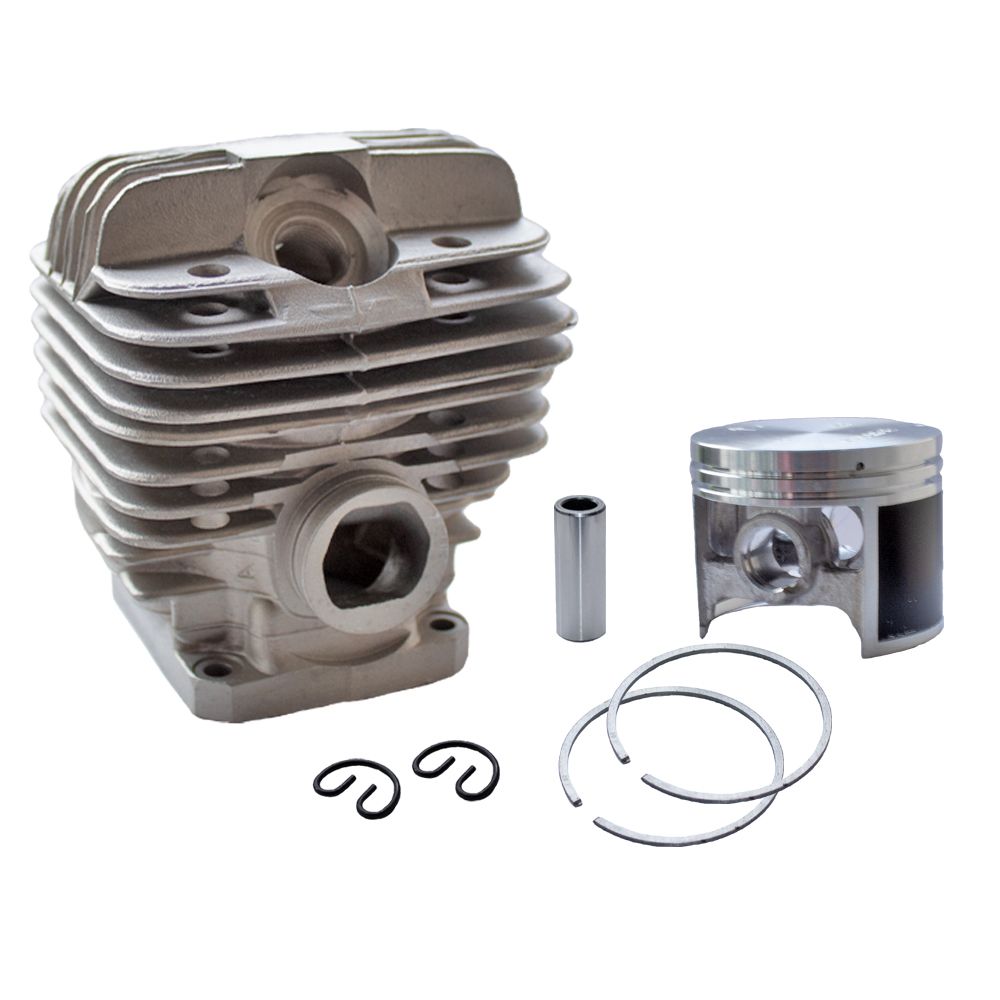

Replacement cylinder assembly from NWP. These cylinder assemblies are an economical option for your top end rebuild. Cylinder assembly includes a piston, rings, piston pin, circlips and cylinder. Cylinder bore is NiSi coated for long life. These pistons have a thin coat of molybdenum, which helps reduce friction and wear during the initial break in period. Piston rings are made from ductile cast iron, so your chances of breaking them during installation are greatly reduced. We recommend using a piston ring clamp set when changing your cylinder. Gasket set sold separately Item # QA 112800 71050.
Fits the Following Chainsaws
Stihl 044* After Serial Number X 29 382 283, MS440
Replaces Part Numbers 0000 120 1654, 1128 020 1227
Bore 50mm
Stroke 36mm
Displacement 70.7cc
Rings 50mm x 1.2mm
Note* Older 044 chainsaws made before serial number 29 382 283 have a 10mm wrist pin. In order to make this assembly to fit you will need to also purchase #PKM 044 10 piston assembly that has the 10mm piston pin.
Stihl 044* After Serial Number X 29 382 283, MS440
Replaces Part Numbers 0000 120 1654, 1128 020 1227
Bore 50mm
Stroke 36mm
Displacement 70.7cc
Rings 50mm x 1.2mm
Note* Older 044 chainsaws made before serial number 29 382 283 have a 10mm wrist pin. In order to make this assembly to fit you will need to also purchase #PKM 044 10 piston assembly that has the 10mm piston pin.
Specs
Fits the Following Chainsaws
Stihl 044* After Serial Number X 29 382 283, MS440
Replaces Part Numbers 0000 120 1654, 1128 020 1227
Bore 50mm
Stroke 36mm
Displacement 70.7cc
Rings 50mm x 1.2mm
Note* Older 044 chainsaws made before serial number 29 382 283 have a 10mm wrist pin. In order to make this assembly to fit you will need to also purchase #PKM 044 10 piston assembly that has the 10mm piston pin.
Stihl 044* After Serial Number X 29 382 283, MS440
Replaces Part Numbers 0000 120 1654, 1128 020 1227
Bore 50mm
Stroke 36mm
Displacement 70.7cc
Rings 50mm x 1.2mm
Note* Older 044 chainsaws made before serial number 29 382 283 have a 10mm wrist pin. In order to make this assembly to fit you will need to also purchase #PKM 044 10 piston assembly that has the 10mm piston pin.
Warranty
1 Year Warranty
