NWP Piston & Cylinder Assembly (47mm) for Stihl MS362 Chainsaws (Replaces 1140 020 1200)

SKU
CKN 362

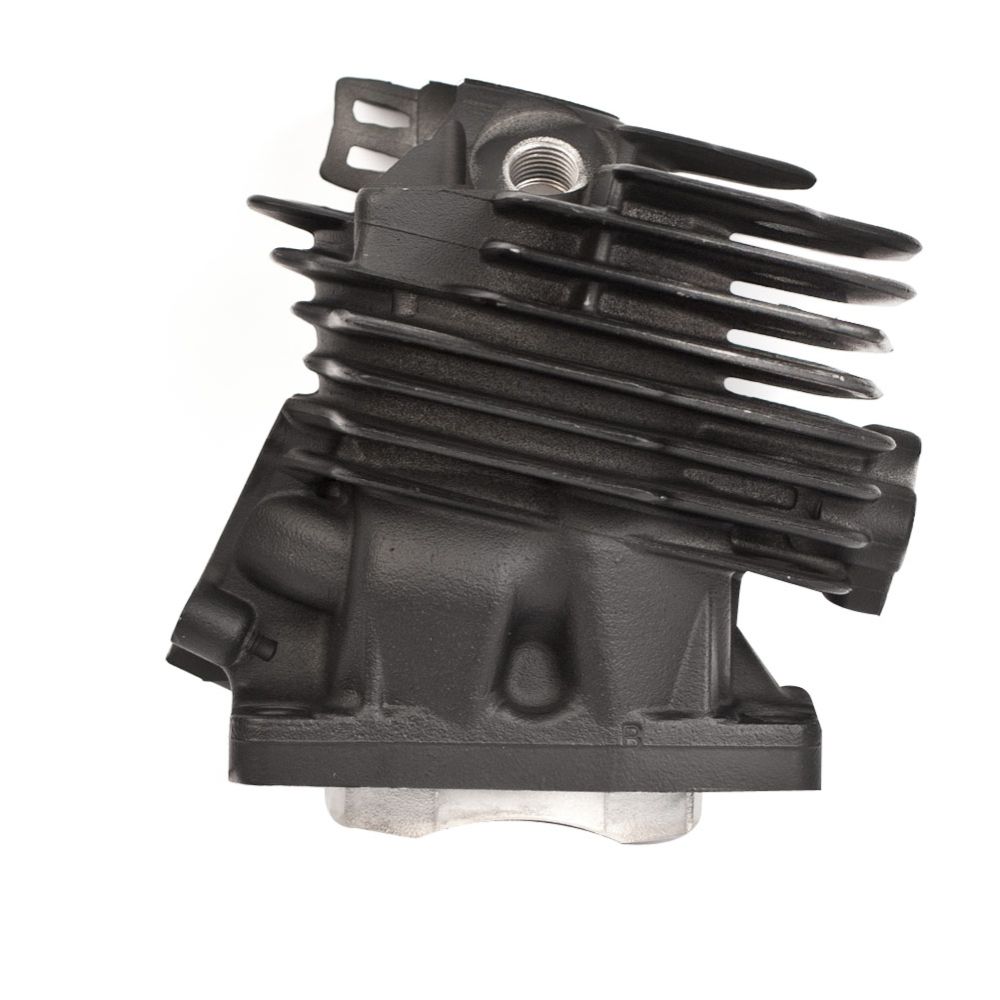

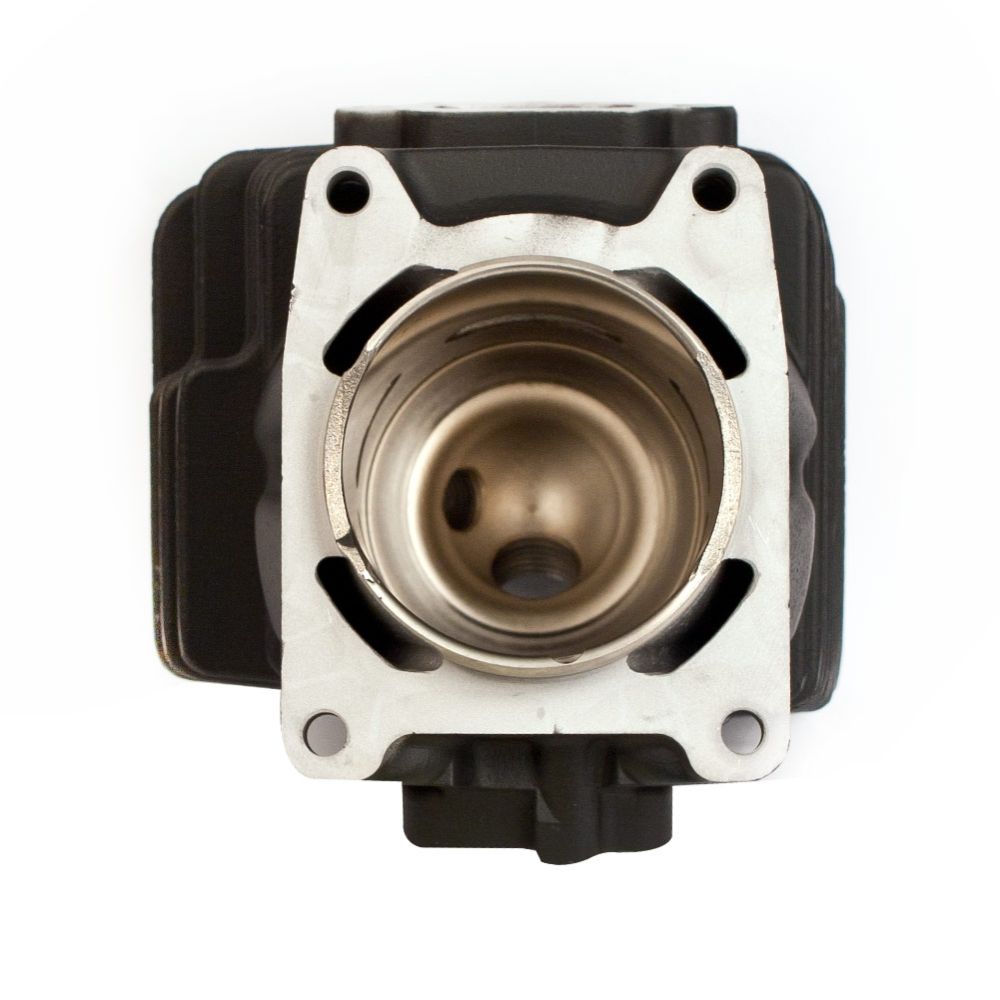

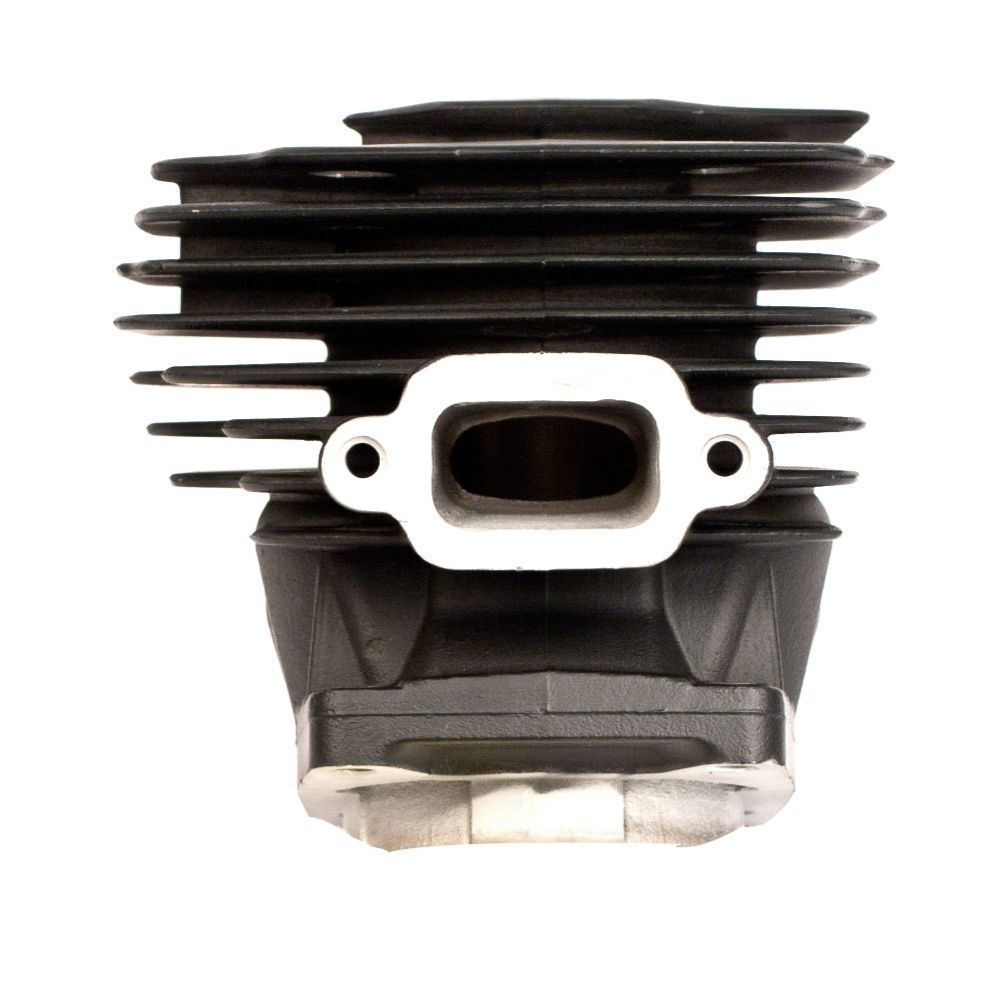

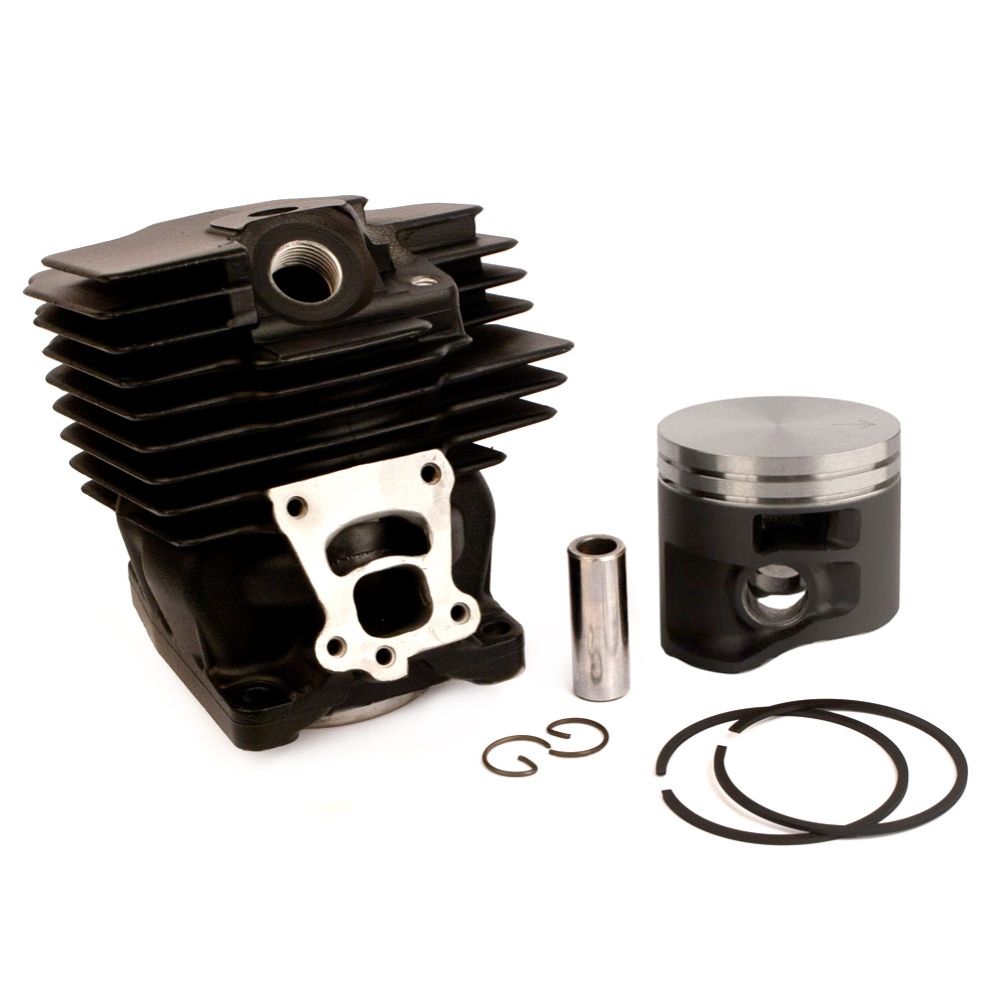

Replacement cylinder assembly from NWP. These cylinder assemblies are an economical option for your top end rebuild. Cylinder assembly includes a piston, rings, piston pin, circlips and cylinder. Cylinder bore is NiSi coated for long life. These pistons have a thin coat of molybdenum, which helps reduce friction and wear during the initial break in period. Piston rings are made from ductile cast iron, so your chances of breaking them during installation are greatly reduced. We recommend using a piston ring clamp set when changing your cylinder.
$134.99
Shipping Weight 3.0 lbs.

Currently out of stock. More due on 06/01/2024 Order now to reserve yours.

Fits the Following Chainsaws
Stihl MS362, MS362 C
Replaces Part Number 1140 020 1206
Bore 47mm
Stroke 36mm
Displacement 59cc
Rings 47mm x 1.2mm
