Item # CKN 359
NWP Piston & Cylinder Assembly (47mm) for Husqvarna 357XP, 359, Jonsered CS2156, CS2159 Chainsaws
$134.99
In Stock

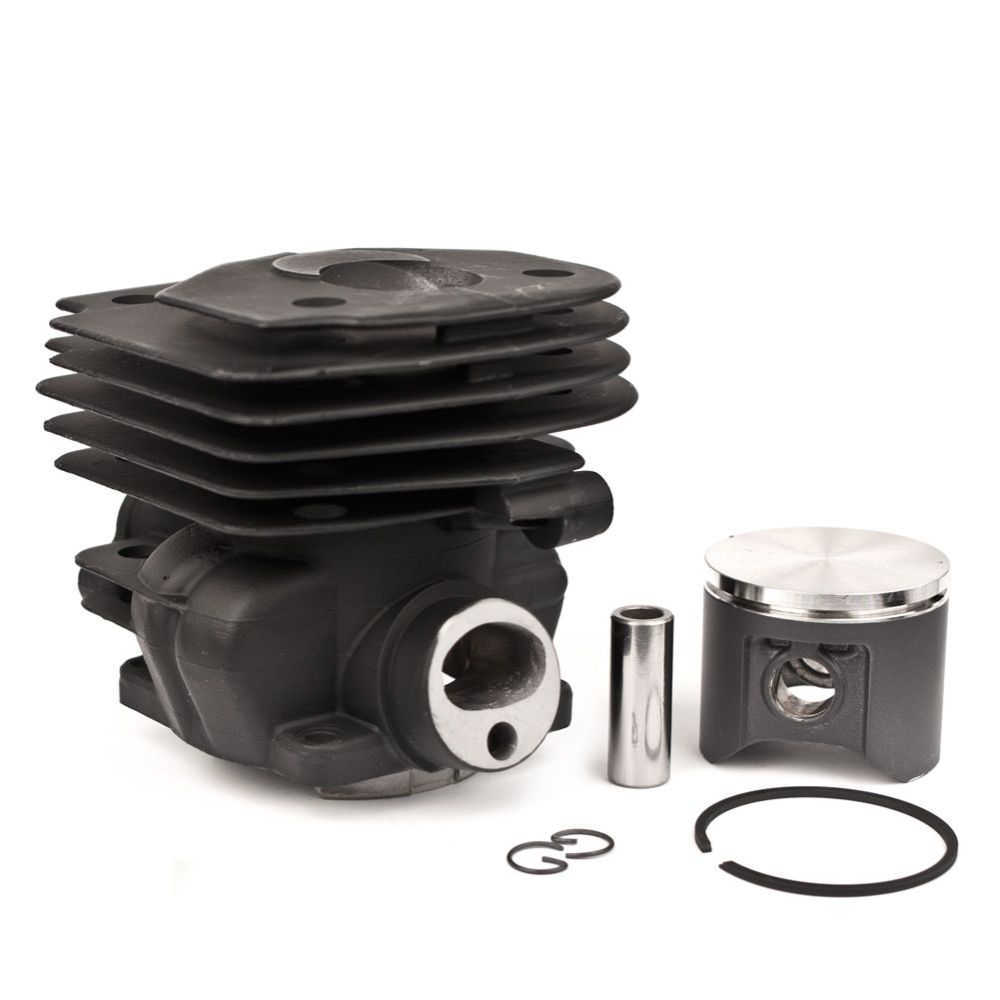

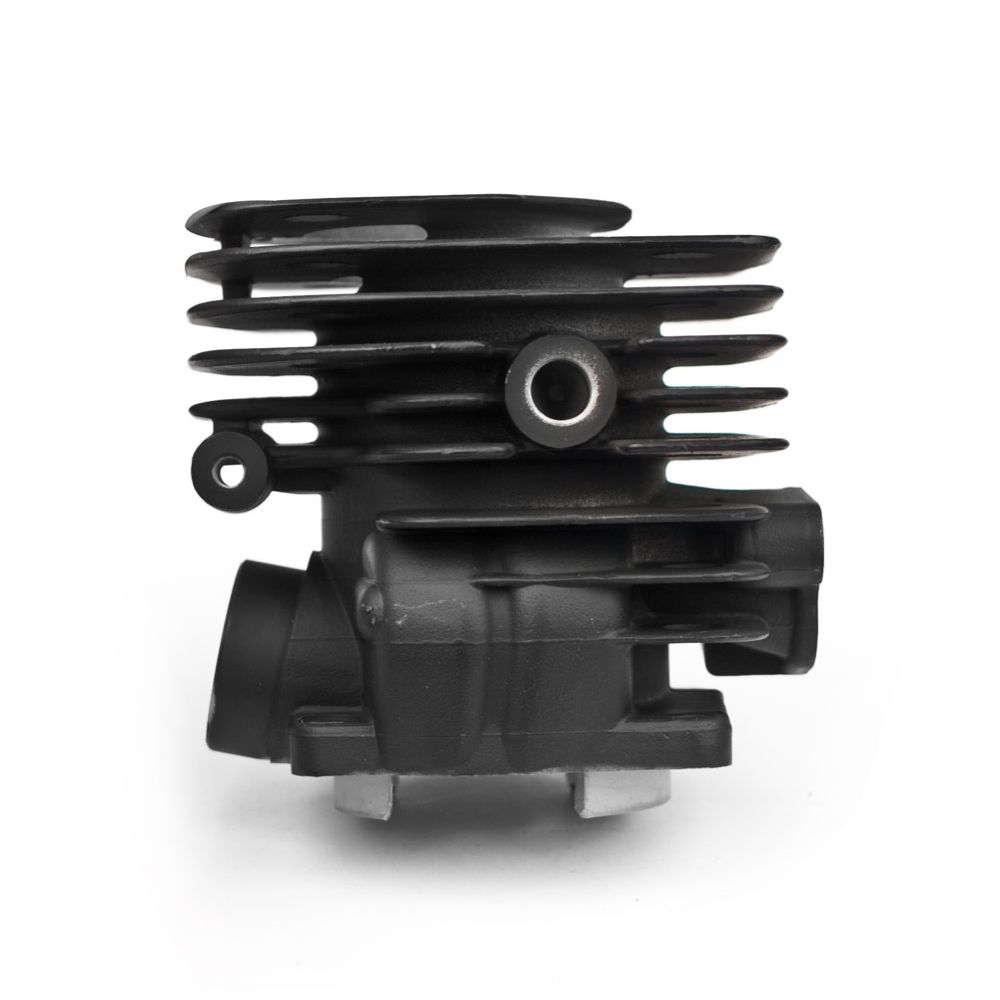

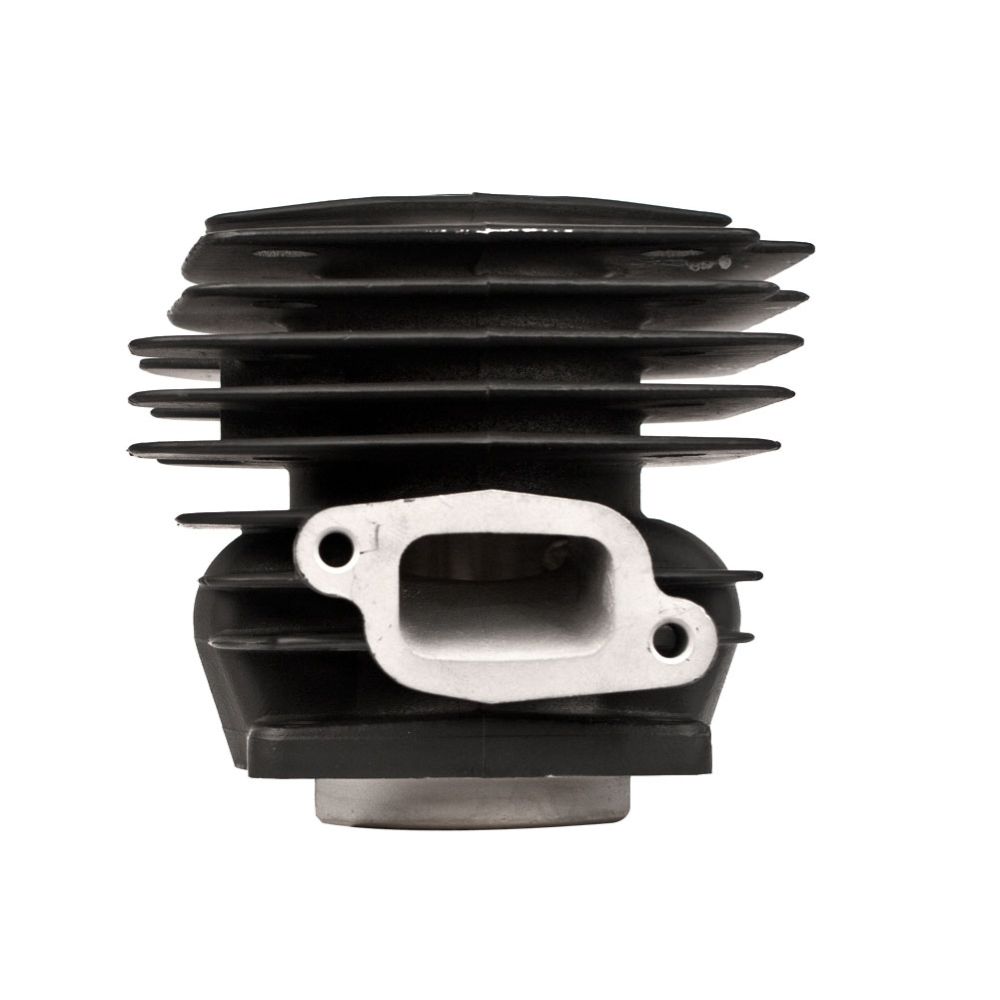

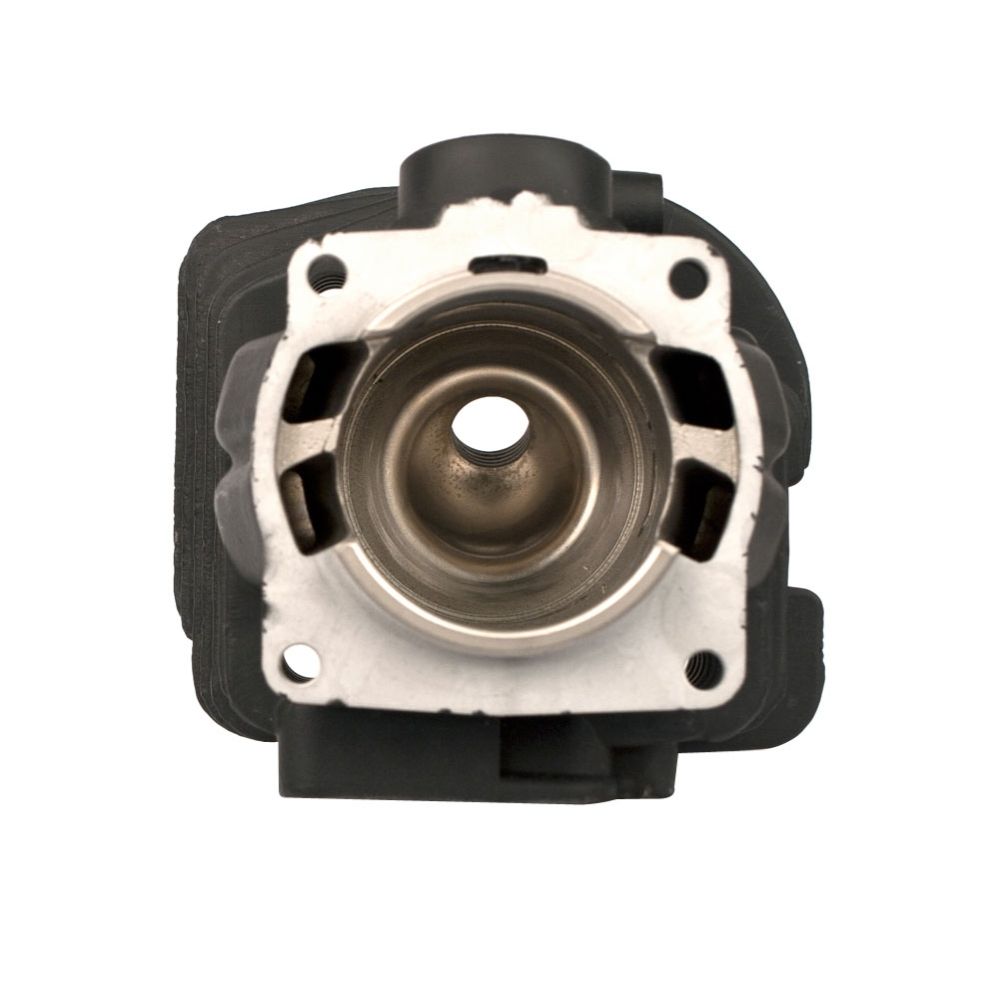

Replacement cylinder assembly from NWP. These cylinder assemblies are an economical option for your top end rebuild. Cylinder assembly includes a piston, rings, piston pin, circlips and cylinder. Cylinder bore is NiSi coated for long life. These pistons have a thin coat of molybdenum, which helps reduce friction and wear during the initial break in period. Piston rings are made from ductile cast iron, so your chances of breaking them during installation are greatly reduced. We recommend using a piston ring clamp set when changing your cylinder.
Important Note: Some chainsaw models have different piston and cylinder options. Please see the tabs below for specifications and fitment requirements before ordering.
Fits the Following Chainsaws
Husqvarna 357XP*, 359
Jonsered CS2156, CS2159
Bore 47mm
Stroke 34mm
Displacement 59cc
Ring 47mm x 1.5mm
Note: This cylinder kit will replace a standard 357XP cylinder (46mm) and give you more displacement (It is essentially a big bore kit for a 357XP).
Husqvarna 357XP*, 359
Jonsered CS2156, CS2159
Bore 47mm
Stroke 34mm
Displacement 59cc
Ring 47mm x 1.5mm
Note: This cylinder kit will replace a standard 357XP cylinder (46mm) and give you more displacement (It is essentially a big bore kit for a 357XP).
Specs
Fits the Following Chainsaws
Husqvarna 357XP*, 359
Jonsered CS2156, CS2159
Bore 47mm
Stroke 34mm
Displacement 59cc
Ring 47mm x 1.5mm
Note: This cylinder kit will replace a standard 357XP cylinder (46mm) and give you more displacement (It is essentially a big bore kit for a 357XP).
Husqvarna 357XP*, 359
Jonsered CS2156, CS2159
Bore 47mm
Stroke 34mm
Displacement 59cc
Ring 47mm x 1.5mm
Note: This cylinder kit will replace a standard 357XP cylinder (46mm) and give you more displacement (It is essentially a big bore kit for a 357XP).
