Item # LSL 7502 001 2415
Logosol Motor 230V/60Hz 3Kw (1-Phase) M3 Upper
In Stock

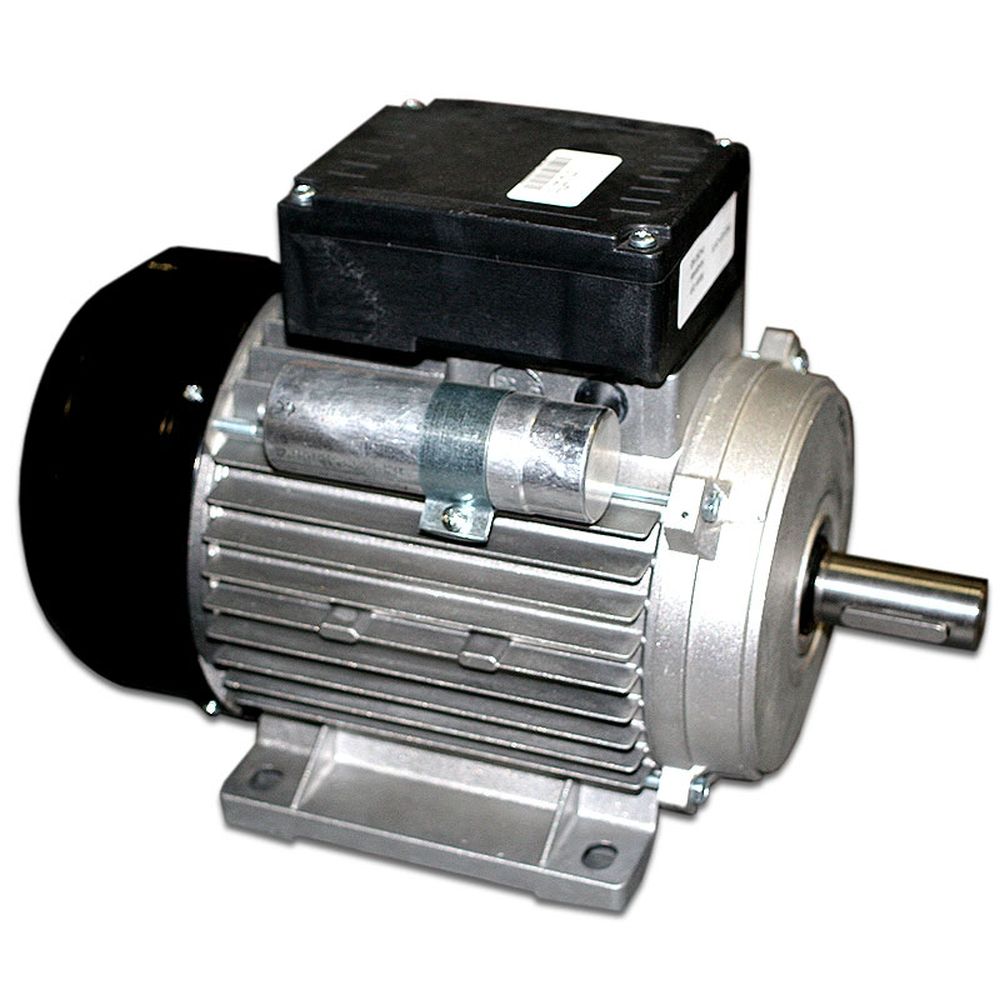

Electric motor from E.M.G. These motors are used to power most of the Logosol equipment. Electric motors come bare without pulleys, wires or mounting bolts. Drive shaft comes complete with key. This motor fits the Logosol PH260 Planer/Moulder.
Model 100/2
Motor Type 1-Phase/2 Pole
Horsepower 3kw (4hp)
RPM 60Hz 3560
Voltage/Hertz 230/60Hz
Amperage 230V 17
Shaft Diameter 28mm (1.109")
Weight 20kg (44lbs)
Motor Type 1-Phase/2 Pole
Horsepower 3kw (4hp)
RPM 60Hz 3560
Voltage/Hertz 230/60Hz
Amperage 230V 17
Shaft Diameter 28mm (1.109")
Weight 20kg (44lbs)
Specs
Model 100/2
Motor Type 1-Phase/2 Pole
Horsepower 3kw (4hp)
RPM 60Hz 3560
Voltage/Hertz 230/60Hz
Amperage 230V 17
Shaft Diameter 28mm (1.109")
Weight 20kg (44lbs)
Motor Type 1-Phase/2 Pole
Horsepower 3kw (4hp)
RPM 60Hz 3560
Voltage/Hertz 230/60Hz
Amperage 230V 17
Shaft Diameter 28mm (1.109")
Weight 20kg (44lbs)
