Item # LSL 7502 001 0606
Logosol Motor 230V/400V/60Hz 3Kw (3-Phase) Upper/Lower
$659.99
In Stock

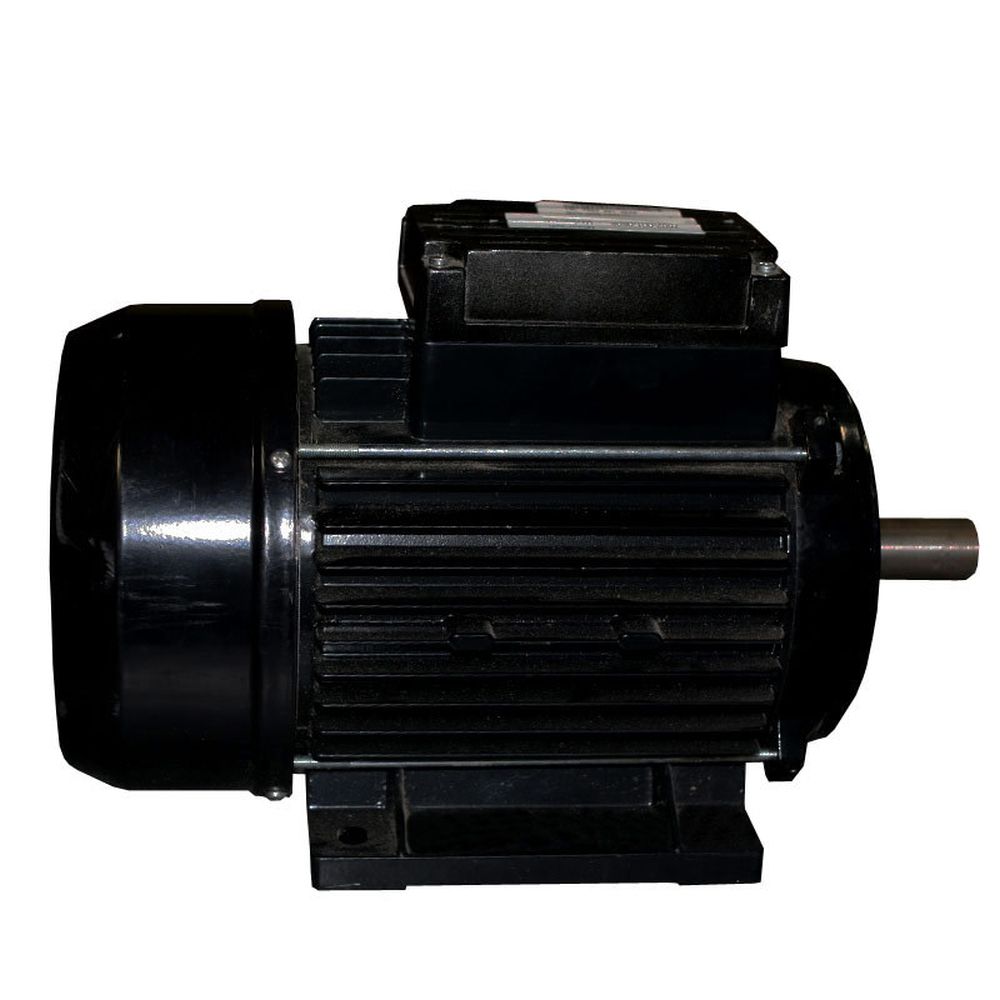

Electric motor from E.M.G. These motors are used to power most of the Logosol equipment. Electric motors come bare without pulleys, wires or mounting bolts. Drive shaft comes complete with key. Fits PH 260 M-1 and M-2, Upper and Lower. Fits PH 260 M-3 and M-4, Lower Only

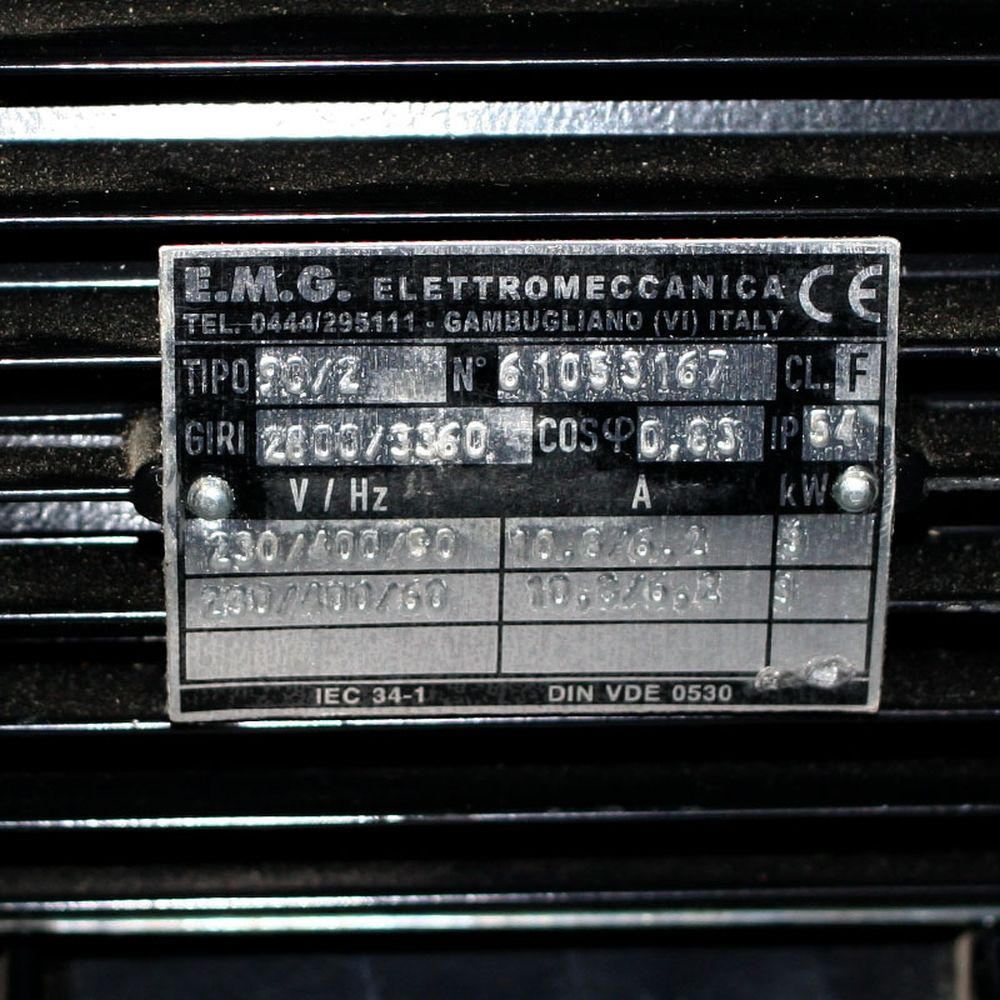

Model 90/2
Motor Type 3-Phase/2 Pole
Horsepower 3kw (4hp)
RPM 50Hz/60Hz 2800/3360
Voltage/Hertz 230/400/50Hz
Voltage/Hertz 265/460/60Hz
Amperage 230/400V 10.8/6.2
Shaft Diameter 24mm (0.945")
Weight 15.8kg (34.7lbs)
Motor Type 3-Phase/2 Pole
Horsepower 3kw (4hp)
RPM 50Hz/60Hz 2800/3360
Voltage/Hertz 230/400/50Hz
Voltage/Hertz 265/460/60Hz
Amperage 230/400V 10.8/6.2
Shaft Diameter 24mm (0.945")
Weight 15.8kg (34.7lbs)
Specs
Model 90/2
Motor Type 3-Phase/2 Pole
Horsepower 3kw (4hp)
RPM 50Hz/60Hz 2800/3360
Voltage/Hertz 230/400/50Hz
Voltage/Hertz 265/460/60Hz
Amperage 230/400V 10.8/6.2
Shaft Diameter 24mm (0.945")
Weight 15.8kg (34.7lbs)
Motor Type 3-Phase/2 Pole
Horsepower 3kw (4hp)
RPM 50Hz/60Hz 2800/3360
Voltage/Hertz 230/400/50Hz
Voltage/Hertz 265/460/60Hz
Amperage 230/400V 10.8/6.2
Shaft Diameter 24mm (0.945")
Weight 15.8kg (34.7lbs)
