Item # MCA CC1458
Meteor Piston & Cylinder Assembly (48mm) for Stihl 036, MS360 Chainsaws
$119.99
In Stock

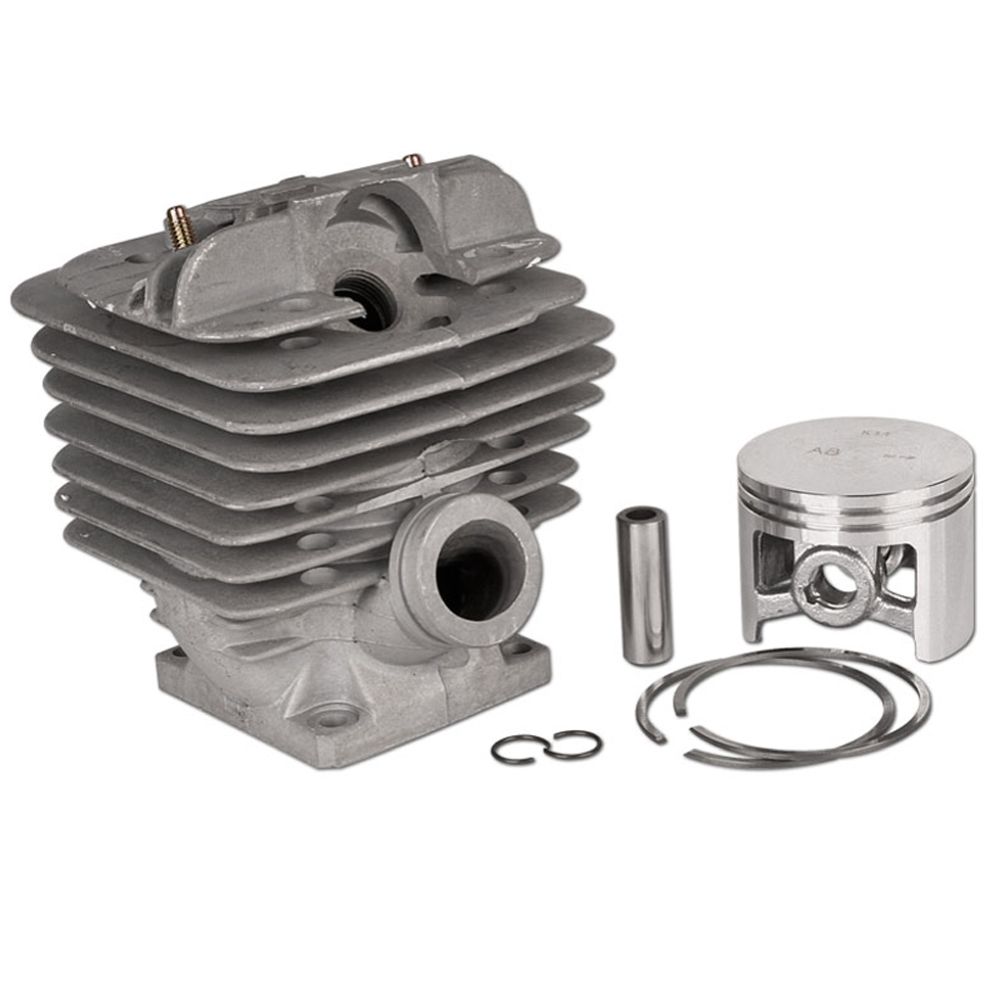

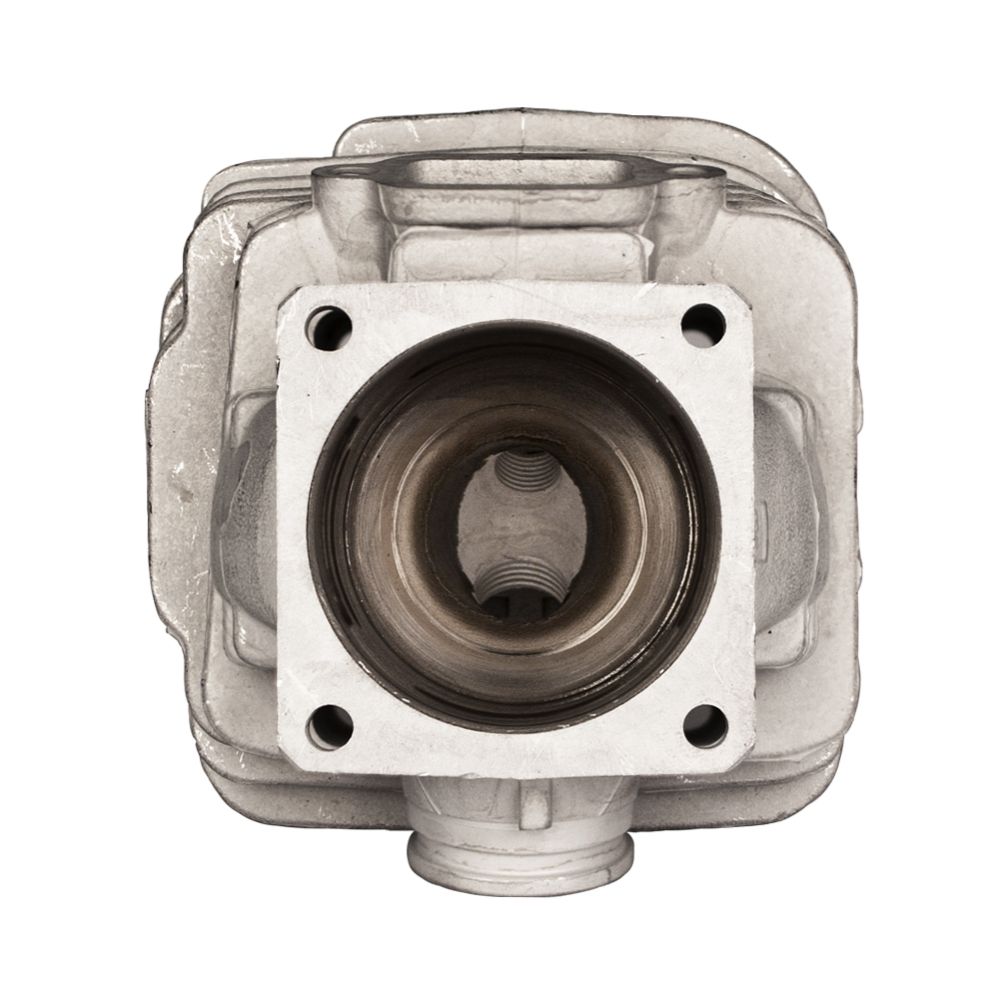

High quality replacement cylinder assembly from Meteor. These Italian made cylinder kits are sure to be a hit for those of you who do your own top end repairs. Each assembly includes a nickel silicate coated cylinder, piston, rings, wrist pin and clips. Gaskets and piston pin bearing sold separately. We recommend replacing your cylinder and muffler gaskets (Cylinder Gasket #QS 1119 029 2301 & Muffler Gasket #QS 1125 149 0601) and using a piston ring clamp set to help when changing a piston.
Fits the Following Chainsaws
Stihl 034*, 036, 036 Pro, MS360, MS360 Pro
Note* Will bolt on to 034 chainsaws but requires minor cover modifications
Replaces Part Number 1125 020 1215Bore 48mm
Stroke 34mm
Displacement 61.5cc
Rings 48mm x 1.2mm (Caber F-Cast GH.F)
Recommended Gasket Set (Sold Separately) QS 1125 007 1050
Stihl 034*, 036, 036 Pro, MS360, MS360 Pro
Note* Will bolt on to 034 chainsaws but requires minor cover modifications
Replaces Part Number 1125 020 1215Bore 48mm
Stroke 34mm
Displacement 61.5cc
Rings 48mm x 1.2mm (Caber F-Cast GH.F)
Recommended Gasket Set (Sold Separately) QS 1125 007 1050
