Meteor Piston Assembly (45mm) for Husqvarna 50, 51 Chainsaws (Replaces 503 16 77-01)

SKU
MPA PC1664

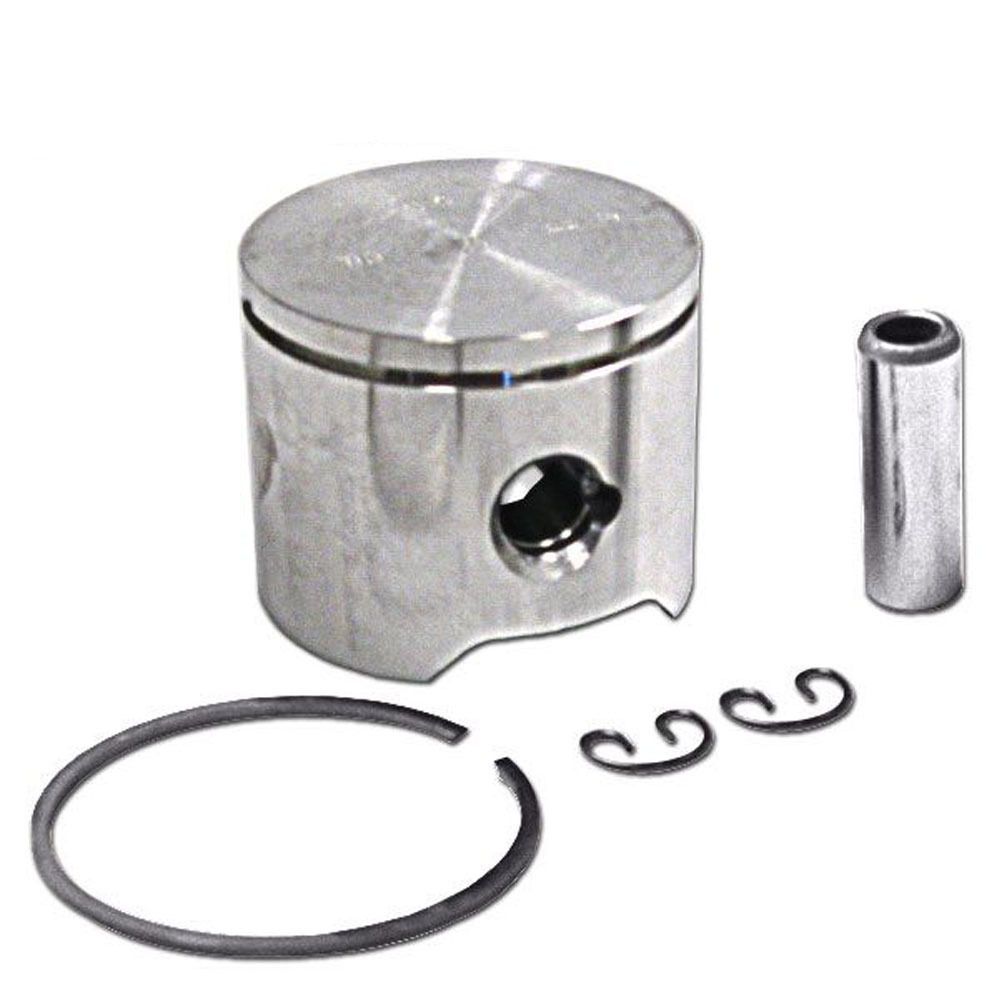

The Meteor Piston company has been making pistons for small two cycle engines since 1952. These pistons are a high quality replacement option for your professional chainsaw. Each piston assembly include a piston, ring, wrist pin and circlips. This piston comes with a high performance Caber F-cast ring. We recommend replacing your cylinder gaskets and using a piston ring clamp set to help when changing a piston.

Important Note: Some chainsaw models have different piston and cylinder options. Please see the tabs below for specifications and fitment requirements before ordering.

$49.99
Shipping Weight 0.3 lbs.

Currently out of stock. More due to arrive soon. Order now to reserve yours.

  • Italy.png
Fits the following chainsaws:
  • Husqvarna 50, 51 (non EPA)*
  • Replaces Part Number 503 16 77 01
  • Note Husqvarna 51 EPA chainsaws uses a different displacement piston and cylinder (44mm bore)
  • Bore 44.93mm
  • Height 37mm
  • Head Type Flat
  • Piston Pin 10mm x 36mm x 6mm
  • Ring 45mm x 1.5mm (Caber F-Cast GH.F)
  • Compression/Pin Top to top of Piston 14mm
  • Compression/Pin Center to top of Piston 19mm
