Item # DSM 23 27

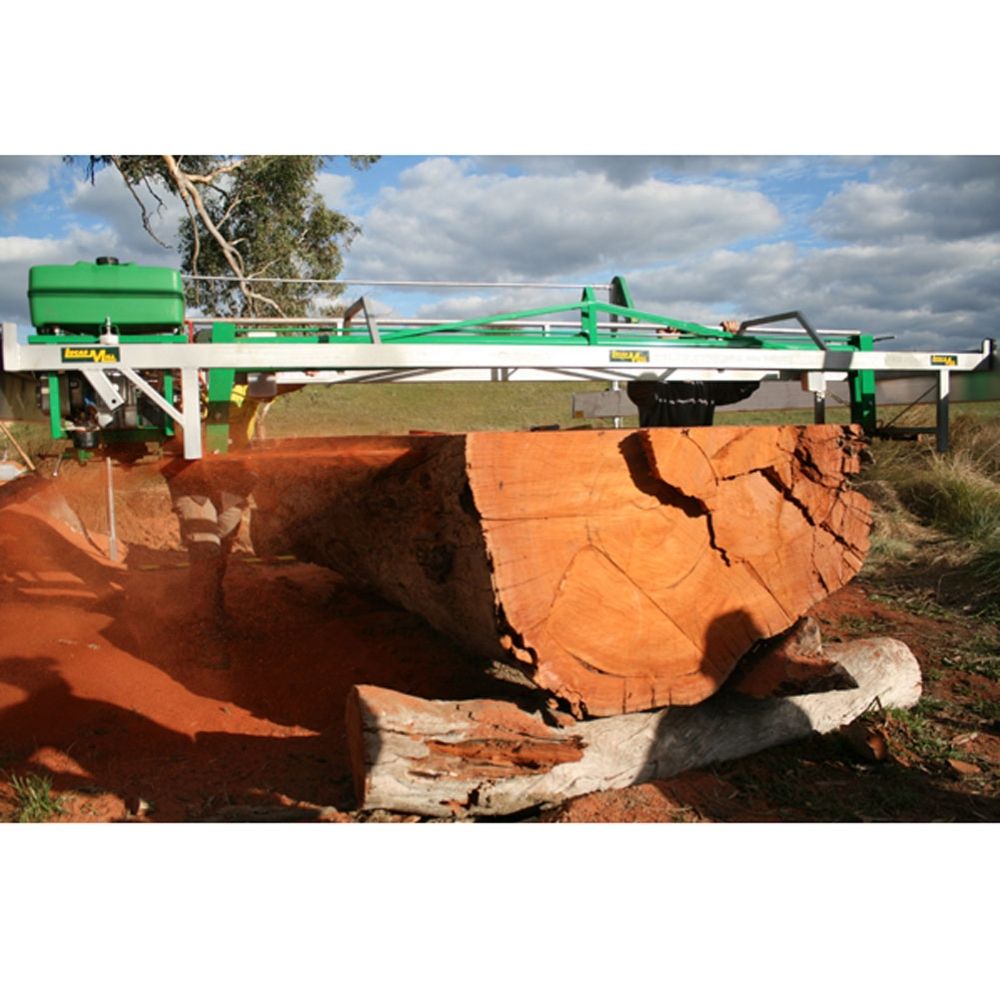

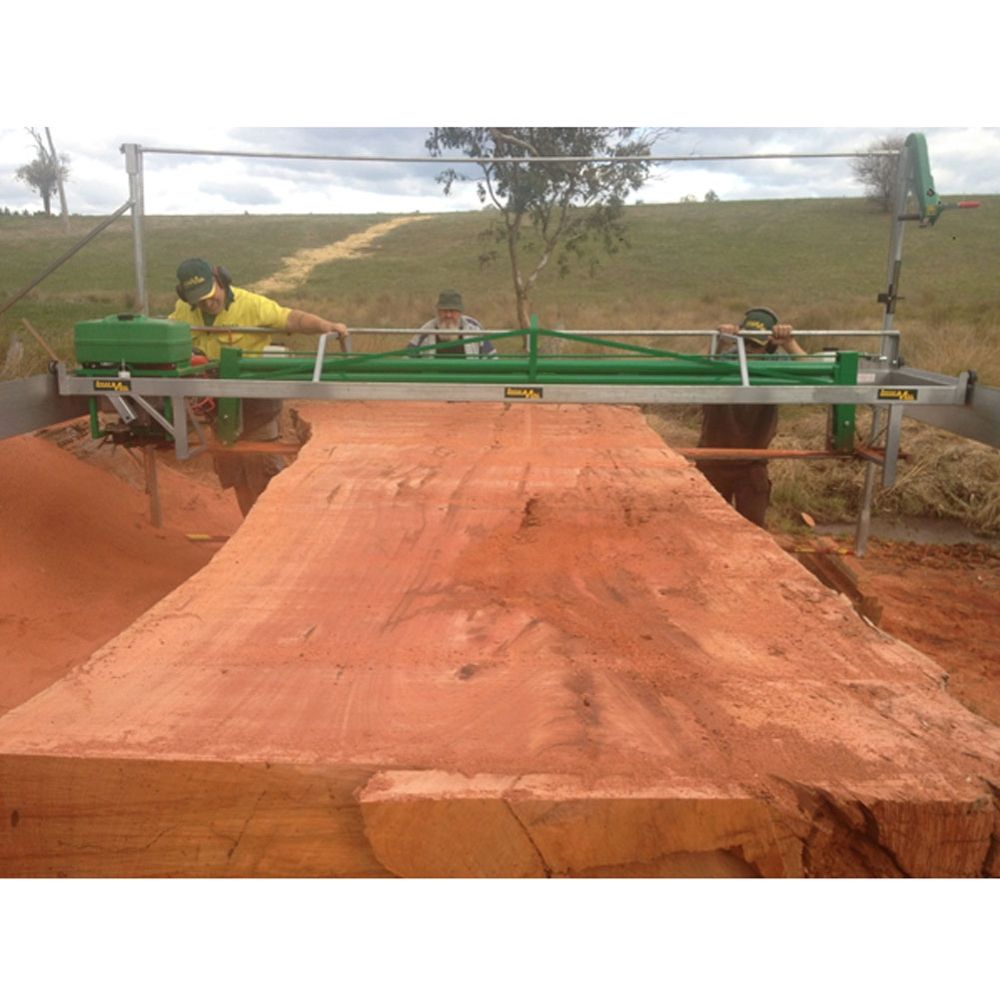

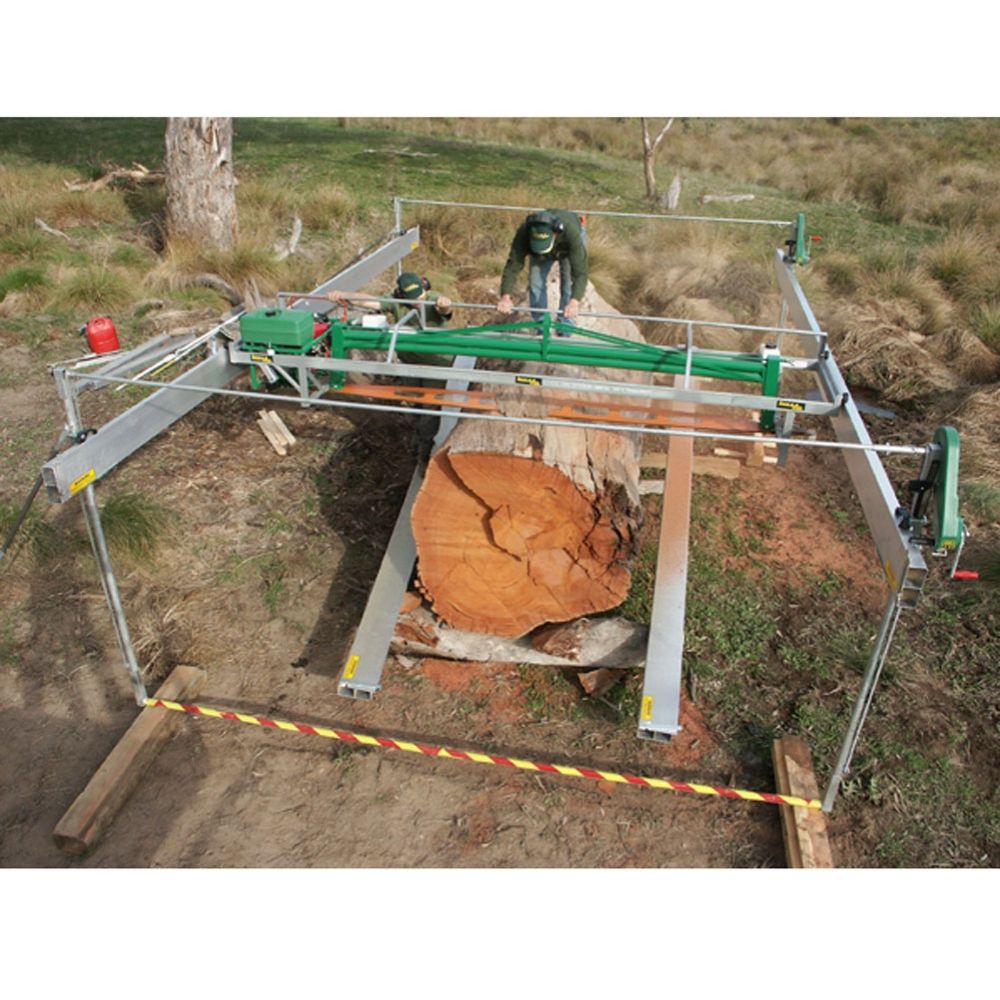

Lucas Mill Model DSM 23 Dedicated Super Slabber Sawmill (108" Maximum Cut)
Lucas Mill dedicated slabbing sawmills (also known as dedicated slabbers) are specifically designed for cutting large wood slabs. Dedicated slabbers use the patented Lucas Mill frame system to make setup and operation productive and simple. These machines create large, natural edges slabs from logs, stumps, burls and root balls with accurate results. Dedicated slabbers use specially designed ripping chainsaw chain to cut smooth and accurately through the largest and toughest of woods. The Model DSSM 23 is largest Lucas dedicated slabber we offer. Known as the "Super Slabber", this complete unit comes with an extra long bar that cuts up to a 108" wide slab, and up to 10.5" thick. Comes complete with 3 loops of 27RX slabbing chain (345 Drive Links).
Engine Briggs 23HP Electric/Manual Start Gas Engine
Transmission 5" Centrifugal Clutch with 40mm Shaft (2 Belt Drive)
Sawchain .404" Pitch With .335" Kerf (8.5mm)
Maximum Width Cut Up to 108" (2.7m)
Maximum Depth Cut Up to 10.5" (271mm)
Maximum Log Cutting Length Up to 20' (6.1m)*
Powerhead Weight 980 lbs (447kg)
Overall Weight 1,130 lbs (514kg)
Log Size Note* The Lucas Dedicated Slabber can cut virtually any length log by adding end-frames and rail extensions. Many customers have cut timbers over 40' (13m) long.
Transmission 5" Centrifugal Clutch with 40mm Shaft (2 Belt Drive)
Sawchain .404" Pitch With .335" Kerf (8.5mm)
Maximum Width Cut Up to 108" (2.7m)
Maximum Depth Cut Up to 10.5" (271mm)
Maximum Log Cutting Length Up to 20' (6.1m)*
Powerhead Weight 980 lbs (447kg)
Overall Weight 1,130 lbs (514kg)
Log Size Note* The Lucas Dedicated Slabber can cut virtually any length log by adding end-frames and rail extensions. Many customers have cut timbers over 40' (13m) long.
Specs
Engine Briggs 23HP Electric/Manual Start Gas Engine
Transmission 5" Centrifugal Clutch with 40mm Shaft (2 Belt Drive)
Sawchain .404" Pitch With .335" Kerf (8.5mm)
Maximum Width Cut Up to 108" (2.7m)
Maximum Depth Cut Up to 10.5" (271mm)
Maximum Log Cutting Length Up to 20' (6.1m)*
Powerhead Weight 980 lbs (447kg)
Overall Weight 1,130 lbs (514kg)
Log Size Note* The Lucas Dedicated Slabber can cut virtually any length log by adding end-frames and rail extensions. Many customers have cut timbers over 40' (13m) long.
Transmission 5" Centrifugal Clutch with 40mm Shaft (2 Belt Drive)
Sawchain .404" Pitch With .335" Kerf (8.5mm)
Maximum Width Cut Up to 108" (2.7m)
Maximum Depth Cut Up to 10.5" (271mm)
Maximum Log Cutting Length Up to 20' (6.1m)*
Powerhead Weight 980 lbs (447kg)
Overall Weight 1,130 lbs (514kg)
Log Size Note* The Lucas Dedicated Slabber can cut virtually any length log by adding end-frames and rail extensions. Many customers have cut timbers over 40' (13m) long.
Warranty
3 Year Warranty
