LogRite T30 Tractor Skidding Arch

SKU
TA030

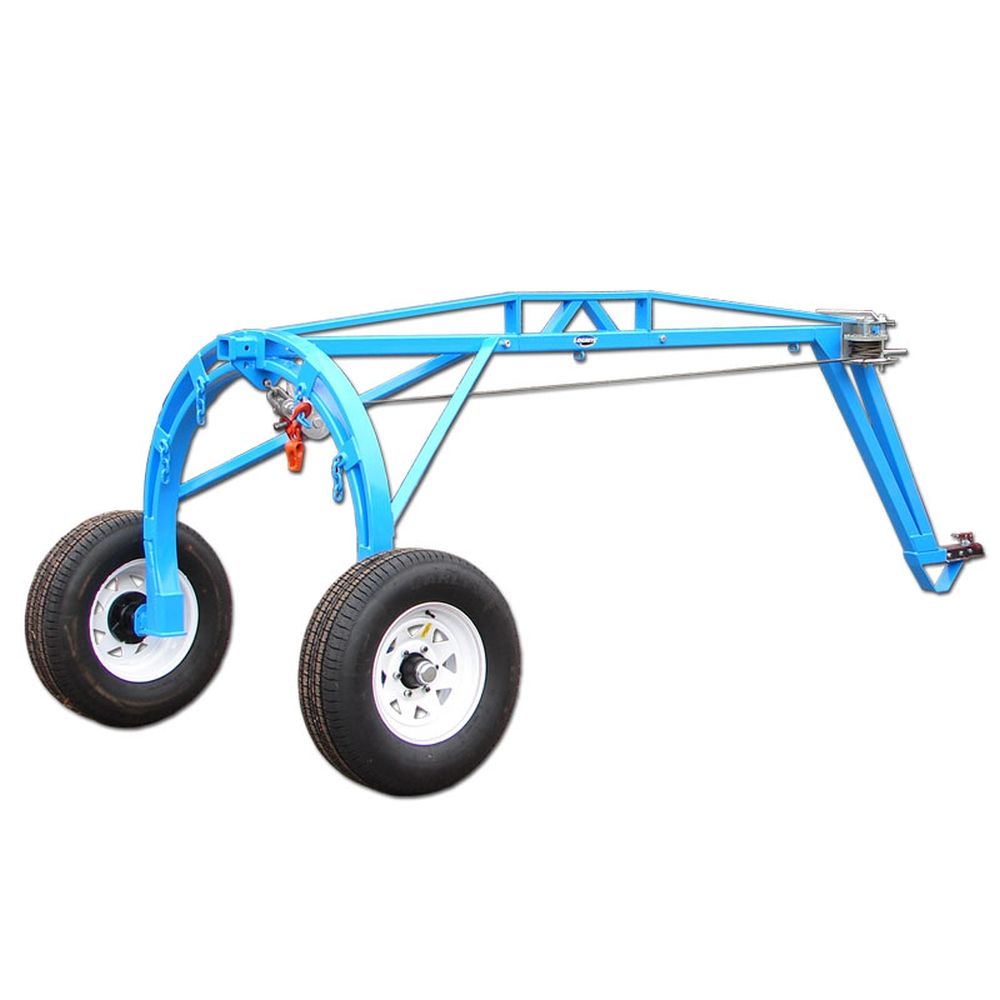

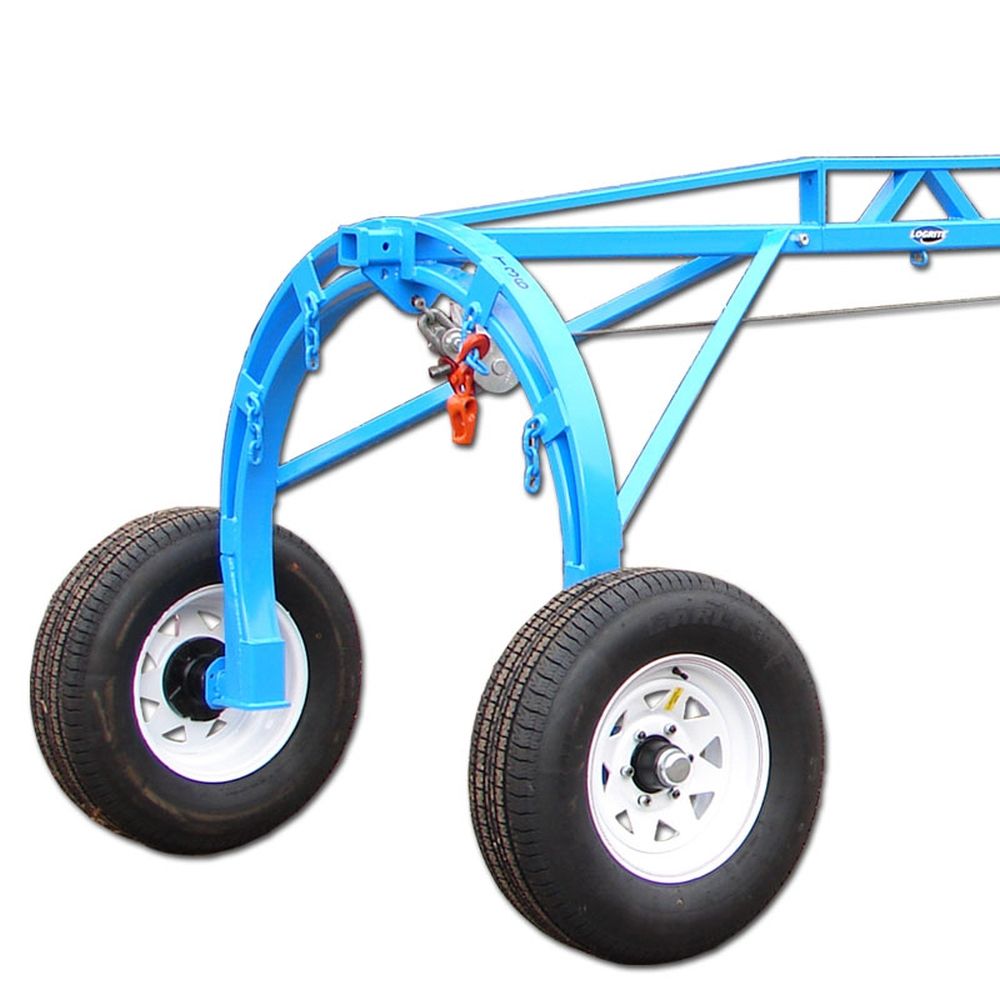

The Tractor Arches are designed to be used with tractors in demanding forestry and urban situations. The Tractor Arches are super strong and come in two sizes. The T30 (shown here) is built to handle logs 30" in diameter and weighing up to 4000 pounds. For bigger jobs there is the T36 (sold separately) which will handle a 36" diameter log that weighs up to 6000 pounds. The T30 has an 8' reach and is capable of carrying a 16' log fully suspended. The T36 has a 9' reach and is capable of carrying a 18' log. Either of the arches are capable of carrying a 30' or longer log when using a Fetching Arch as the tag axle to pick up the tail. To use the Tractor Arch simply back the arch over the log and use the provided winch and choker line to hoist the log into place. Both sizes are equipped with a standard 3,200 lbs. 2 speed hand winch and 3/8" choker line. Like ATV Arches, these Tractor arches takes advantage of the doubling feature to help reduce the power needed to lift the log. The Tractor Arches have a two inch ball and can be placed behind tractors and pick-up trucks. They can be moved to different locations using a car or ATV. The arch is designed so that the weight of the log is carried in the arch over the wheels this keeps the tongue weight minimal.
NOTE: Heavy item - Please call 1-800-322-4539 for a shipping quote.
$2,699.99
Shipping Weight 442.0 lbs.

Please contact our Industrial Sales Group at 1-888-465-8227 for ordering and shipping information.

  • USA.png
Specifications:
  • Log Capacity: 30"
  • Length Capacity: 16 fully suspended
  • Weight Capacity: 4000 pounds
  • Tire Size: 30" outside diameter
  • Arch Width: 70"
  • Arch Height: 69"
  • Arch Weight: 442 lbs
