Item # 17715

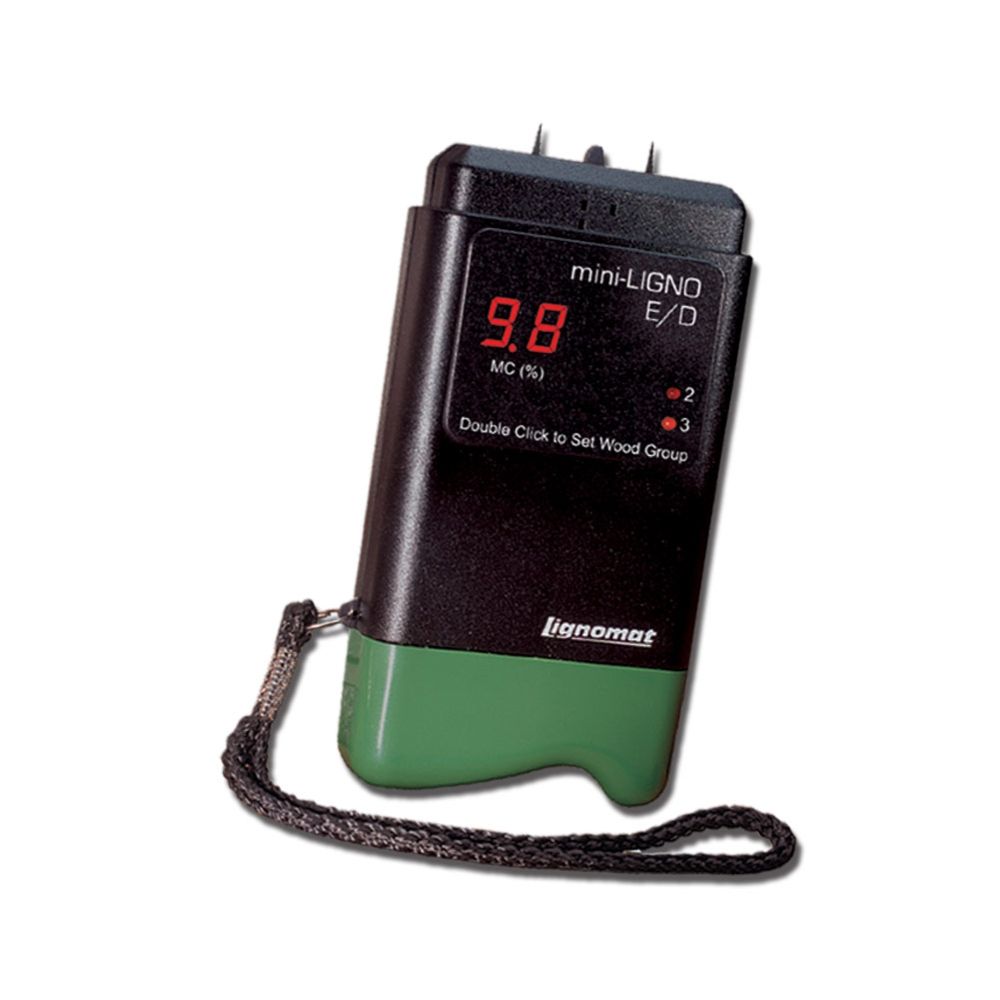

Lignomat E/D Mini Moisture Meter
$139.99
In Stock
Professional moisture meter from Lignomat. Lignomat moisture meters are used to measure the moisture content in wood. Simply push the pins into the wood fiber for an accurate reading. The moisture range is low enough for cabinet makers, professional woodworkers and hardwood floor installers and high enough for construction lumber, wood turning, pallet making, forest fire prevention and testing of firewood. Corrections for 2 wood groupings softwood and hardwood and panel products are built-in. The mini-Ligno E/D moisture meter has a bright, easy-to-read, digital display. The functionally designed mini-Ligno E/D fits in your hand when measuring and is small enough to carry in a shirt-pocket. The green cap covers the pins during transportation and serves as a handle when pushing the pins into the wood. This unique design allows pushing behind the entire meter to insert the tapered pins easily. Longer pins are stored inside the meter for measuring thicker material. The short pins are ideal for surface or end cut readings and for veneer. The unique on-off switch between the pins, turns meter on automatically and bright LED lights instantly indicate moisture percentage.
- Measuring Range: 6-45%
- Resolution: 0.1% for values below 10% and 1% steps above 10%
- Species Corrections: 2 settings for wood species corrections with LED indicator
- Calibration Check: The calibration is internally checked and automatically adjusted if necessary
- Pins: 2pair of pins, measuring depth of 3/16" and 7/16" (5,10mm)
- Size: pocket-size 2 3/4"x 5"x1" (70x140x25mm)
- Weight: 8 ounces (200g), made out of high-impact plastic
- Included: 2 pair of pins, measuring depth of 3/16″ and 7/16″ (5,10 mm). Wrist strap and pouch, one 9V battery, manual and laminated wood group chart.
Specs
- Measuring Range: 6-45%
- Resolution: 0.1% for values below 10% and 1% steps above 10%
- Species Corrections: 2 settings for wood species corrections with LED indicator
- Calibration Check: The calibration is internally checked and automatically adjusted if necessary
- Pins: 2pair of pins, measuring depth of 3/16" and 7/16" (5,10mm)
- Size: pocket-size 2 3/4"x 5"x1" (70x140x25mm)
- Weight: 8 ounces (200g), made out of high-impact plastic
- Included: 2 pair of pins, measuring depth of 3/16″ and 7/16″ (5,10 mm). Wrist strap and pouch, one 9V battery, manual and laminated wood group chart.
Warranty
2 Year Warranty
