Item # KOT SL2420

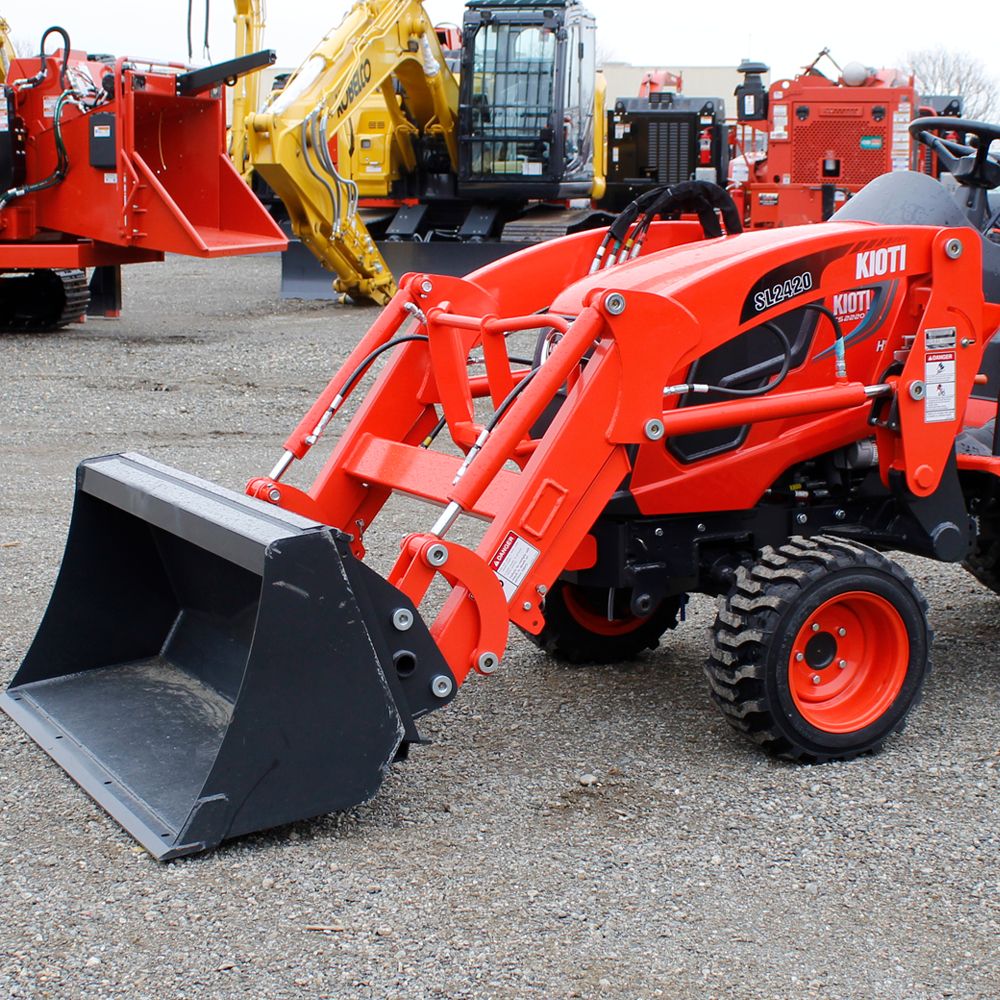

Kioti SL2420 Front End Loader w/48" Quick Attach Bucket & Grill Guard
The Kioti SL2420 Loader w/48" Quick Attach Bucket & Grill Guard is specifically designed for the CS20 Series Sub-Compact Tractors. The arched low profile maximizes operator's visibility and is well matched with unique hood style. The entire loader (except mounting) can be quickly attached and detached from tractor. A built-in parking stand on the front end loader provides quick and easy connection. Mid-mount style frame for engine accessibility.
Fits the Following Kioti Models CS2220, CS2520
Maximum Lift Height 73.7"
Clearance w/Bucket Level 68.1"
Clearance w/Bucket Dumped 54.8"
Reach At Maximum Height 29.7"
Maximum Dump Angle 38°
Reach w/Bucket on Ground 52.8"
Maximum Rollback Angle 27°
Maximum Lift Height 73.7"
Clearance w/Bucket Level 68.1"
Clearance w/Bucket Dumped 54.8"
Reach At Maximum Height 29.7"
Maximum Dump Angle 38°
Reach w/Bucket on Ground 52.8"
Maximum Rollback Angle 27°
Specs
Fits the Following Kioti Models CS2220, CS2520
Maximum Lift Height 73.7"
Clearance w/Bucket Level 68.1"
Clearance w/Bucket Dumped 54.8"
Reach At Maximum Height 29.7"
Maximum Dump Angle 38°
Reach w/Bucket on Ground 52.8"
Maximum Rollback Angle 27°
Maximum Lift Height 73.7"
Clearance w/Bucket Level 68.1"
Clearance w/Bucket Dumped 54.8"
Reach At Maximum Height 29.7"
Maximum Dump Angle 38°
Reach w/Bucket on Ground 52.8"
Maximum Rollback Angle 27°
