Item # KOT KL5521QA72 M0713

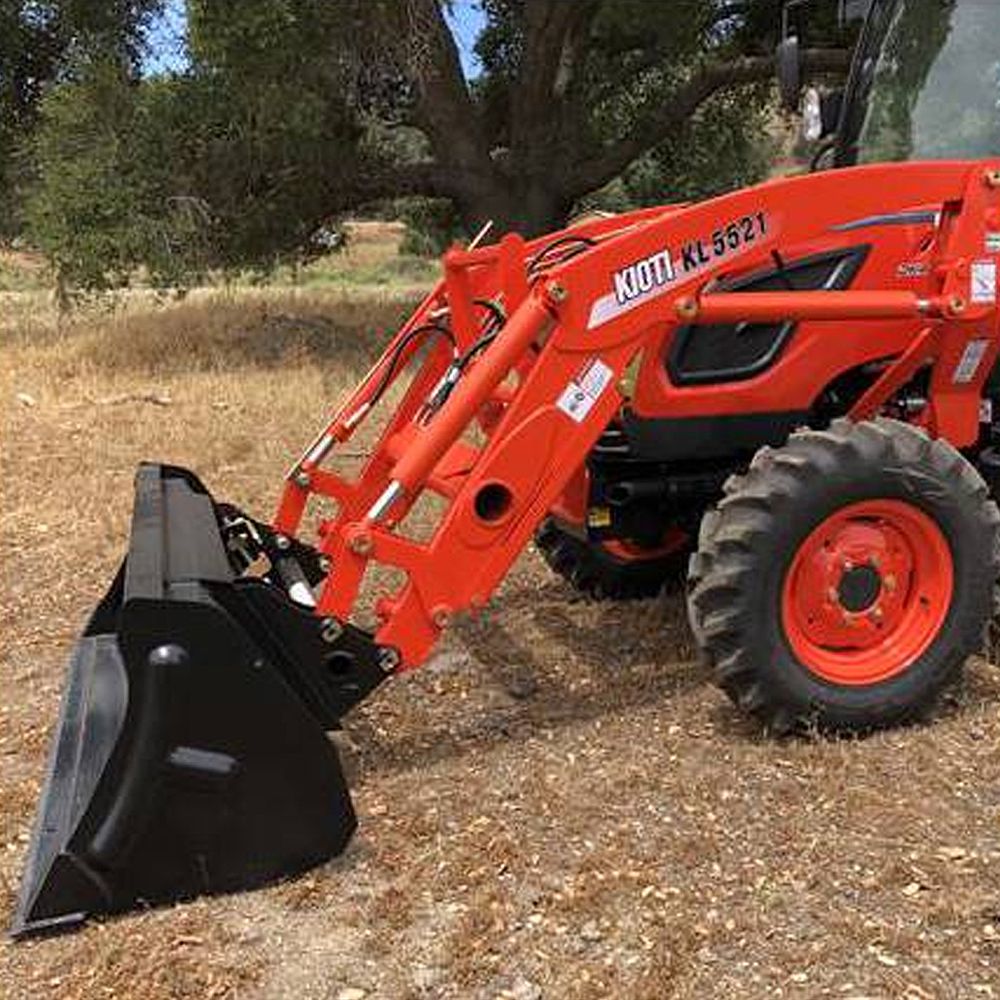

Kioti KL5521 Front End Loader w/72" Quick Attach Bucket & Grill Guard (M0713)
In Stock
The KIOTI KL5521 front end loader is specifically designed for the DK10 Series and ROPS models of the DK10SE Series. The KIOTI loader, with a built-in parking stand, is designed to be quickly and easily attached and detached. KL Series loaders utilize the tractor’s hydraulic system, feature single-lever control with float and come with a bucket level indicator.
Maximum Lift Height to Pivot Pin 107.7"
Clearance w/Bucket Level 96.3"
Clearance w/Bucket Dumped 78.8"
Reach at Maximum Height 45° 22.7"
Maximum Dump Angle 46°
Reach w/Bucket on Ground 71.1"
Maximum Rollback Angle 41°
Approximate Weight (With Bucket) 1,389 lbs
Bucket Capacity (Heaped) 16.0 cu ft
Clearance w/Bucket Level 96.3"
Clearance w/Bucket Dumped 78.8"
Reach at Maximum Height 45° 22.7"
Maximum Dump Angle 46°
Reach w/Bucket on Ground 71.1"
Maximum Rollback Angle 41°
Approximate Weight (With Bucket) 1,389 lbs
Bucket Capacity (Heaped) 16.0 cu ft
Specs
Maximum Lift Height to Pivot Pin 107.7"
Clearance w/Bucket Level 96.3"
Clearance w/Bucket Dumped 78.8"
Reach at Maximum Height 45° 22.7"
Maximum Dump Angle 46°
Reach w/Bucket on Ground 71.1"
Maximum Rollback Angle 41°
Approximate Weight (With Bucket) 1,389 lbs
Bucket Capacity (Heaped) 16.0 cu ft
Clearance w/Bucket Level 96.3"
Clearance w/Bucket Dumped 78.8"
Reach at Maximum Height 45° 22.7"
Maximum Dump Angle 46°
Reach w/Bucket on Ground 71.1"
Maximum Rollback Angle 41°
Approximate Weight (With Bucket) 1,389 lbs
Bucket Capacity (Heaped) 16.0 cu ft
