Item # KOT KL2510QA2

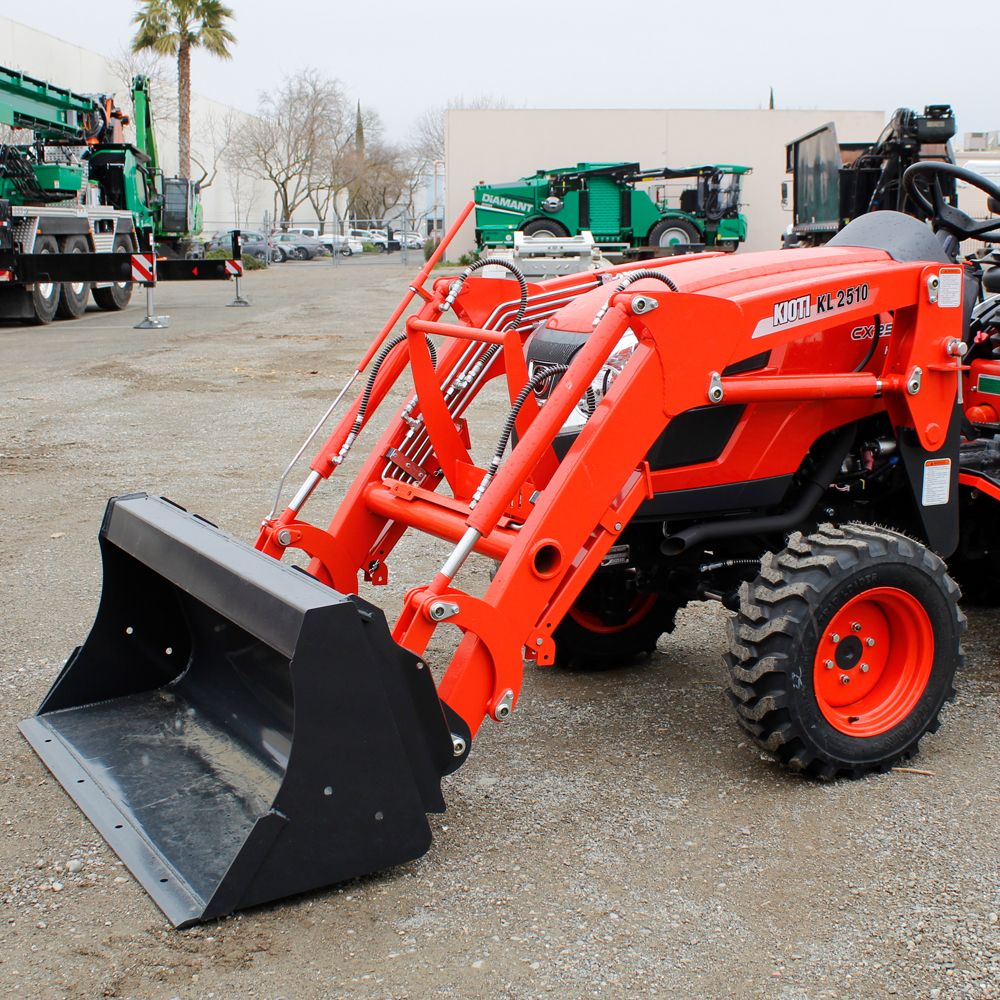

Kioti KL2510 Front End Loader w/50" Quick Attach Bucket & Grill Guard
The KIOTI KL2510 front end loader is specifically designed for the CX2510 tractors, providing efficient performance with single lever joystick control. The KIOTI loader, with a built-in parking stand, is designed to be quickly and easily attached and detached. KL Series loaders utilize the tractor’s hydraulic system, feature single-lever control with float and come with a bucket level indicator.
Maximum Lift Height to Pivot Pin 87.8"
Clearance w/Attachment Level 84.3"
Clearance w/Attachment Dumped 67.2"
Reach at Maximum Height 31.5"
Maximum Dump Angle 53°
Reach w/Bucket on Ground 59"
Maximum Rollback Angle 33°
Clearance w/Attachment Level 84.3"
Clearance w/Attachment Dumped 67.2"
Reach at Maximum Height 31.5"
Maximum Dump Angle 53°
Reach w/Bucket on Ground 59"
Maximum Rollback Angle 33°
Specs
Maximum Lift Height to Pivot Pin 87.8"
Clearance w/Attachment Level 84.3"
Clearance w/Attachment Dumped 67.2"
Reach at Maximum Height 31.5"
Maximum Dump Angle 53°
Reach w/Bucket on Ground 59"
Maximum Rollback Angle 33°
Clearance w/Attachment Level 84.3"
Clearance w/Attachment Dumped 67.2"
Reach at Maximum Height 31.5"
Maximum Dump Angle 53°
Reach w/Bucket on Ground 59"
Maximum Rollback Angle 33°
