Item # KOT CK3520HST

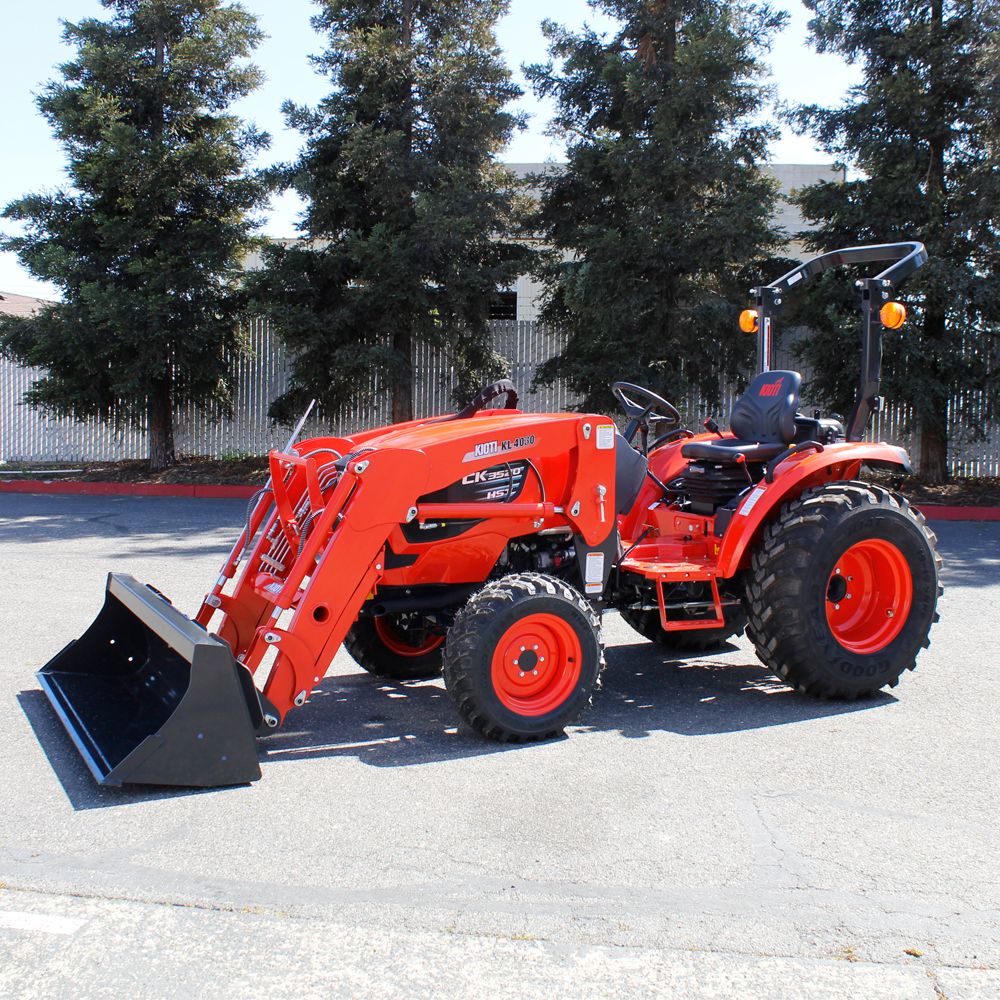

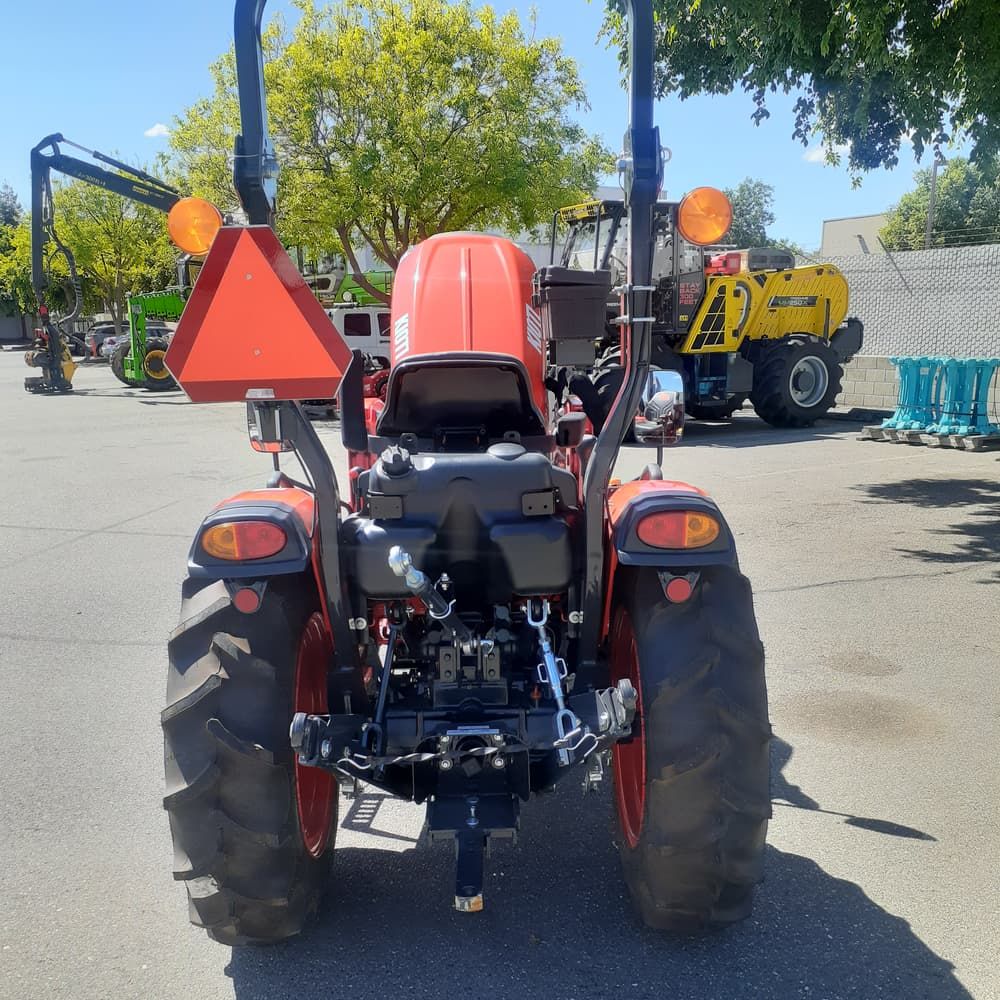

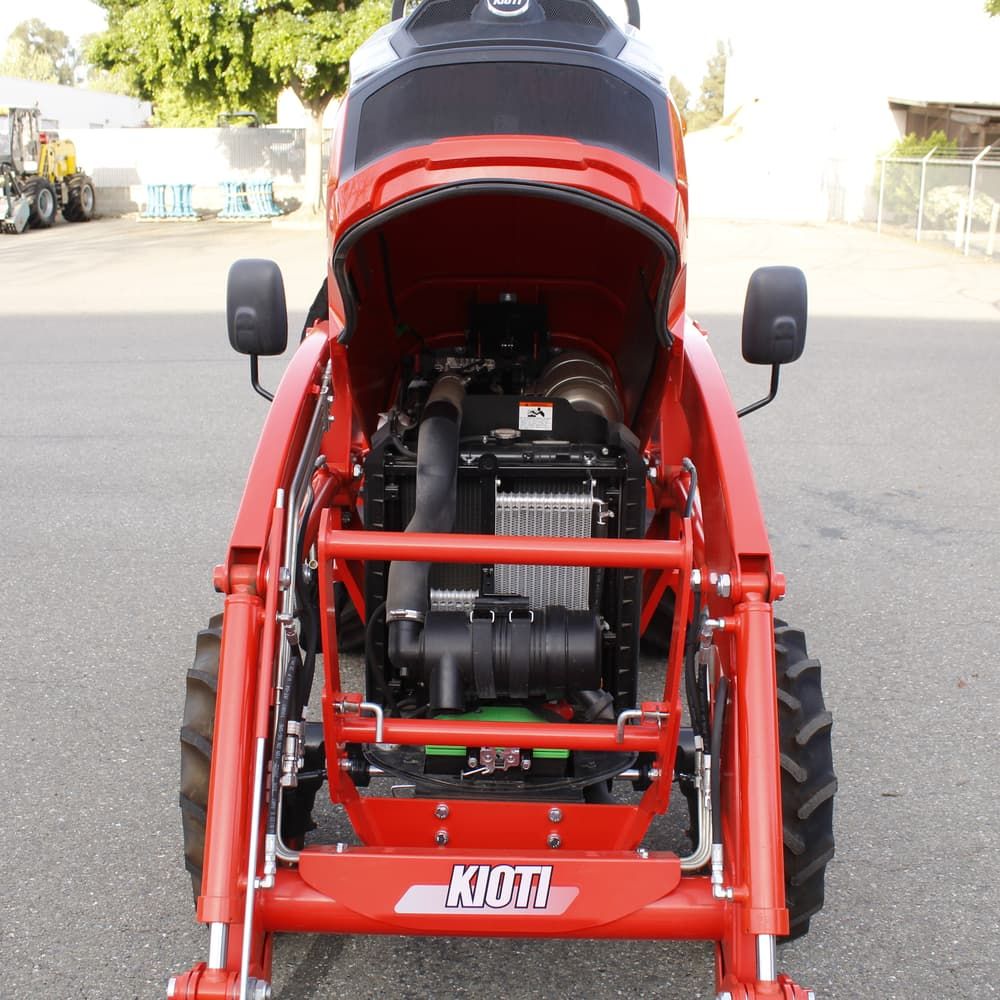

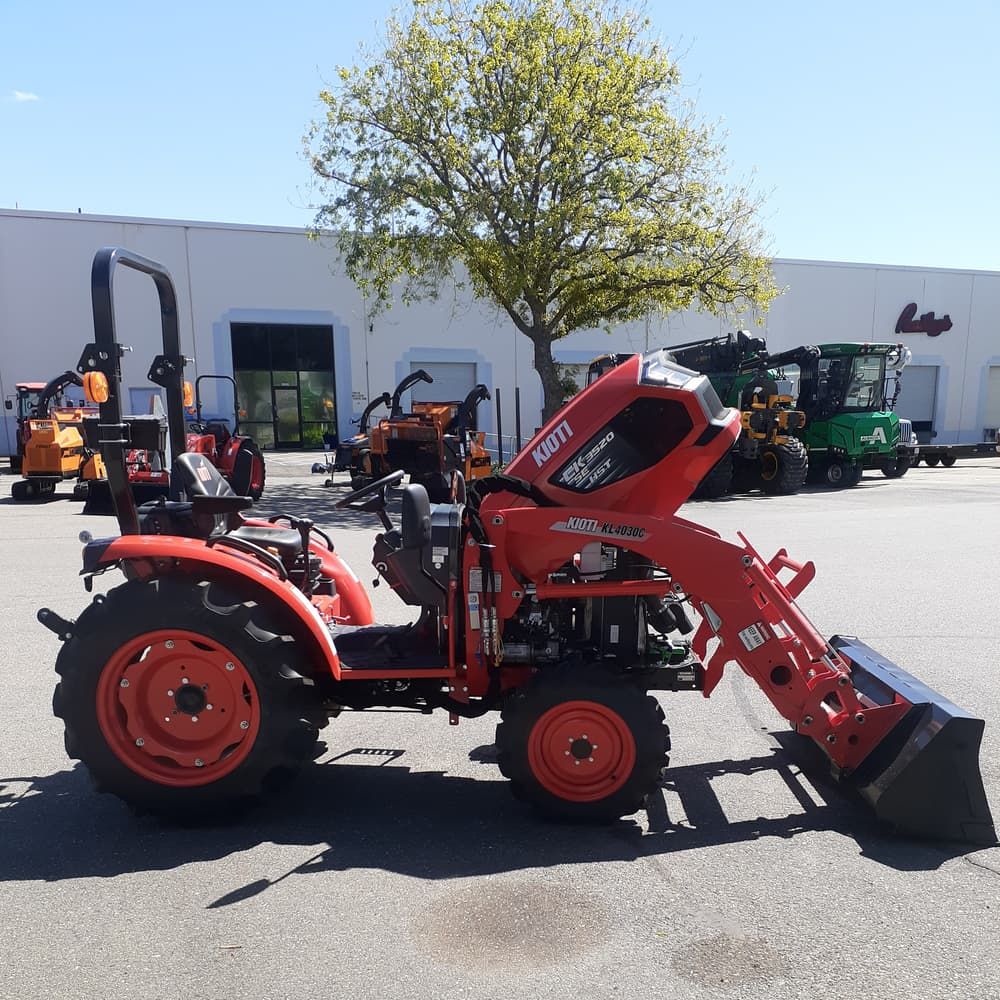

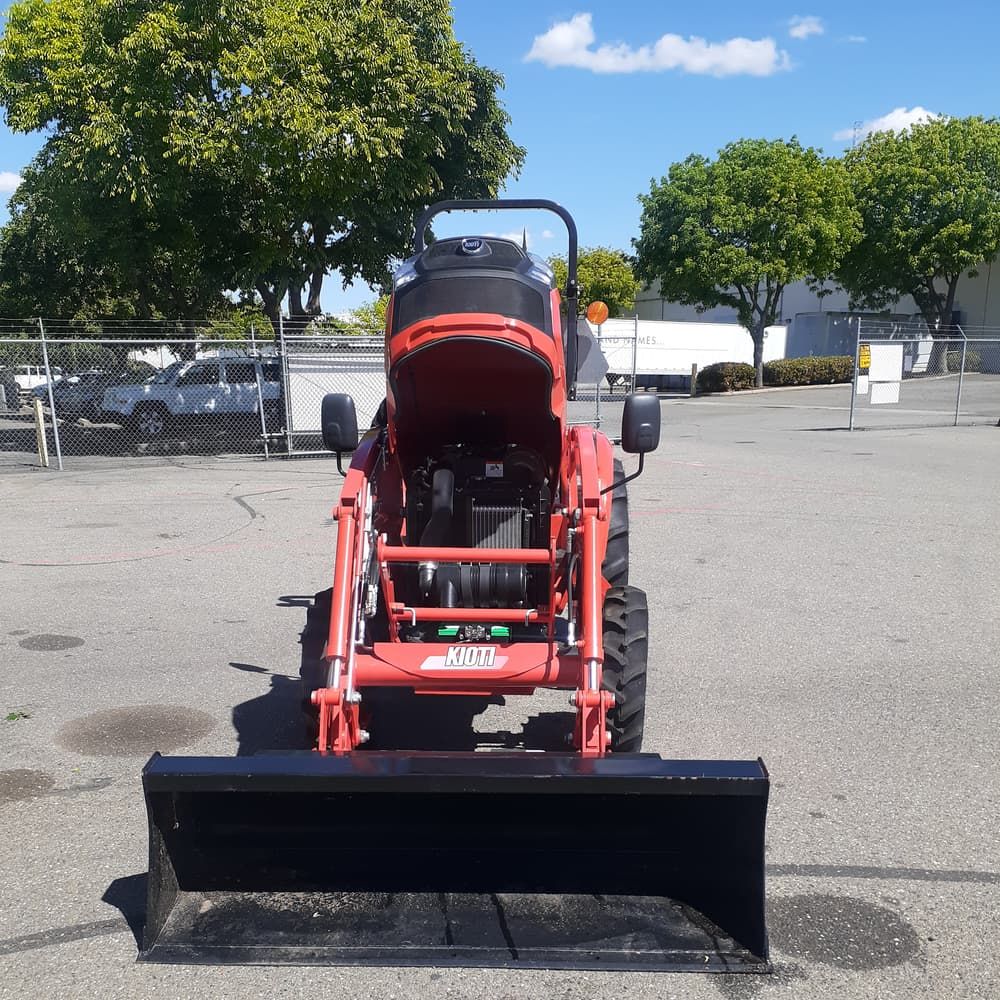

Kioti CK3520 HST Hydrostatic Tractor (35 HP Diesel Engine)
The Kioti CK3520 HST is the mid-power CK: 34.9 HP of Tier 4 diesel with the same compact chassis, 3-range hydrostatic drive, and enough hydraulic flow to run a loader and rear implement together. It is the volume seller of the compact class for good reason.
- 34.9 HP KIOTI diesel: Tier 4 compliant, quiet, fuel efficient
- 3-range hydrostatic drive: twin-pedal control with infinite speeds per range
- Factory-matched attachments: KL4030 loader and KB2475L backhoe fit the CK Series
- Runs 72-inch implements: cutters, tillers, and box scrapers in the 20-45 HP class
- Ergonomic station: single-lever joystick and smooth 3-point control lever
In stock at Bailey's - talk to a Kioti specialist before you buy. Bailey's stocks Kioti tractors, UTVs, and attachments and coordinates delivery straight to your property. Call our Equipment team at (707) 600-6696 for model guidance, financing from 6.99% APR, and freight quotes.
Engine KIOTI 3-cylinder diesel, model 3H-TM4A
Power 34.90 hp (26 kW)
Displacement 111.40 cu. in. (1,826 cc)
Fuel Capacity 9 gal (34 L)
Transmission Hydrostatic
Max Forward Speed 14.90 mph (23.94 km/h)
PTO Power 28.90 hp (21.60 kW)
Rear PTO Speed 540 rpm
Mid PTO Speed 2,000 rpm (Optional)
Hydraulic Pump Capacity 11.70 gpm (44.40 lpm)
Hydraulic Lift Capacity 1,631 lb (740 kg)
Three-Point Hitch Lift Capacity 1,631 lb (740 kg)
Three-Point Hitch Category Category 1
Weight 2,734 lb (1,240 kg)
Wheelbase 65.70 in (1,670 mm)
Ground Clearance 13.40 in (340 mm)
Turning Radius 8.96 ft (2.73 m)
Brand KIOTI (Daedong)
Series CK20 Series compact
Specs
Engine KIOTI 3-cylinder diesel, model 3H-TM4A
Power 34.90 hp (26 kW)
Displacement 111.40 cu. in. (1,826 cc)
Fuel Capacity 9 gal (34 L)
Transmission Hydrostatic
Max Forward Speed 14.90 mph (23.94 km/h)
PTO Power 28.90 hp (21.60 kW)
Rear PTO Speed 540 rpm
Mid PTO Speed 2,000 rpm (Optional)
Hydraulic Pump Capacity 11.70 gpm (44.40 lpm)
Hydraulic Lift Capacity 1,631 lb (740 kg)
Three-Point Hitch Lift Capacity 1,631 lb (740 kg)
Three-Point Hitch Category Category 1
Weight 2,734 lb (1,240 kg)
Wheelbase 65.70 in (1,670 mm)
Ground Clearance 13.40 in (340 mm)
Turning Radius 8.96 ft (2.73 m)
Brand KIOTI (Daedong)
Series CK20 Series compact
