Item # RP303A1
ISC HALO Rigging Plate (Medium)
$89.99

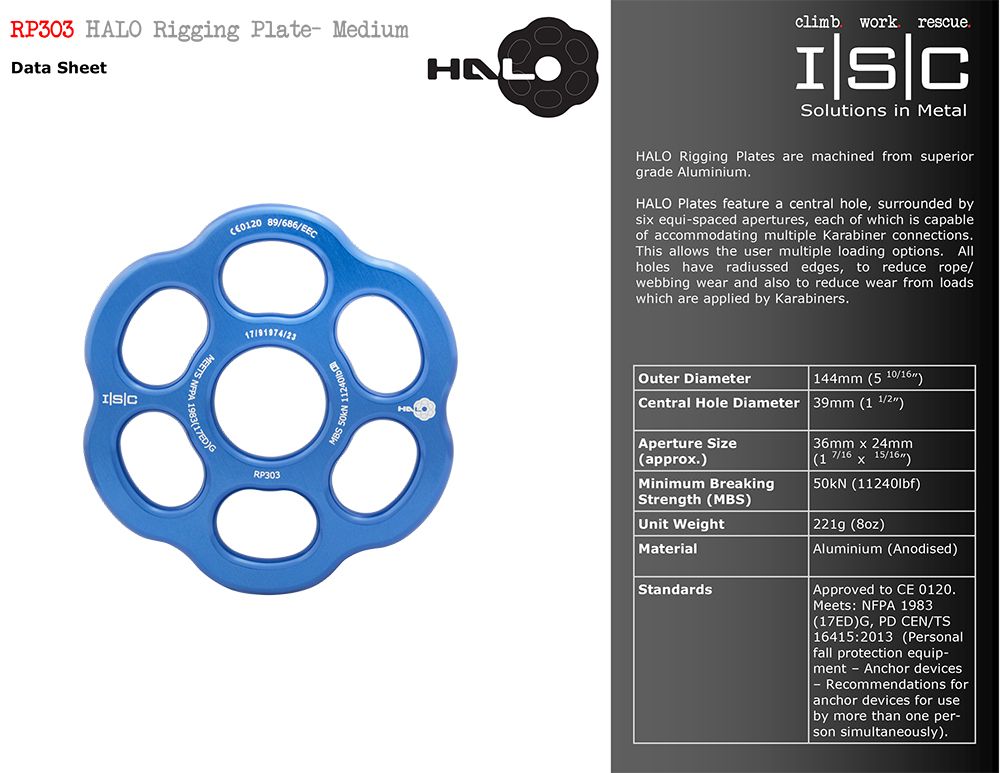

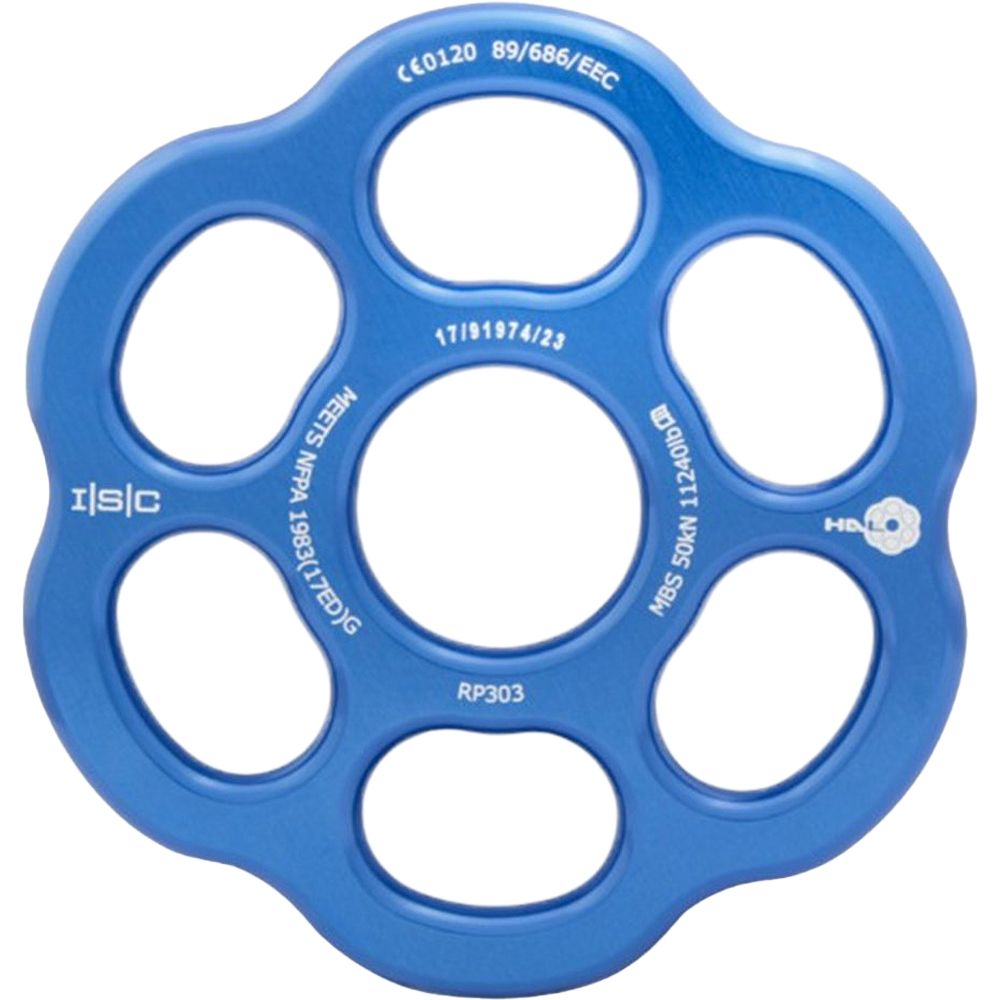

HALO Rigging Plates form part of a compatible system and were developed to match the ratings on their carabiners and prussik pulleys, at 40kN (8,992lbf), 50kN (11,240lbf) and 70kN (15,736lbf).
Each plate is manufactured from aerospace grade Aluminium and feature uniquely shaped apertures which allow for loading with multiple carabiners simultaneously. CNC machined radiused edges make the apertures rope and webbing friendly.
Each plate is manufactured from aerospace grade Aluminium and feature uniquely shaped apertures which allow for loading with multiple carabiners simultaneously. CNC machined radiused edges make the apertures rope and webbing friendly.
- ColorBlue
Minimum Breaking Strength (kN) 50
Minimum Breaking Strength (lbf) 11,240
Finish Anodised
Width 144 mm
Width 5-10/16"
Approved Standards 89/686/EEC, NFPA 1983 (17ED)G
Minimum Breaking Strength (lbf) 11,240
Finish Anodised
Width 144 mm
Width 5-10/16"
Approved Standards 89/686/EEC, NFPA 1983 (17ED)G
Specs
- ColorBlue
Minimum Breaking Strength (kN) 50
Minimum Breaking Strength (lbf) 11,240
Finish Anodised
Width 144 mm
Width 5-10/16"
Approved Standards 89/686/EEC, NFPA 1983 (17ED)G
Minimum Breaking Strength (lbf) 11,240
Finish Anodised
Width 144 mm
Width 5-10/16"
Approved Standards 89/686/EEC, NFPA 1983 (17ED)G
