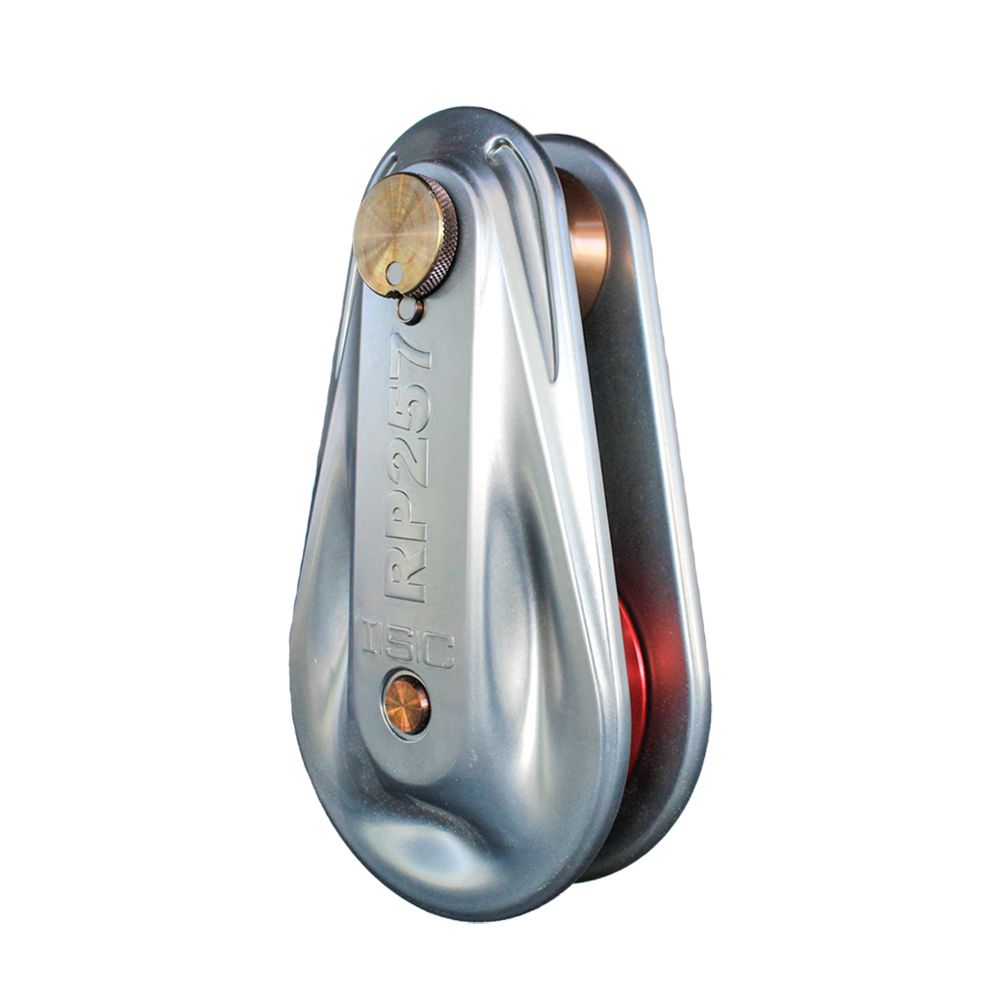

ISC Large Rigging Pulley (1" Rope) RP257A1

The ISC 200 Series Pulleys are redesigned versions of the popular ISC arborist blocks with a new SafeLock mechanism and improved strength. Using state-of-the-art stress analysis programs, the hot-forged aluminum frames are optimized for the forces arborists put on their blocks, and the unique axle and frame interlocking design means that these pulleys are up to 150% stronger than their predecessors. The Patent Pending SafeLock system is an updated version of the ISC SpringLock design that provides an extremely low profile along with the same quick opening action.
Shipping Weight 11.0 lbs.

In stock
Dimensions 156 x 283 x 95 mm
Maximum Rope Diameter 1" (26mm)
Minimum Breaking Strength 380 kN (85,427 lbf)
Working Load Limit (WLL) 76 kN (17,085 lbf)
Locking Mechanism Low-Profile Springlock w/Safelock Button
Weight 11 lbs. (5kg)
Certifications CE Machinery Directive 2006/42/EC, UKCA Supply of Machinery (Safety) Regulations 2008
