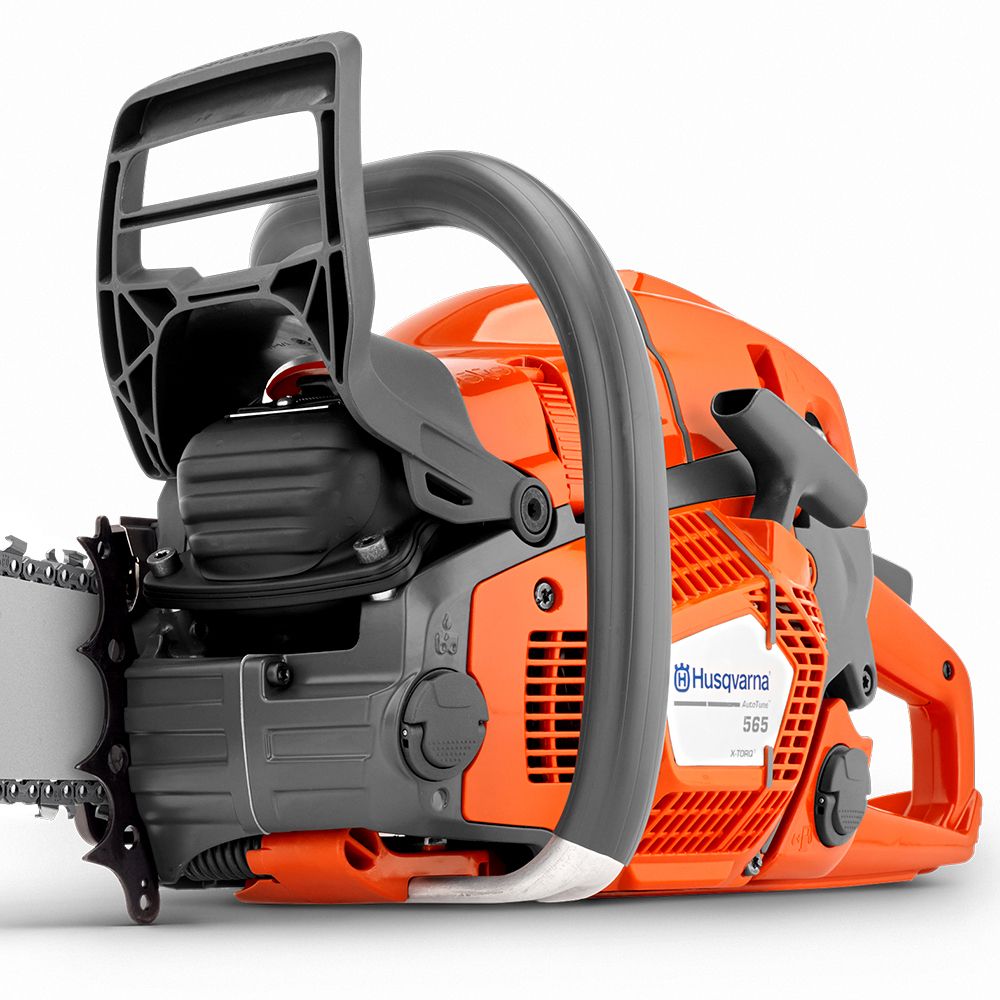

Husqvarna 565 (71cc) Chainsaw With 24" Bar & Chain

SKU
HVF 565 24
Promising next-generation cutting performance, the Husqvarna 565 lets you work faster and more efficiently with longer guide bars. Excellent cooling capacity and state-of-the art filtration empower you to tackle the most demanding tasks. Equipped with revamped AutoTune™ and Air Injection™ and offering low vibrations, the 565 is a powerful yet ergonomically designed chainsaw for fast, safe work.

Features:

  • Better manoeuvrability gives full control: The front handle bar position is close to the center of gravity, giving you better cutting control.
  • Better chip ejection avoids clogging: The clutch cover is designed to optimise rapid, safe saw chip ejection. Prevents clogging, even when cutting long fibre wood.
  • 10 times quicker air/fuel mix adjustment: AutoTune™ ensures a correctly tuned engine setting and optimised engine performance in all conditions.
  • Air Injection filters 98% of incoming dust: Give you full working days with maintained performance and less wear on the engine.
  • Low vibrations: Husqvarna's anti vibration system efficiently separates your hands from the vibrations generated by the engine and the cutting equipment. This is to protect your body but also to reduce the fatigue in your arms and hands and in the end of the day contribute to make your workday more productive.
  • Soft cut-out system: The innovative system for engine control is designed for providing a long engine life. The system monitors the engine and assures that the engine always is protected from over-revving.
  • Flip up tank caps: Easy to open and secure firmly, even when wearing thick winter gloves.
  • Visible fuel level : Transparent fuel indicator makes it easy to check fuel level.
  • Felling sight to last a lifetime: Perfect sight is critical when felling - so we made one that will outlast the chainsaw itself.


  • Only available for sale in the United States.
    For more information on Husqvarna Power Equipment, Parts and Availability, Please Call our Specialists Toll-Free at 1-800-322-4539.
    Shipping Weight 20.0 lbs.

    Please call 1-800-322-4539 for ordering information.

    • .375INKICKBACK_IC.PNG
    • .050INKICKBACK_IC.PNG
    More Information
    Chainsaw Bar & Chain Combo
    Length 24" (60cm)
    Pitch 3/8" (.375)
    Gauge .050" (1.3mm)
    Drive Link Count 84 Drive Links
      Dimensions
    • Description: Cold intake manifold
    • Weight (excl. cutting equipment): 14.3 lbs / 6.5 kg
    • Handle type: Standard
      Engine
    • Clutch engagement speed (±120): 3800 rpm
    • Cylinder displacement: 4.3 cu.inch / 70.6 cm³
    • Electrode gap: 0.02 in / 0.5 mm
    • Engine Family: KHVXS.0715AH
    • Fuel consumption: 3.5 lbs/h / 1.63 kg/h
    • Fuel tank volume: 23.7 fl oz / 0.7
    • Idling speed: 2700 rpm
    • Ignition module air gap: 0.01 in / 0.3 mm
    • Maximum power speed: 9300 rpm
    • Power output: 5.0 hp / 3.7 kW
    • Power/fuel type: Gasoline
    • Spark plug: Champion RCJ7Y
    • Torque, max: 4.2 Nm
    • Torque, max. at rpm: 6900 rpm
      Equipment
    • Bar mount type: Large
    • Chain speed at 133% of maximum engine power speed: 27.5 m/s
    • Chain Pitch/Gauge/Drive Link Count: 3/8"/.050/72 (C83-72)
    • Chainsaw Bar: 24" Powermatch (HT-380-84)
    • Recommended bar length: 15" - 28"
    • Sprocket type: Rim 7
      Lubricant
    • Lubricant type: Husqvarna 2 stroke or equiv. at 50:1
    • Oil pump type: Adjustable flow, no flow at idle
    • Oil tank volume: 0.7 US pint / 0.35
      Sound and Noise
    • Sound power level, guaranteed (LWA): 119 dB(A)
    • Sound power level, measured: 117 dB(A)
    • Sound pressure level at operators ear: 105 dB(A)
      Vibration
    • Equivalent vibration level (ahv, eq) front handle: 5.2 m/s²
    • Equivalent vibration level (ahv, eq) rear handle: 5.3 m/s²
      Emission
    • Exhaust emissions (CO average): 227.51 g/kWh
    • Exhaust emissions (HC average): 53.87 g/kWh
    • Exhaust emissions (NOx average): 2.33 g/kWh
    • Exhaust emissions (CO₂ average): 804 g/kWh
    WARNING: This saw chain may be capable of kickback that could result in serious injury to the chainsaw operator or bystanders. Do not use this chain unless you have experience and specialized training for dealing with kickback. Saw chain with reduced kickback potential is available.
