Item # DNA SC16

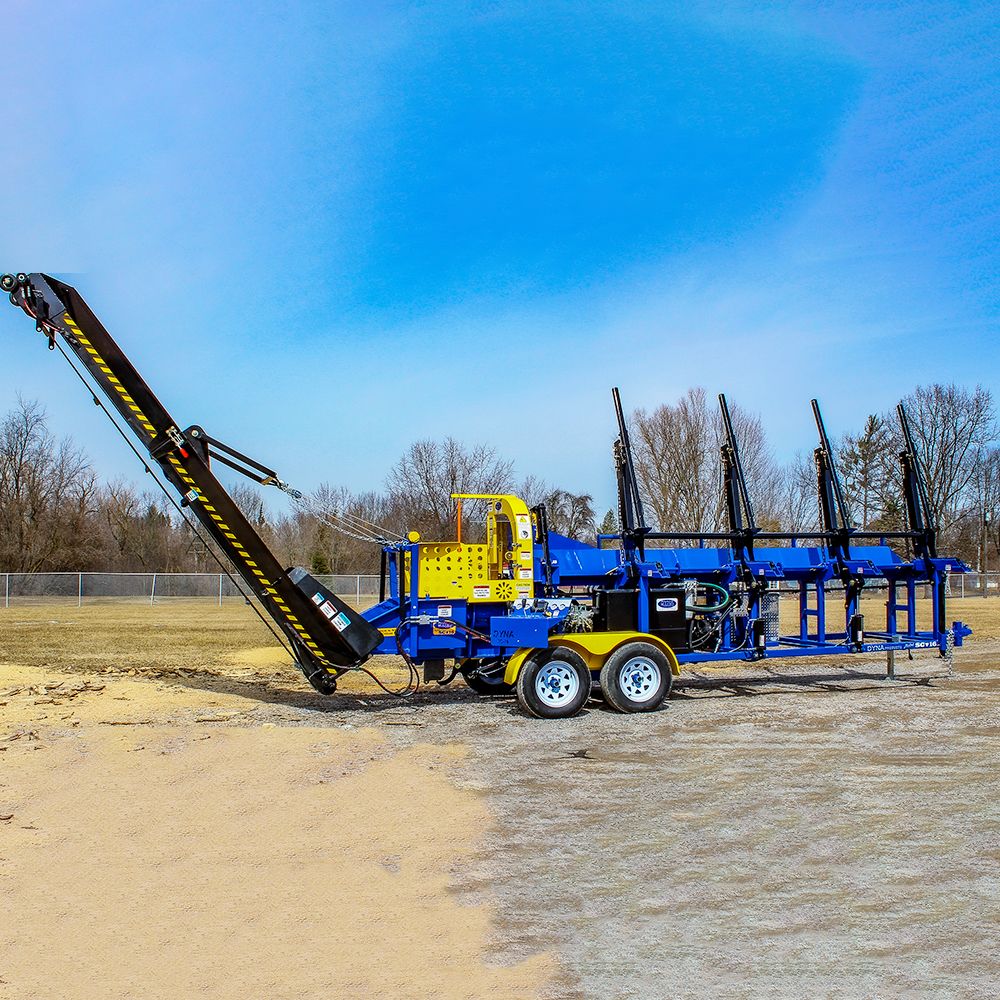

Dyna SC-16 Firewood Processor - SC-16
Dyna firewood processors are known for their simple operation and durable construction. The Dyna SC-16 is the highest output firewood processor made by Dyna. This trailer mounted processor comes complete with a 12' conveyor belt and log infeed deck. The 49HP Cat diesel motor allows you to process up to four cords of firewood per hour with nice logs. A heavy duty harvester bar and chain quickly cuts logs up to 22" in diameter and up to 16' long. The log splitter comes with a 4-way wedge to make quick work of the rounds (optional 6-way and 8-way wedges are available). Logs are loaded into the machine and advanced into the cutting position with a simple chain system. Once the saw bar and clamp are engaged by the operator, the hydraulic saw motor starts automatically. Overall weight is 6,500 lbs, which is easily towable.
Engine 49HP Tier 4 Cat Diesels
Log Loading Hydraulic Deck Lifter
Hydraulic Pump Flow 10-22-28 Gallons Per Minute
Splitting Cycle Time 4 Seconds
Log Diameter 16" (22" Max)
Log Length 16'
Maximum Finished Cut Piece 30"
Transport Dimensions W - 78”, L - 266"
Weight 6,500 lbs
Bar .404” Harvester 752HSFN104/752SMRR104
Chain .404” Harvester 18HX089E
Standard Splitting 4-Way
Optional Splitting 6-Way, 8-Way
Log Loading Hydraulic Deck Lifter
Hydraulic Pump Flow 10-22-28 Gallons Per Minute
Splitting Cycle Time 4 Seconds
Log Diameter 16" (22" Max)
Log Length 16'
Maximum Finished Cut Piece 30"
Transport Dimensions W - 78”, L - 266"
Weight 6,500 lbs
Bar .404” Harvester 752HSFN104/752SMRR104
Chain .404” Harvester 18HX089E
Standard Splitting 4-Way
Optional Splitting 6-Way, 8-Way
Specs
Engine 49HP Tier 4 Cat Diesels
Log Loading Hydraulic Deck Lifter
Hydraulic Pump Flow 10-22-28 Gallons Per Minute
Splitting Cycle Time 4 Seconds
Log Diameter 16" (22" Max)
Log Length 16'
Maximum Finished Cut Piece 30"
Transport Dimensions W - 78”, L - 266"
Weight 6,500 lbs
Bar .404” Harvester 752HSFN104/752SMRR104
Chain .404” Harvester 18HX089E
Standard Splitting 4-Way
Optional Splitting 6-Way, 8-Way
Log Loading Hydraulic Deck Lifter
Hydraulic Pump Flow 10-22-28 Gallons Per Minute
Splitting Cycle Time 4 Seconds
Log Diameter 16" (22" Max)
Log Length 16'
Maximum Finished Cut Piece 30"
Transport Dimensions W - 78”, L - 266"
Weight 6,500 lbs
Bar .404” Harvester 752HSFN104/752SMRR104
Chain .404” Harvester 18HX089E
Standard Splitting 4-Way
Optional Splitting 6-Way, 8-Way
