Item # DNA SC15

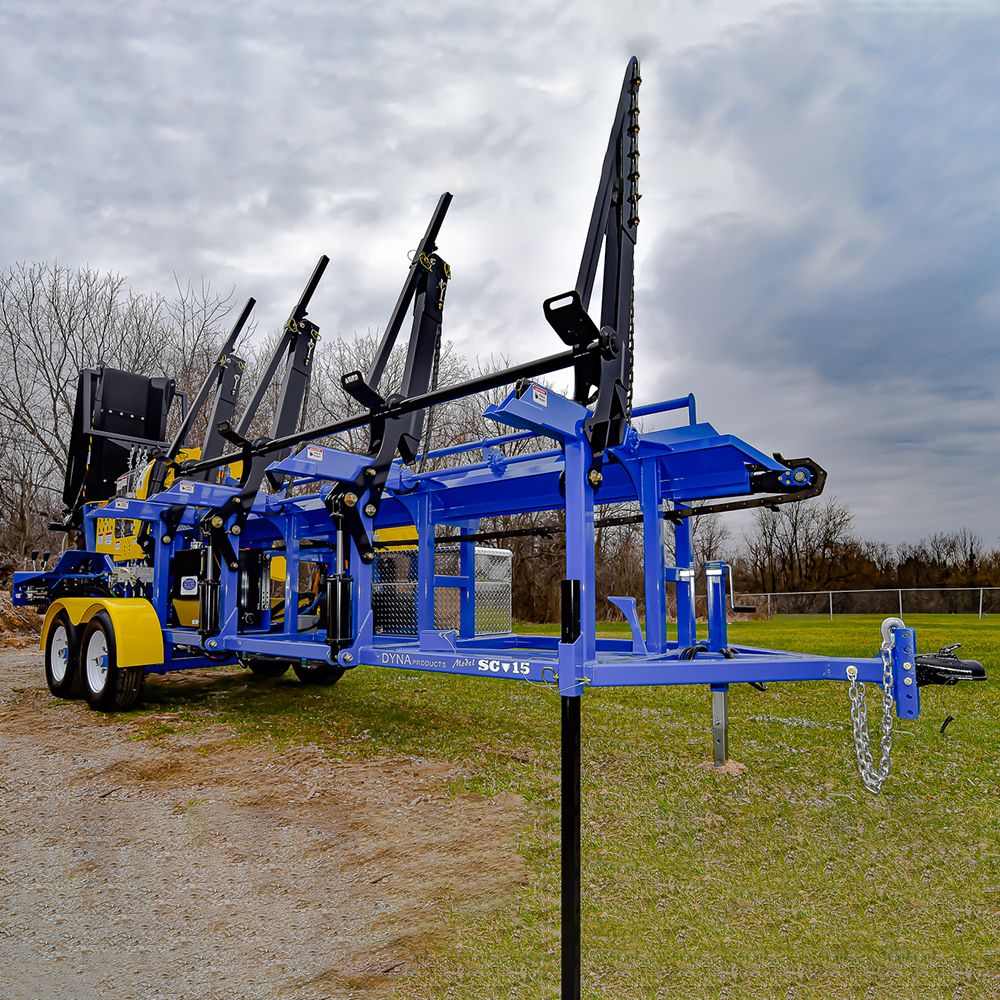

Dyna SC-15 Firewood Processor (40HP Tier 4 Cat Diesel) - SC-15
Dyna firewood processors are known for their simple operation and durable construction. The Dyna SC-15 is a high output firewood processor. This trailer mounted processor comes complete with a 12' conveyor belt and log infeed deck. The 38HP Kohler gas motor allows you to process up to three cords of firewood per hour with nice logs (40HP Cat Diesel optional). A heavy duty harvester bar and chain quickly cuts logs up to 22" in diameter and up to 16' long. The log splitter comes with a 4-way wedge to make quick work of the rounds (optional 6-way and 8-way wedges are available). Logs are loaded into the machine and advanced into the cutting position with a simple chain system. Once the saw bar and clamp are engaged by the operator, the hydraulic saw motor starts automatically. Overall weight is 5,800 lbs, which is easily towable.
Engine 40HP Tier 4 Cat Diesel
Log Loading Hydraulic Deck Lifter
Hydraulic Pump Flow 8-20 Gallons Per Minute
Splitting Cycle Time Less Then 7 Seconds
Log Diameter 16" (22" Max)
Log Length 16'
Maximum Finished Cut Piece 26"
Transport Dimensions W - 78”, L - 266"
Weight 5,800 lbs
Bar .404” Harvester 752HSFN104/752SMRR104
Chain .404” Harvester 18HX089E
Standard Splitting 4-Way
Optional Splitting 6-Way, 8-Way
Log Loading Hydraulic Deck Lifter
Hydraulic Pump Flow 8-20 Gallons Per Minute
Splitting Cycle Time Less Then 7 Seconds
Log Diameter 16" (22" Max)
Log Length 16'
Maximum Finished Cut Piece 26"
Transport Dimensions W - 78”, L - 266"
Weight 5,800 lbs
Bar .404” Harvester 752HSFN104/752SMRR104
Chain .404” Harvester 18HX089E
Standard Splitting 4-Way
Optional Splitting 6-Way, 8-Way
Specs
Engine 40HP Tier 4 Cat Diesel
Log Loading Hydraulic Deck Lifter
Hydraulic Pump Flow 8-20 Gallons Per Minute
Splitting Cycle Time Less Then 7 Seconds
Log Diameter 16" (22" Max)
Log Length 16'
Maximum Finished Cut Piece 26"
Transport Dimensions W - 78”, L - 266"
Weight 5,800 lbs
Bar .404” Harvester 752HSFN104/752SMRR104
Chain .404” Harvester 18HX089E
Standard Splitting 4-Way
Optional Splitting 6-Way, 8-Way
Log Loading Hydraulic Deck Lifter
Hydraulic Pump Flow 8-20 Gallons Per Minute
Splitting Cycle Time Less Then 7 Seconds
Log Diameter 16" (22" Max)
Log Length 16'
Maximum Finished Cut Piece 26"
Transport Dimensions W - 78”, L - 266"
Weight 5,800 lbs
Bar .404” Harvester 752HSFN104/752SMRR104
Chain .404” Harvester 18HX089E
Standard Splitting 4-Way
Optional Splitting 6-Way, 8-Way
