Item # DNA SC14

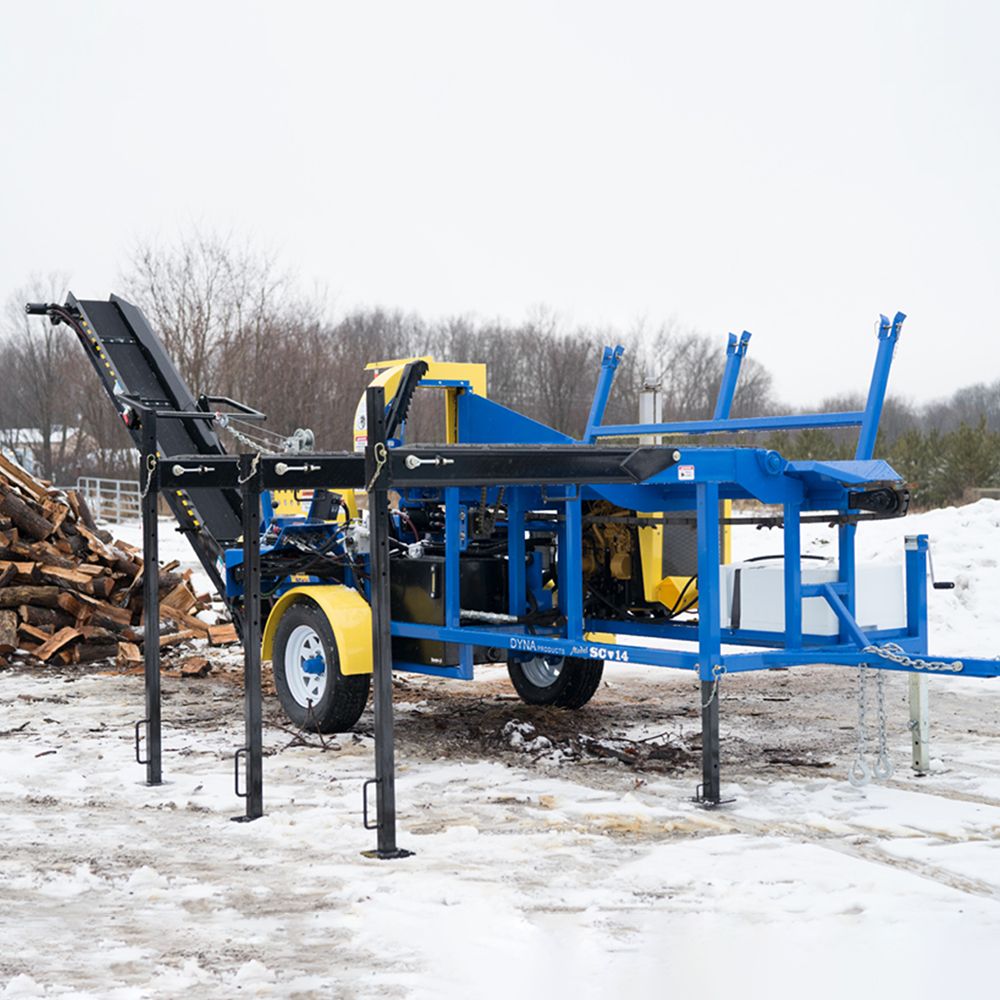

Dyna SC-14 Firewood Processor - SC-14
Dyna firewood processors are known for their simple operation and durable construction. The Dyna SC-14 is the most popular firewood processor. This trailer mounted processor comes complete with a 12' conveyor belt and log infeed deck. The 38HP Kohler gas motor allows you to process up to two cords of firewood per hour efficiently. A heavy duty harvester bar and chain quickly cuts logs up to 18" in diameter and up to 16' long. The log splitter comes with a 4-way wedge to make quick work of the rounds (optional 6-way and 8-way wedges are available). Logs are loaded into the machine and advanced into the cutting position with a simple chain system. Once the saw bar and clamp are engaged by the operator, the hydraulic saw motor starts automatically. Overall weight is 3,800 lbs, which is easily towable.
Engine 38HP EFI Kohler Gas
Log Loading Hydraulic Deck Lifter
Hydraulic Pump Flow 8-20 Gallons Per Minute
Splitting Cycle Time 7 Seconds
Log Diameter 14" (18" Max)
Log Length 12'
Maximum Finished Cut Piece 24"
Transport Dimensions W - 60”, L - 208"
Weight 3,800 lbs
Bar .404” Harvester 642HSFN104/642SMRR104
Chain .404” Harvester 18HX078E
Standard Splitting 4-Way
Optional Splitting 6-Way, 8-Way
Log Loading Hydraulic Deck Lifter
Hydraulic Pump Flow 8-20 Gallons Per Minute
Splitting Cycle Time 7 Seconds
Log Diameter 14" (18" Max)
Log Length 12'
Maximum Finished Cut Piece 24"
Transport Dimensions W - 60”, L - 208"
Weight 3,800 lbs
Bar .404” Harvester 642HSFN104/642SMRR104
Chain .404” Harvester 18HX078E
Standard Splitting 4-Way
Optional Splitting 6-Way, 8-Way
Specs
Engine 38HP EFI Kohler Gas
Log Loading Hydraulic Deck Lifter
Hydraulic Pump Flow 8-20 Gallons Per Minute
Splitting Cycle Time 7 Seconds
Log Diameter 14" (18" Max)
Log Length 12'
Maximum Finished Cut Piece 24"
Transport Dimensions W - 60”, L - 208"
Weight 3,800 lbs
Bar .404” Harvester 642HSFN104/642SMRR104
Chain .404” Harvester 18HX078E
Standard Splitting 4-Way
Optional Splitting 6-Way, 8-Way
Log Loading Hydraulic Deck Lifter
Hydraulic Pump Flow 8-20 Gallons Per Minute
Splitting Cycle Time 7 Seconds
Log Diameter 14" (18" Max)
Log Length 12'
Maximum Finished Cut Piece 24"
Transport Dimensions W - 60”, L - 208"
Weight 3,800 lbs
Bar .404” Harvester 642HSFN104/642SMRR104
Chain .404” Harvester 18HX078E
Standard Splitting 4-Way
Optional Splitting 6-Way, 8-Way
