Item # DNA SC12XP

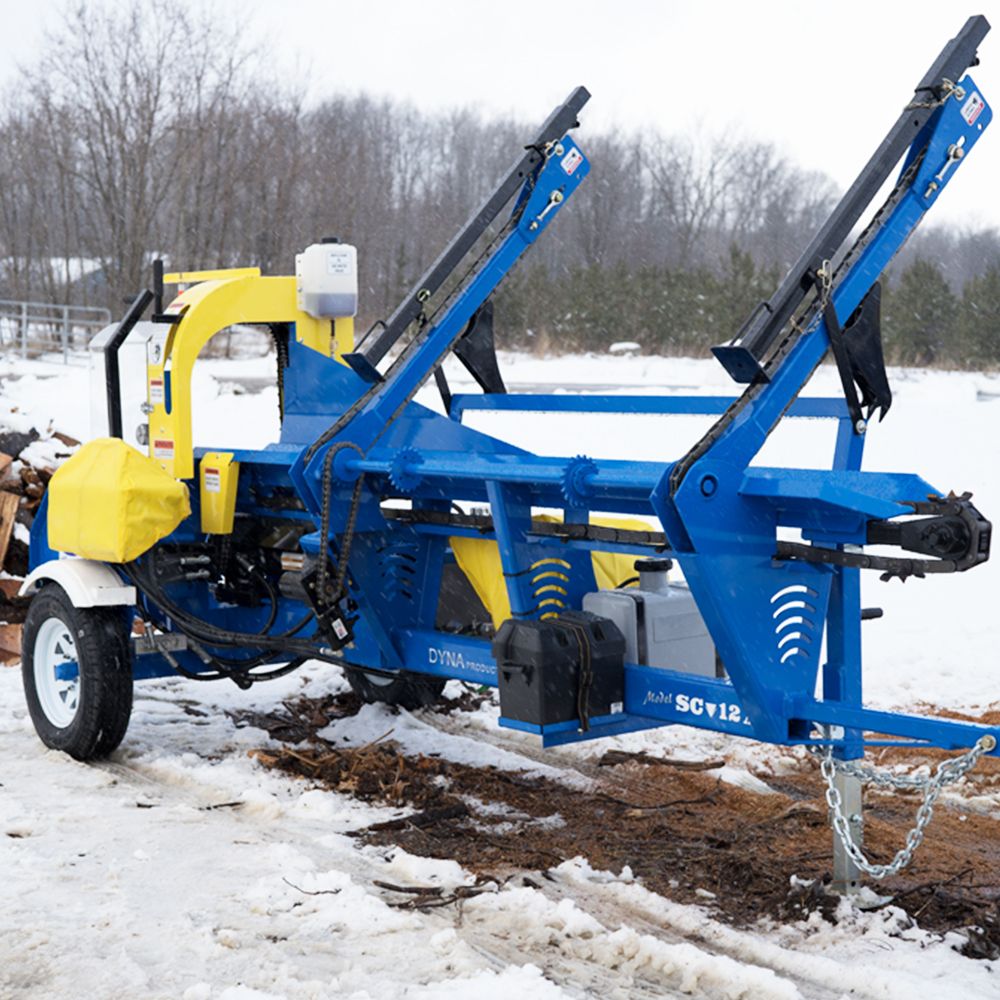

Dyna SC-12 XP Firewood Processor
Dyna firewood processors are known for their simple operation and durable construction. The Dyna SC-12 XP is an entry level firewood processor. This trailer mounted processor comes complete with a 10' conveyor belt and log infeed deck. The 20HP Honda motor allows you to process up to one full cord of firewood per hour efficiently. A heavy duty harvester bar and chain quickly cuts logs up to 15" in diameter and up to 16' long. The log splitter comes with a 4-way wedge to make quick work of the rounds (optional 6-way fixed wedge is available). Logs are loaded into the machine and advanced into the cutting position with a simple chain system. Once the saw bar and clamp are engaged by the operator, the hydraulic saw motor starts automatically.
Engine 20 HP Honda Gas (Electric Start)
Log Loading Hydraulic Log Lift Hydraulic
Pump Flow 13 Gallons Per Minute
Splitting Cycle Time 10 Seconds
Log Diameter 12" (15" Max)
Log Length 10'
Maximum Finished Cut Piece 24"
Transport Dimensions W - 52”, L - 190"
Weight 2,500 lbs
Bar .404” Harvester 542HSFN104/542SMRQ104
Chain .404” Harvester 18HX068E
Standard Splitting 4-Way
Optional Splitting 6-Way
Log Loading Hydraulic Log Lift Hydraulic
Pump Flow 13 Gallons Per Minute
Splitting Cycle Time 10 Seconds
Log Diameter 12" (15" Max)
Log Length 10'
Maximum Finished Cut Piece 24"
Transport Dimensions W - 52”, L - 190"
Weight 2,500 lbs
Bar .404” Harvester 542HSFN104/542SMRQ104
Chain .404” Harvester 18HX068E
Standard Splitting 4-Way
Optional Splitting 6-Way
Specs
Engine 20 HP Honda Gas (Electric Start)
Log Loading Hydraulic Log Lift Hydraulic
Pump Flow 13 Gallons Per Minute
Splitting Cycle Time 10 Seconds
Log Diameter 12" (15" Max)
Log Length 10'
Maximum Finished Cut Piece 24"
Transport Dimensions W - 52”, L - 190"
Weight 2,500 lbs
Bar .404” Harvester 542HSFN104/542SMRQ104
Chain .404” Harvester 18HX068E
Standard Splitting 4-Way
Optional Splitting 6-Way
Log Loading Hydraulic Log Lift Hydraulic
Pump Flow 13 Gallons Per Minute
Splitting Cycle Time 10 Seconds
Log Diameter 12" (15" Max)
Log Length 10'
Maximum Finished Cut Piece 24"
Transport Dimensions W - 52”, L - 190"
Weight 2,500 lbs
Bar .404” Harvester 542HSFN104/542SMRQ104
Chain .404” Harvester 18HX068E
Standard Splitting 4-Way
Optional Splitting 6-Way
