DMM Small Impact Forged Aluminum Arborist Rigging Block (5/8

DMM Small Impact Forged Aluminum Arborist Rigging Block (5/8" Rope) IMB-S

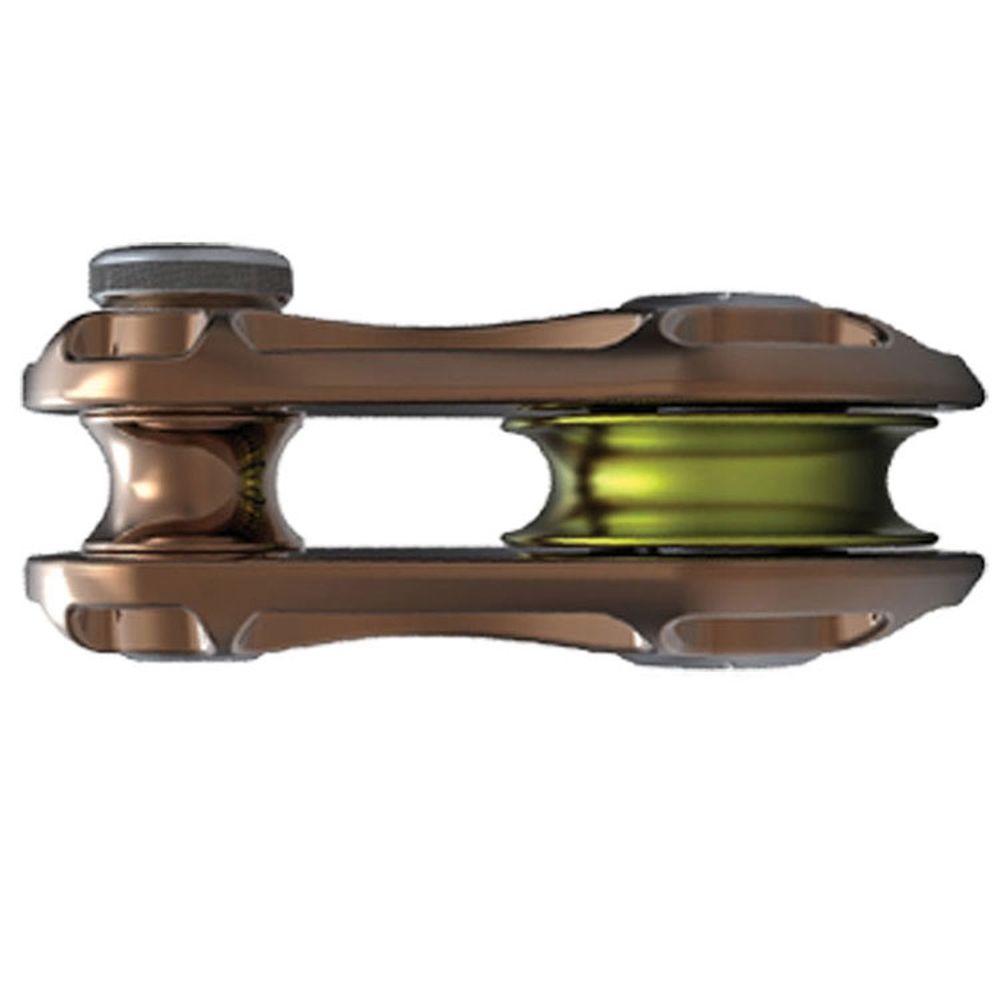

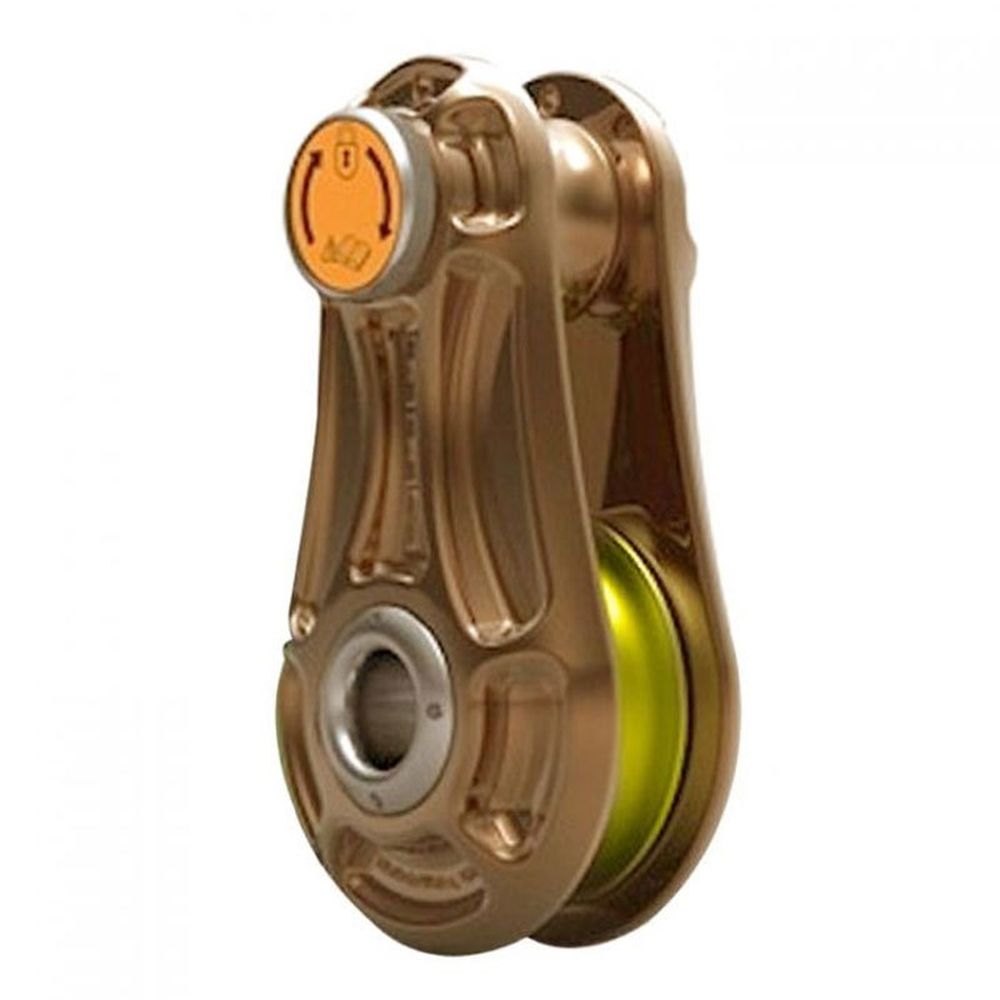

DMM Large Impact Forged Aluminum Arborist Rigging Block (3/4" Rope) IMB-L

SKU
DMM IMB L
DMM Large Impact Forged Aluminum Arborist Rigging Block (3/4" Rope) is designed for use in the tree care industry when loads are dropped into rigging with a considerable impact force. The combination of high quality materials and advanced production processes ensures a rope friendly, durable and robust product. During design each Impact Block has gone through a thorough dynamic and static testing regime, the end result is a highly functional product with an impressive strength to weight ratio. Rounded edges to cheekplates maintain low rope abrasion when rope is fed "unfair". The fairlead flares help maintain high working efficiency. Thrust surfaces increase tolerance to external loading of spindle and anchor pin. Its lightweight attachment sling facilitates hauling of block, sling and rope to the climber and helps with handling, in tree stowage and workshop storage. Direct connection to cordage, the anchor slings helps ensure correct neighbour component compatibility. High efficiency oilite bushings to reduce friction. Coloring follows EU WLL protocol and each block has an individual serial marking. Made in Wales, UK
$699.99
Shipping Weight 7.7 lbs.

In stock
MBS 300kN
WLL 60 kN
Maximum Rope Diameter 3/4" (20 mm)
Length 8.86" (225mm)
Width 4.72" (120mm)
Thickness 3.81" (97mm)
Weight 7.65 lbs. (3.47kg)

Technical Specification
CE certification to European Machinery Directive 2005
Conforms to EN12278:2007 and EN795:1996 B +A1:2000
Hot forged cheek plates in 6082-T6 aluminum for high strength to weight ratio
CNC machined from 6082-T6
Anodized to EN-12373-1:2001 Class I0EI Sealed for corrosion protection
Stainless Steel 303 anchor pin (IMB-S)
Efficient and robust Bronze self lubricating oilite bushings
6082-T6 aluminum alloy sheaves
