Item # BRC BLS 34

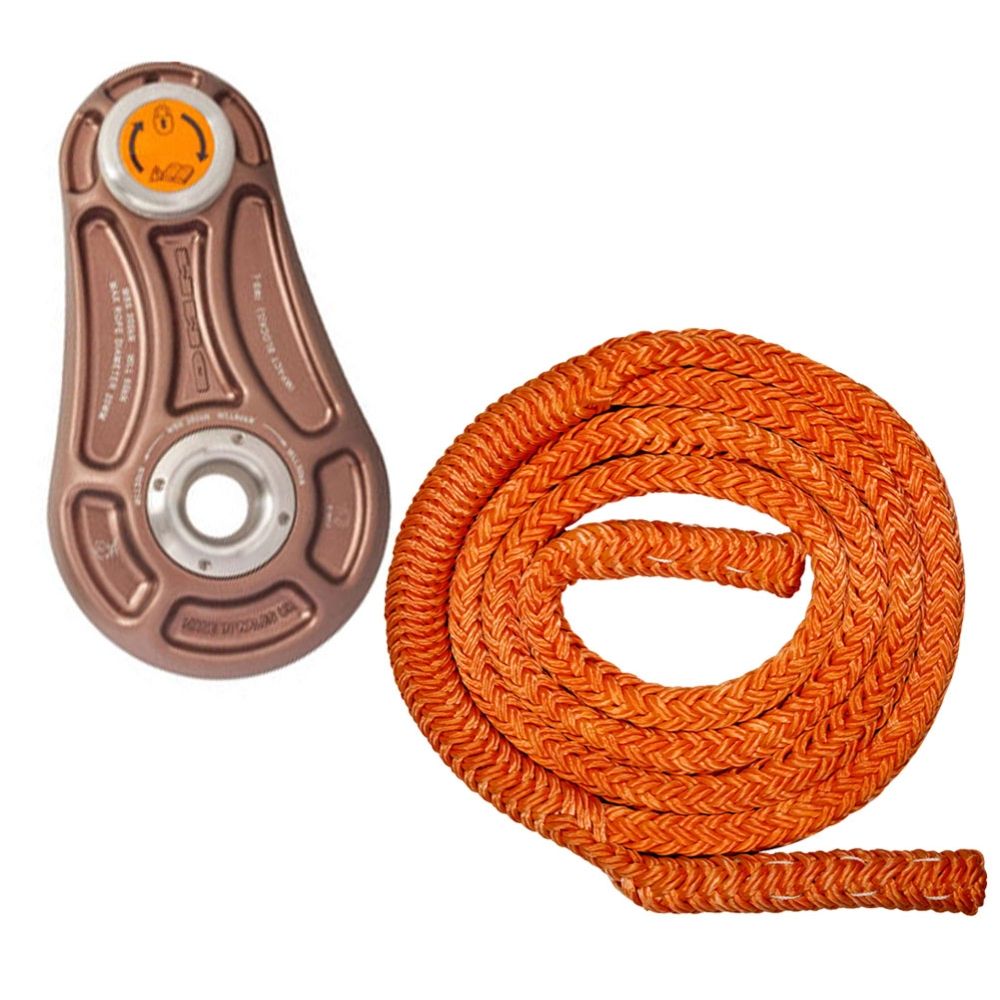

DMM Large Impact Aluminum Arborist Rigging Block (3/4" Rope) & Sling Combo
$949.99
In Stock
Professional DMM rigging block and sling combo from Baileys. The DMM Impact Block is one of the most durable, rope friendly rigging blocks made today. Designed for heavy use, this block is best used when coupled with an ArborMAX Tenex adjustable loopie sling. Loopie slings allow for knot-less rigging and can be used to secure the block in the top of a tree without having to tie a knot.
- SizeLarge
MBS 300kN
WLL 60 kN
Maximum Rope Diameter 3/4" (20 mm)
Length 8.86" (225mm)
Width 4.72" (120mm)
Thickness 3.81" (97mm)
Weight 7.65 lbs. (3.47kg)
Technical Specification
CE certification to European Machinery Directive 2005
Conforms to EN12278:2007 and EN795:1996 B +A1:2000
Hot forged cheek plates in 6082-T6 aluminum for high strength to weight ratio
CNC machined from 6082-T6
Anodized to EN-12373-1:2001 Class I0EI Sealed for corrosion protection
Stainless Steel 303 anchor pin (IMB-S)
Efficient and robust Bronze self lubricating oilite bushings
6082-T6 aluminum alloy sheaves
WLL 60 kN
Maximum Rope Diameter 3/4" (20 mm)
Length 8.86" (225mm)
Width 4.72" (120mm)
Thickness 3.81" (97mm)
Weight 7.65 lbs. (3.47kg)
Technical Specification
CE certification to European Machinery Directive 2005
Conforms to EN12278:2007 and EN795:1996 B +A1:2000
Hot forged cheek plates in 6082-T6 aluminum for high strength to weight ratio
CNC machined from 6082-T6
Anodized to EN-12373-1:2001 Class I0EI Sealed for corrosion protection
Stainless Steel 303 anchor pin (IMB-S)
Efficient and robust Bronze self lubricating oilite bushings
6082-T6 aluminum alloy sheaves
Specs
- SizeLarge
MBS 300kN
WLL 60 kN
Maximum Rope Diameter 3/4" (20 mm)
Length 8.86" (225mm)
Width 4.72" (120mm)
Thickness 3.81" (97mm)
Weight 7.65 lbs. (3.47kg)
Technical Specification
CE certification to European Machinery Directive 2005
Conforms to EN12278:2007 and EN795:1996 B +A1:2000
Hot forged cheek plates in 6082-T6 aluminum for high strength to weight ratio
CNC machined from 6082-T6
Anodized to EN-12373-1:2001 Class I0EI Sealed for corrosion protection
Stainless Steel 303 anchor pin (IMB-S)
Efficient and robust Bronze self lubricating oilite bushings
6082-T6 aluminum alloy sheaves
WLL 60 kN
Maximum Rope Diameter 3/4" (20 mm)
Length 8.86" (225mm)
Width 4.72" (120mm)
Thickness 3.81" (97mm)
Weight 7.65 lbs. (3.47kg)
Technical Specification
CE certification to European Machinery Directive 2005
Conforms to EN12278:2007 and EN795:1996 B +A1:2000
Hot forged cheek plates in 6082-T6 aluminum for high strength to weight ratio
CNC machined from 6082-T6
Anodized to EN-12373-1:2001 Class I0EI Sealed for corrosion protection
Stainless Steel 303 anchor pin (IMB-S)
Efficient and robust Bronze self lubricating oilite bushings
6082-T6 aluminum alloy sheaves
