Item # RP137

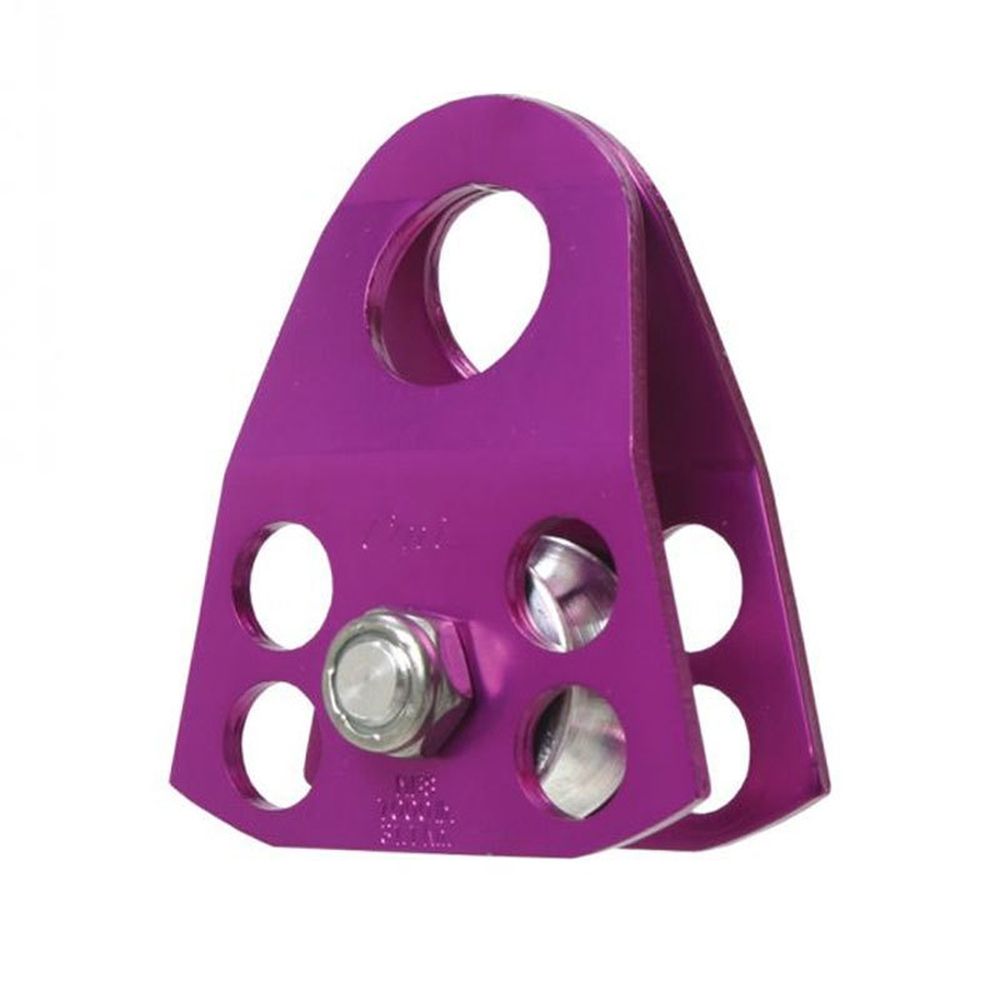

CMI Micro Prusik Pulley
$59.99
In Stock
CMI micro prusik pulley is essentially a standard micro pulley with wider cheek plates. These plates have a square edge for improved minding. The sideplates swing open to allow placement anywhere on the line. The aluminum cheeks have 7/8" hole for a carabiner. A double lock nut hold everything together on an aluminum axle. The aluminum sheave is 1-1/4" in diameter and held in place by a bronze bushing.
- ColorPurple
Length 3.00" (75mm)
Width 2.75" (70mm)
Thickness 1.0" (25mm)
Weight 3.2 oz (90g)
Sheave Diameter 1-1/4" (32mm)
Minimum Breaking Strength 7,000lbs (31kN)
Work Load Limit (10:1 ratio) 700 lbs. (310kg)
Maximum Rope Diameter 1/2" (13mm)
Efficiency n/r
Width 2.75" (70mm)
Thickness 1.0" (25mm)
Weight 3.2 oz (90g)
Sheave Diameter 1-1/4" (32mm)
Minimum Breaking Strength 7,000lbs (31kN)
Work Load Limit (10:1 ratio) 700 lbs. (310kg)
Maximum Rope Diameter 1/2" (13mm)
Efficiency n/r
Specs
- ColorPurple
Length 3.00" (75mm)
Width 2.75" (70mm)
Thickness 1.0" (25mm)
Weight 3.2 oz (90g)
Sheave Diameter 1-1/4" (32mm)
Minimum Breaking Strength 7,000lbs (31kN)
Work Load Limit (10:1 ratio) 700 lbs. (310kg)
Maximum Rope Diameter 1/2" (13mm)
Efficiency n/r
Width 2.75" (70mm)
Thickness 1.0" (25mm)
Weight 3.2 oz (90g)
Sheave Diameter 1-1/4" (32mm)
Minimum Breaking Strength 7,000lbs (31kN)
Work Load Limit (10:1 ratio) 700 lbs. (310kg)
Maximum Rope Diameter 1/2" (13mm)
Efficiency n/r
