Item # RP107

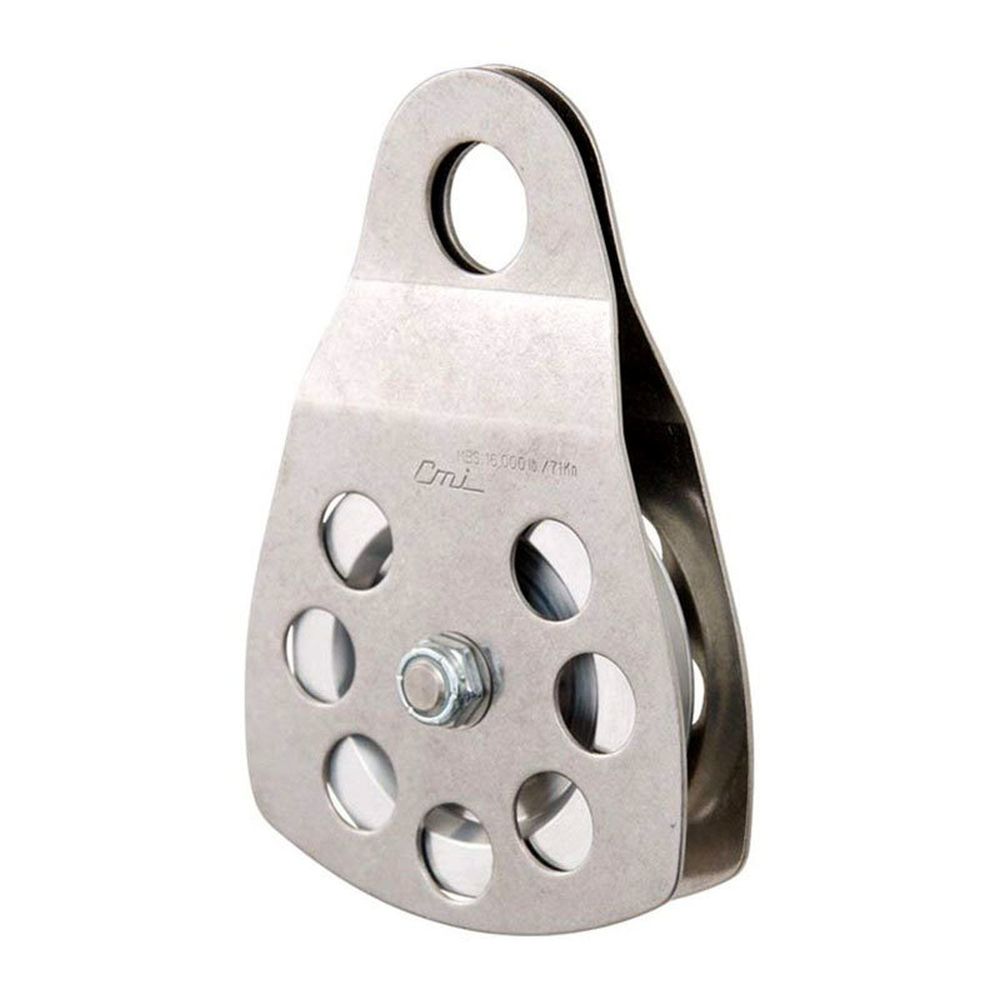

CMI 5/8" Stainless Steel Pulley (4" Sheave) RP107
$132.99
In Stock
CMI heavy duty pulleys are designed for the most demanding static line situations. The extra large rigging point accepts the largest carabiners and you can even double them up. These pulleys feature stainless steel axles and the aluminum sheaves are supported by sintered bronze bushings. The stainless steel cheeks feature the "wide skirt" sideplate design for maximum rope protection. Sideplates swing open to allow placement anywhere on the line. Accepts ropes up to 5/8" in diameter.
Length 7.5" (190mm)
Width 5.05" (125mm)
Thickness 1.25" (30mm)
Weight 1.8 lbs. (0.8kg)
Sheave Diameter 4.0" (100mm)
Minimum Breaking Strength 16,000lbs (71kN)
Work Load Limit (10:1 ratio) 1,600 lbs. (710kg)
Maximum Rope Diameter 5/8" (16mm)
Efficiency 93.7%
Width 5.05" (125mm)
Thickness 1.25" (30mm)
Weight 1.8 lbs. (0.8kg)
Sheave Diameter 4.0" (100mm)
Minimum Breaking Strength 16,000lbs (71kN)
Work Load Limit (10:1 ratio) 1,600 lbs. (710kg)
Maximum Rope Diameter 5/8" (16mm)
Efficiency 93.7%
Specs
Length 7.5" (190mm)
Width 5.05" (125mm)
Thickness 1.25" (30mm)
Weight 1.8 lbs. (0.8kg)
Sheave Diameter 4.0" (100mm)
Minimum Breaking Strength 16,000lbs (71kN)
Work Load Limit (10:1 ratio) 1,600 lbs. (710kg)
Maximum Rope Diameter 5/8" (16mm)
Efficiency 93.7%
Width 5.05" (125mm)
Thickness 1.25" (30mm)
Weight 1.8 lbs. (0.8kg)
Sheave Diameter 4.0" (100mm)
Minimum Breaking Strength 16,000lbs (71kN)
Work Load Limit (10:1 ratio) 1,600 lbs. (710kg)
Maximum Rope Diameter 5/8" (16mm)
Efficiency 93.7%
