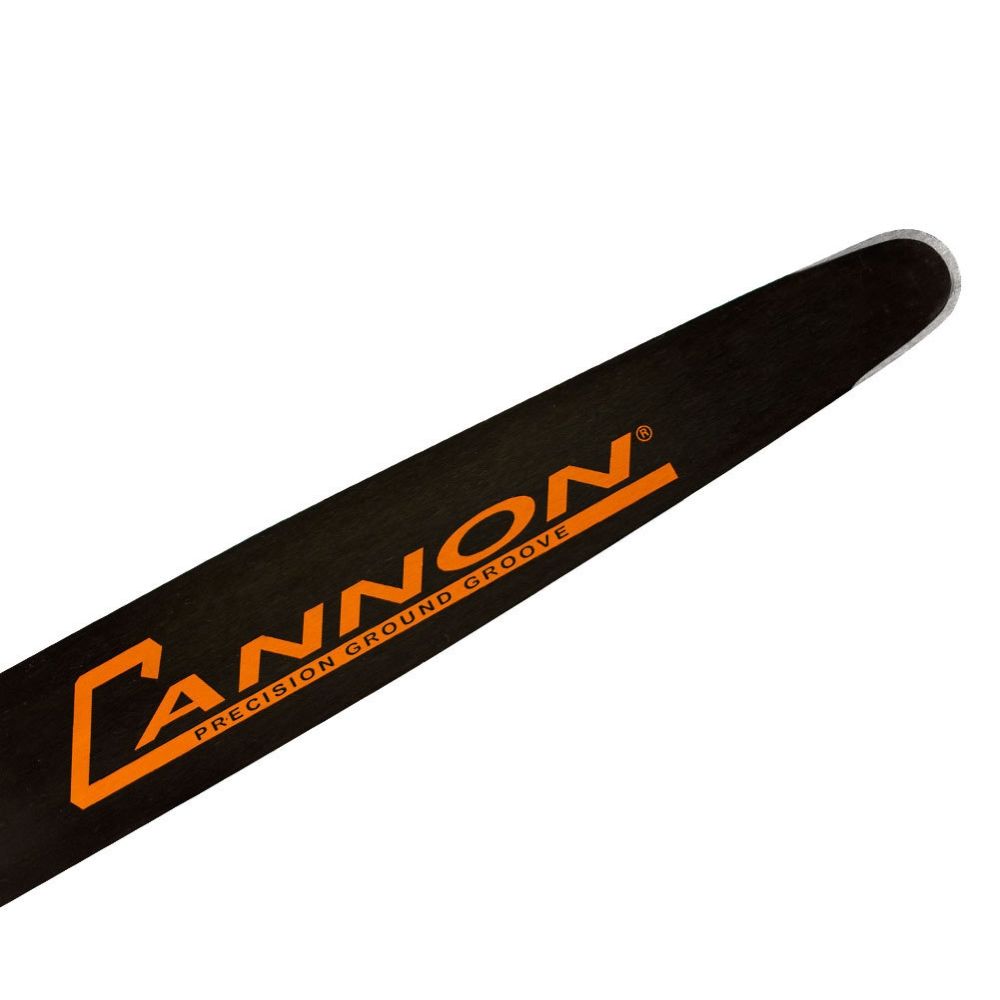

Cannon Carver 20" Chainsaw Carving Bar (Toonie Tip) CCT-H1-20-50

SKU
CCT H1 20 50

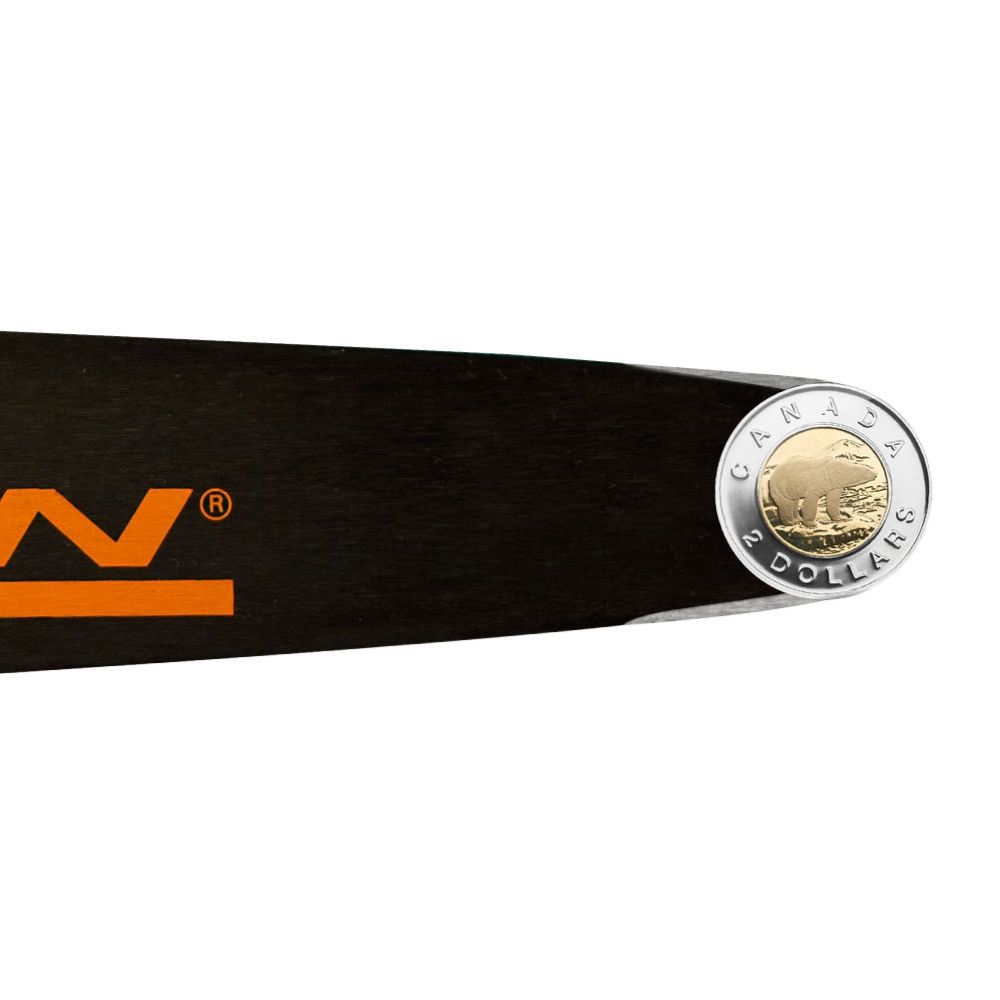

Professional chainsaw carving bar from Cannon. If you want to carve wood or ice with detail, these bars are a top choice. Every Cannon Carving Bar is individually hand crafted by skilled journeymen and put through rigorous quality control checks prior to packaging. Cannon Carvers are constructed with custom alloy steel that is cold rolled, heat treated, annealed, stress relieved and surface ground. This provides the best possible characteristics of wear resistance, strength, durability, straightness and elasticity. The tip is reinforced with a custom cobalt alloy providing even more endurance. This bar has a small nose (1-3/8"), which is about the size of a Canadian 2 dollar coin (Known as a Toonie), hence the name. This small nose allows you to do detail work, especially with 1/4" pitch carving chains. These bars will also work fine with .325" and 3/8" chainsaw chains, but they don't cut as smooth as 1/4" pitch carving chain.
$209.99
Shipping Weight 2.0 lbs.

In stock
More Information
Length 20" (50cm)
Gauge .050" (1.3mm)
Bar Mount H1 (D009)
Nose Diameter 1-3/8" (Toonie Tip)
Recommended Pitch 1/4", .325", 3/8" Low Profile (Picco)
Drive Link Count* 103 (1/4" Pitch), 79 (.325" Pitch), 70 (3/8" Low Profile)
Weight 2.0 lbs (0.9kg)
*Important Note Drive link counts can vary based on the chainsaw model you are using. Many chainsaw drive sprockets must also be converted if you wish to run the 1/4" pitch carving chain.
This Item Fits the Following:

Dolmar PS-6400, PS-6400 H, PS-6400 W, PS-7300, PS-7300 H, PS-7300 W, PS-7310, PS-7300 H, PS-7310 W, PS-7900, PS-7900 H, PS-7900 W, PS-7910, PS-7910 H, PS-7910 W, PS-9000, PS-9010, PS-9010F
Efco 181 (After Aug 07), MT 7200, MT 8200
Husqvarna 570, 1100 CD, 162, 181, 2100 CD, 2101, 272 XP, 298, 3120 XP, 266 XP, 268, 185, 160, 281, 362 (9mm Studs), 371 XP, 372 XP, 380, 385 XP, 390 XP, 394 XP, 395 XP, 365, 480 CD, 70, 562 XP, 575 XP, 66, 77, 65, 576 XP, 61, 285, 288 XP, 465, 465 Rancher
Jonsered 625, 630, 670, 2065, 2071, 2077, 2083, 2094, 2095, 2165, 2171, 2186, CS 2188, CS 2166, CS 2172, Ripping Mill, CS 2165, CS 2171, CS 2186
Makita DCS6401, DCS6800, DCS7301, DCS7901, DCS9000, DCS9010FL
Partner 550, 650, 1655, 2055, 7000, P-100, P-55, P-65, P-70, P-85, R-11, R-12, R-14, R-16, R-17, R-18, R-19, R-20, R-21, R-22, R-23, R-30, R-35, R-40, R-416, R-420, R-421, R-435, R-440, S-50, S-55, S-65
Poulan/PoulanPRO 425, 445, 475, 505, PRO415
Shindawa (SDK) 550, 575, 577, 680, 695, 757
Solo 603, 662, 665, 667, 670, 675, 680, 681, 690, 694
