Cannon Carver 16

Cannon Carver 16" Chainsaw Carving Bar (Quarter Tip ) CCQ-H1-16-50

Cannon Carver 16

Cannon Carver 16" Chainsaw Carving Bar (Toonie Tip) CCT-C1-16-50

Cannon Carver 16" Chainsaw Carving Bar (Quarter Tip ) CCQ-S1-16-50

SKU
CCQ S1 16 50

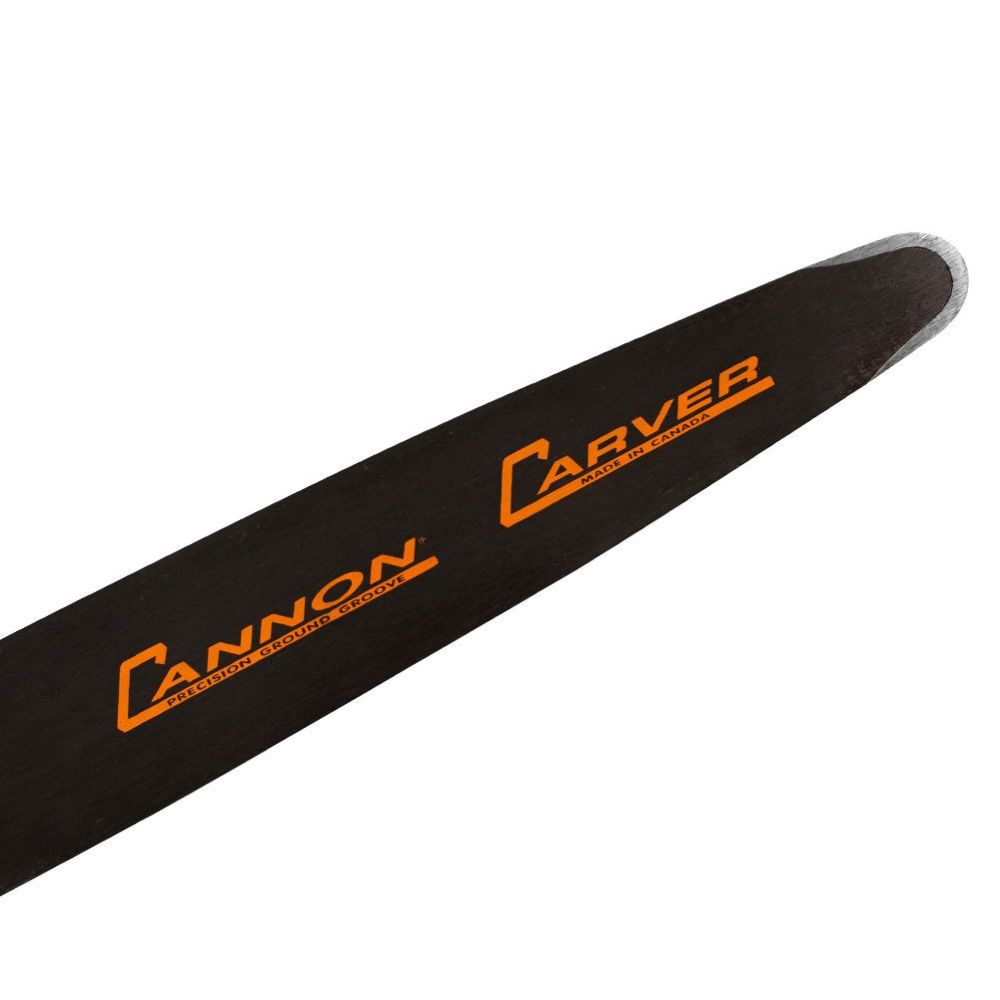

Professional chainsaw carving bar from Cannon. If you want to carve wood or ice with detail, these bars are a top choice. Every Cannon Carving Bar is individually hand crafted by skilled journeymen and put through rigorous quality control checks prior to packaging. Cannon Carvers are constructed with custom alloy steel that is cold rolled, heat treated, annealed, stress relieved and surface ground. This provides the best possible characteristics of wear resistance, strength, durability, straightness and elasticity. The tip is reinforced with a custom cobalt alloy providing even more endurance. This bar has a narrow nose (15/16"), which is about the size of a quarter. This allows you to do detail work, especially with 1/4" pitch carving chains. These bars will also work fine with .325" and 3/8" Low Profile chainsaw chains, but they don't cut as smooth as 1/4" pitch carving chain.
$169.99
Shipping Weight 1.5 lbs.

In stock
More Information
Length 16" (40cm)
Gauge .050" (1.3mm)

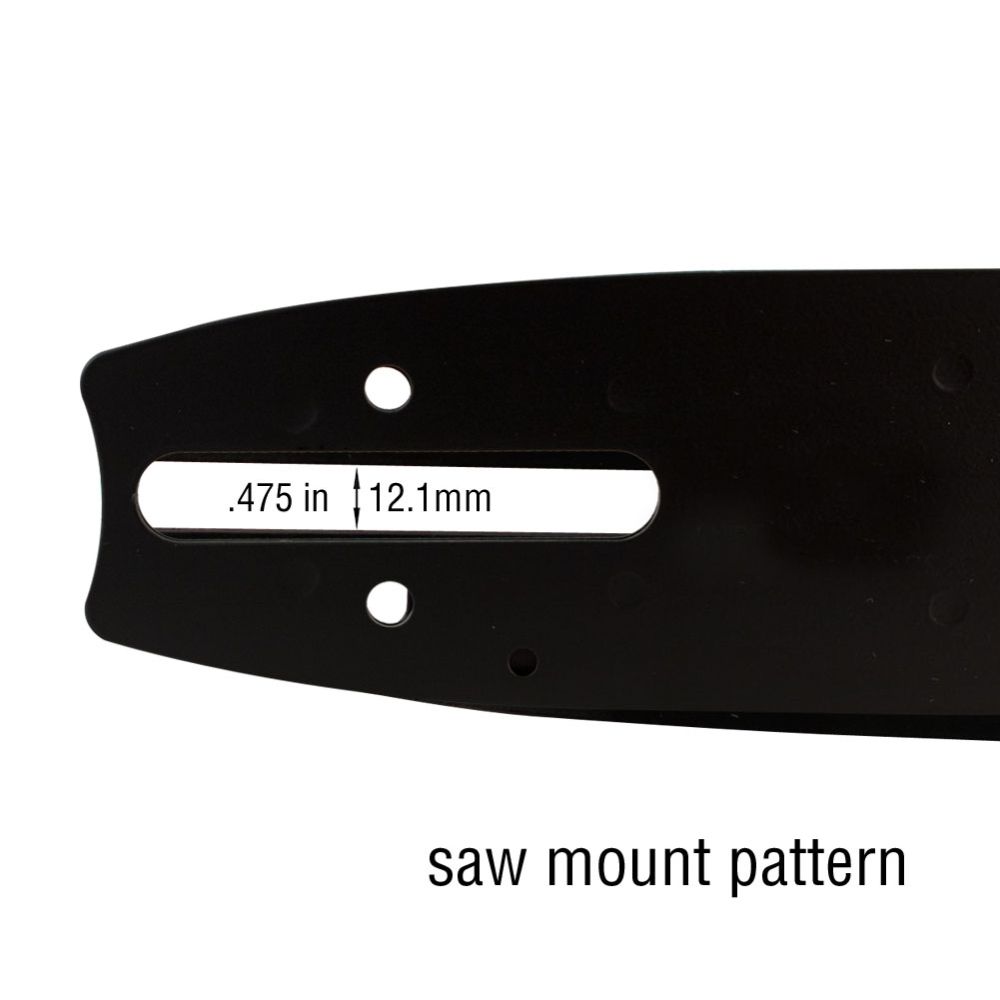

Bar Mount S1 (D025)

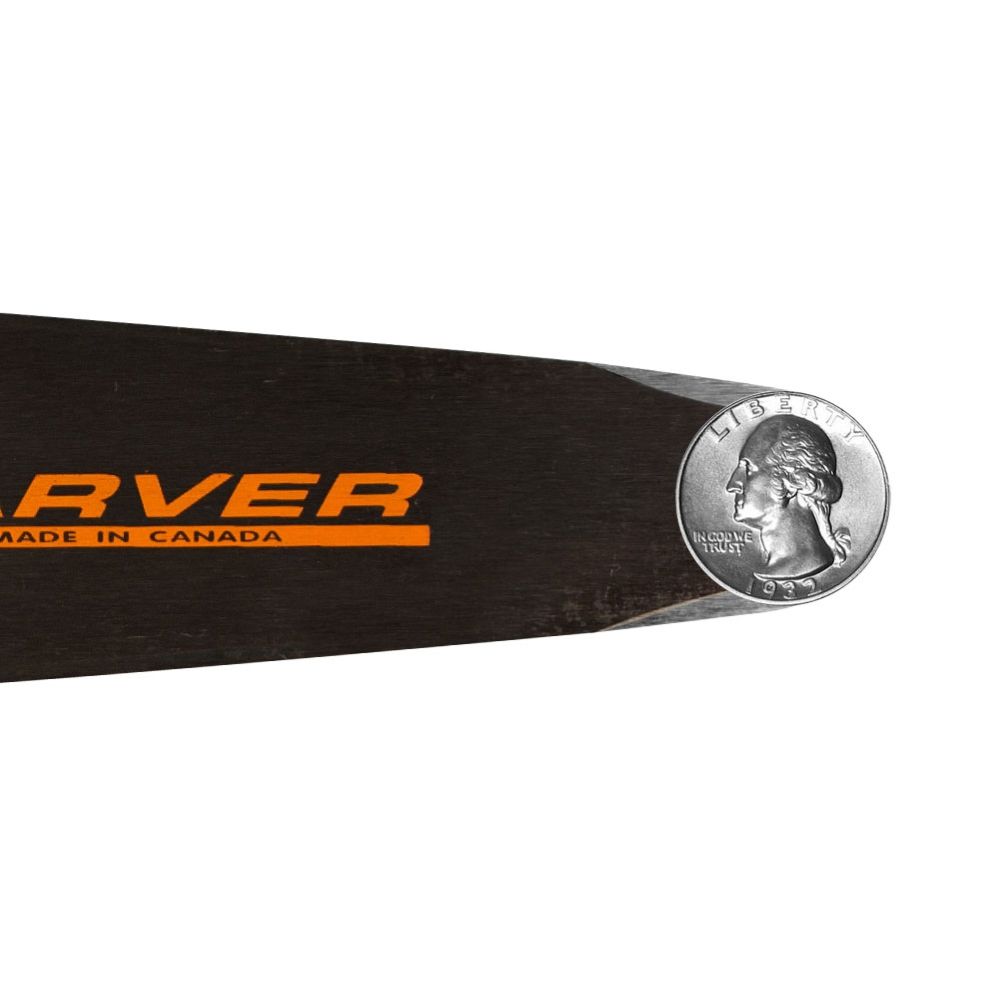

Nose Diameter 15/16" (Quarter Tip)
Recommended Pitch 1/4", .325", 3/8" Low Profile (Picco)
Drive Link Count* 85/86 (1/4" Pitch), 66 (.325" Pitch), 58 (3/8" Low Profile)
Weight 1.8 lbs (0.8kg)
*Important Note Drive link counts can vary based on the chainsaw model you are using. Many chainsaw drive sprockets must also be converted if you wish to run the 1/4" pitch carving chain.
This Item Fits the Following:

Stihl 024, 028, 030, 034, 038, 041, 044, 048, MS 291, MS 261, MS 461, MS 460 R, 026, 029, 032, 036, 039, 042, 046, 045, 056, 066, MS 440, MS 390, MS 361, MS 271, MS 640, MS 311, MS 341, MSE 220 Electric, 031, 040, E 15 Electric, 064, E 220 Electric, E 20 Electric, MS 661, MS 260, MS 270, MS 280, MS 290, MS 310, MS 340, MS 360, MS 362, MS 380, MS 391, MS 441, MS 460, MS 650, MS 660
