Item # CSB S1 24 50 DL 3

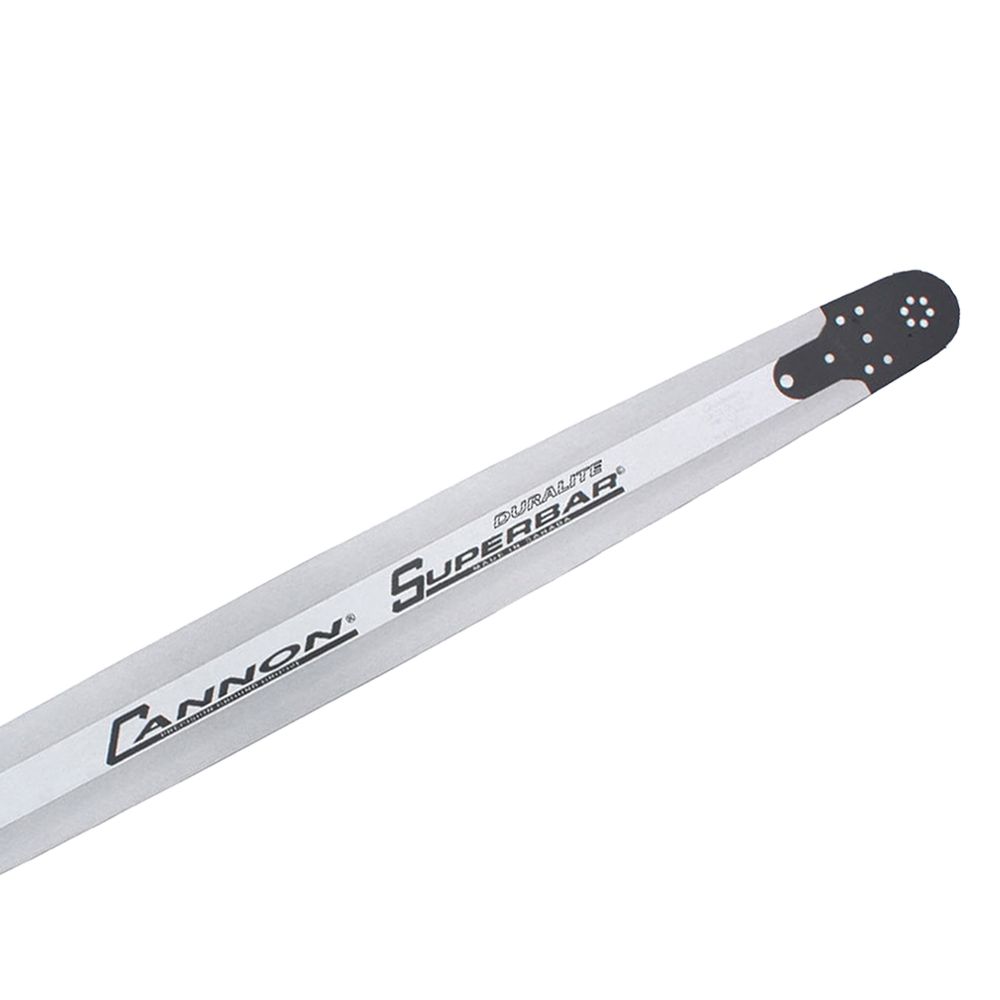

Cannon 24" Duralite Chainsaw Bar (84 Drive Links) CSB-S1-24-50-DL-3
$280.99
In Stock
The new Cannon DuraLite SuperBar is actually made from a virtually completed SuperBar. After the bar has been grooved and the rails have been flame hardened, we eliminate weight by milling out pockets on either side of the SuperBar, leaving a steel core in the center for strength. The center section is then perforated with holes. This method of construction is based on the same principal that you would see in an I-beam. We then use a special adhesive which not only bonds the steel to two flexible aluminium inserts, one on each side of the bar, but also creates a chemical bond or weld between the two inserts. The new DuraLite SuperBar remails ridged and stiff, has the same quality characteristics as the traditional SuperBar, but weighs about 20% less.
Needed Adapters
Most Husqvarna Chainsaws CBW 20030 (#10030)
Husqvarna 562XP CBW 20020
Husqvarna 3120XP CBW 20090
Needed Adapters
Most Husqvarna Chainsaws CBW 20030 (#10030)
Husqvarna 562XP CBW 20020
Husqvarna 3120XP CBW 20090
- Length24" (60cm)
- Pitch3/8" (.375")
- Gauge.050" (1.3mm)
- Chain Size84 Drive Links
- Drive Link Count84 Drive Links
- Tooth Count11 Teeth
- Bar MountS1 (D025)
Specs
- Length24" (60cm)
- Pitch3/8" (.375")
- Gauge.050" (1.3mm)
- Chain Size84 Drive Links
- Drive Link Count84 Drive Links
- Tooth Count11 Teeth
- Bar MountS1 (D025)
Fitment
This Item Fits the Following:
| Stihl | 024, 028, 030, 034, 038, 041, 044, 048, MS 291, MS 261, MS 461, MS 460 R, 026, 029, 032, 036, 039, 042, 046, 045, 056, 066, MS 440, MS 390, MS 361, MS 271, MS 640, MS 311, MS 341, MSE 220 Electric, 031, 040, E 15 Electric, 064, E 220 Electric, E 20 Electric, MS 661, MS 260, MS 270, MS 280, MS 290, MS 310, MS 340, MS 360, MS 362, MS 380, MS 391, MS 441, MS 460, MS 650, MS 660 |
