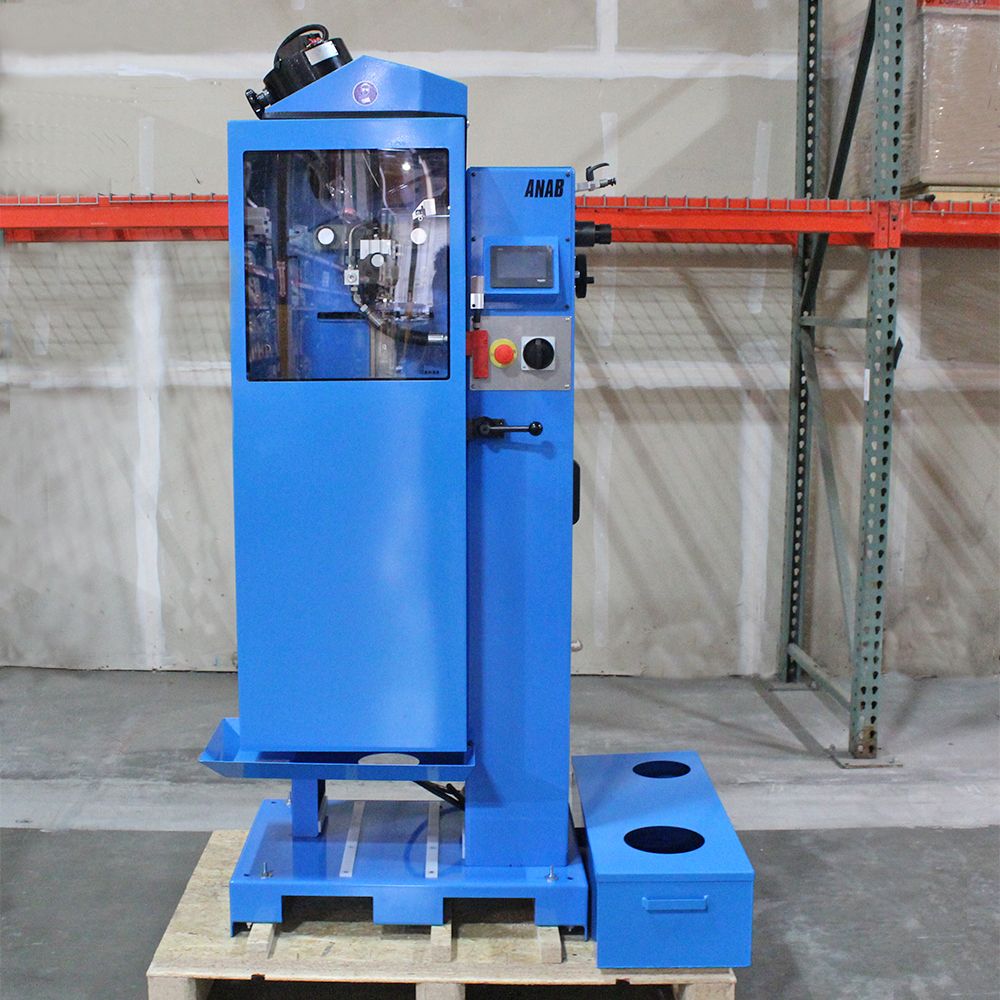

ANAB X3 Automated Water Cooled Chain Grinder
Item # ANAB X3 1758

ANAB X3 Automated Water Cooled Chain Grinder

In Stock
ANAB water cooled sharpeners are the finest production saw chain sharpeners made today. The ANAB X3 is a fully automatic sharpening machine designed for all standard chainsaw and harvester saw chains up to .404" pitch. These sharpeners use ANAB's exclusive water cooled system when grinding, which means the chain cutter retains its sharpness for up to 50% longer while cutting as compared to traditional dry grinding. ANAB grinders sharpen the saw chain cutter and raker simultaneously with a CNB grinding wheel, so the wheel doesn't need to be replaced or reshaped as often as a standard aluminum oxide wheel. ANAB grinders use a simple touchscreen control panel, which is easy to operate. ANAB grinders are perfect for large operators running multiple crews or processing heads, as well as sharpening businesses. For more information, call and ask for an Industial Salesperson.

    Electrical Requirements 220V, Single Phase
    Certification UL Certified
    Drive Motor 1HP (0.75kw)
    Control System PLC based, fully automatic or manual step-by-step adjustment. Sensor for cutting teeth, always sharpens in the correct direction
    Types of Chain All Standard Sequence Saw Chain (No Skiptooth)
    Sharpening Angles Adjustable from 0-35 Degrees
    Pneumatic Requirements Standard 60 psi

    Electrical Requirements 220V, Single Phase
    Certification UL Certified
    Drive Motor 1HP (0.75kw)
    Control System PLC based, fully automatic or manual step-by-step adjustment. Sensor for cutting teeth, always sharpens in the correct direction
    Types of Chain All Standard Sequence Saw Chain (No Skiptooth)
    Sharpening Angles Adjustable from 0-35 Degrees
    Pneumatic Requirements Standard 60 psi
