Item # JMS 155

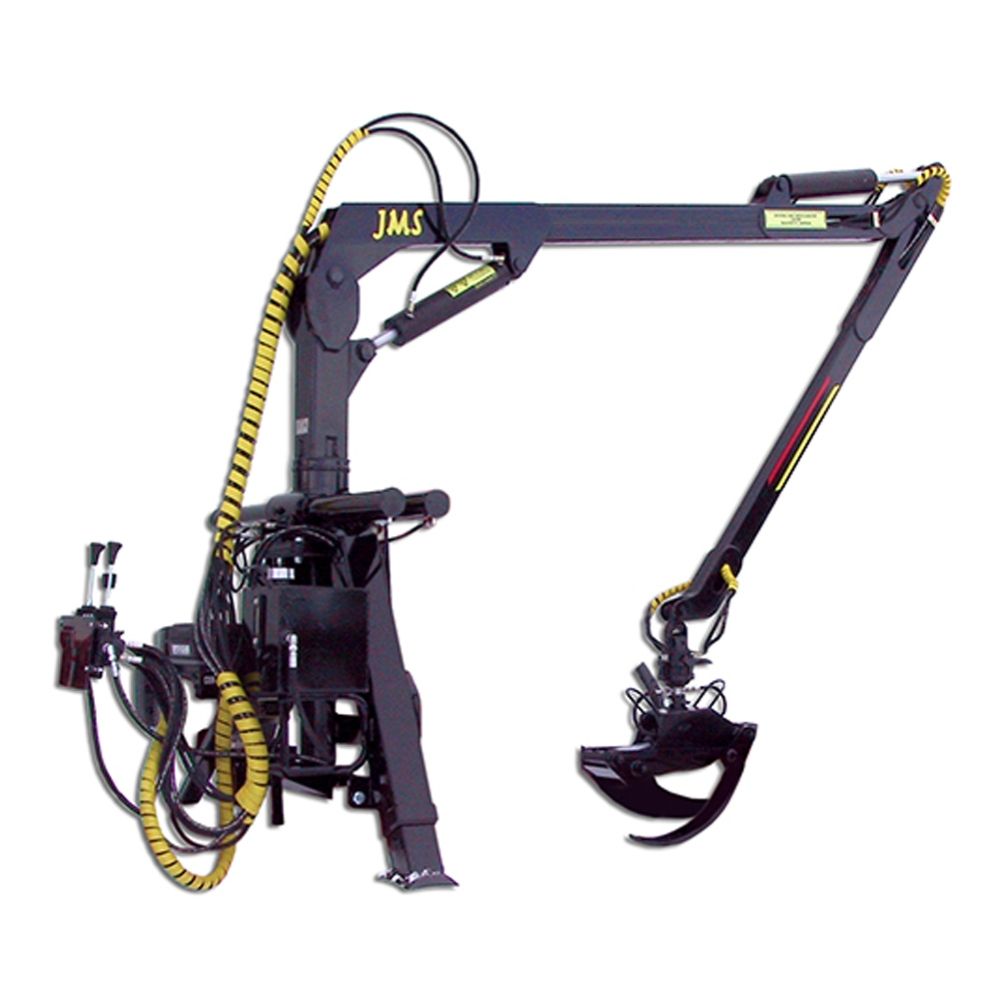

AM Machinery 15'5 Hydraulic Grapple Loader - JMS155

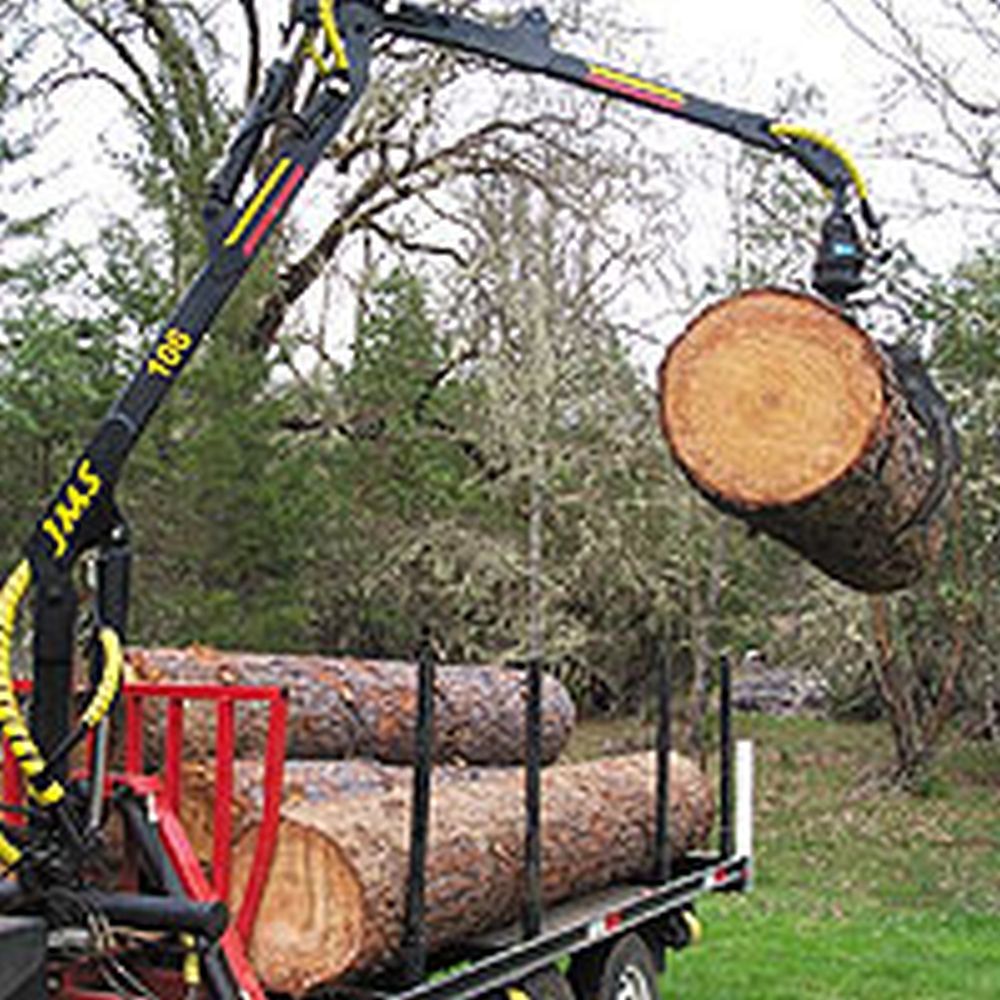

Hydraulic Grapple loaders are popular options for road trailers. They can easily manipulate logs and other objects with great precision. All grapples have a 360 boom rotation and hydraulic telescopic stabilizers. Grapple loaders come attached to log trailers if they are ordered together. You can also purchase the grapple loader separately and attach it to the carrier of your choice. Grapples and rotators are available separately also.
Boom Rotation 360 Degrees
Crane Reach 155"
Maximum Opening Grapple 48"
Minimum Opening Grapple 3"

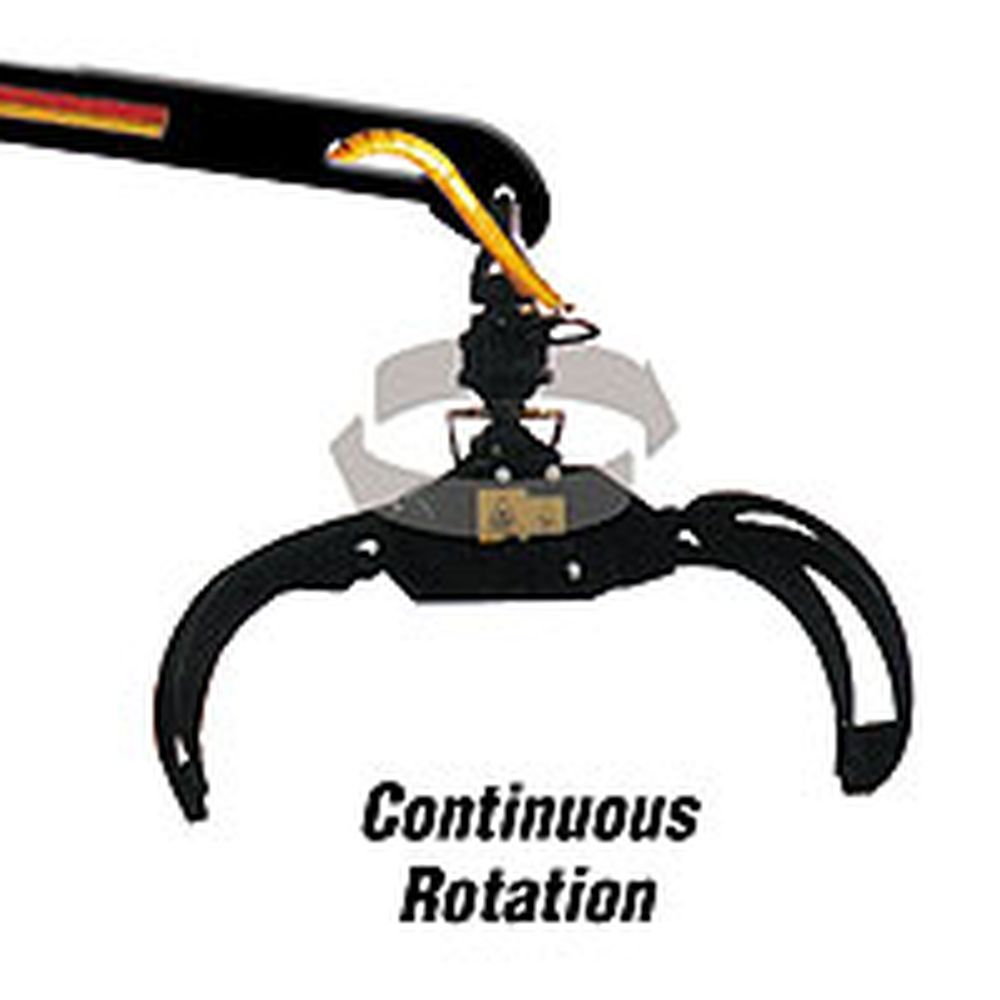

Grapple Rotation Continuous
Lift Capacity At Mid-Boom 2,600 lbs
Lift Capacity At Max-Boom 1,400 lbs
Hydraulic Stabilizers Telescopic
Weight of Stab, Grap, Rot, Arm 1,850 lbs
Crane Reach 155"
Maximum Opening Grapple 48"
Minimum Opening Grapple 3"
Grapple Rotation Continuous
Lift Capacity At Mid-Boom 2,600 lbs
Lift Capacity At Max-Boom 1,400 lbs
Hydraulic Stabilizers Telescopic
Weight of Stab, Grap, Rot, Arm 1,850 lbs
Specs
Boom Rotation 360 Degrees
Crane Reach 155"
Maximum Opening Grapple 48"
Minimum Opening Grapple 3"
Grapple Rotation Continuous
Lift Capacity At Mid-Boom 2,600 lbs
Lift Capacity At Max-Boom 1,400 lbs
Hydraulic Stabilizers Telescopic
Weight of Stab, Grap, Rot, Arm 1,850 lbs
